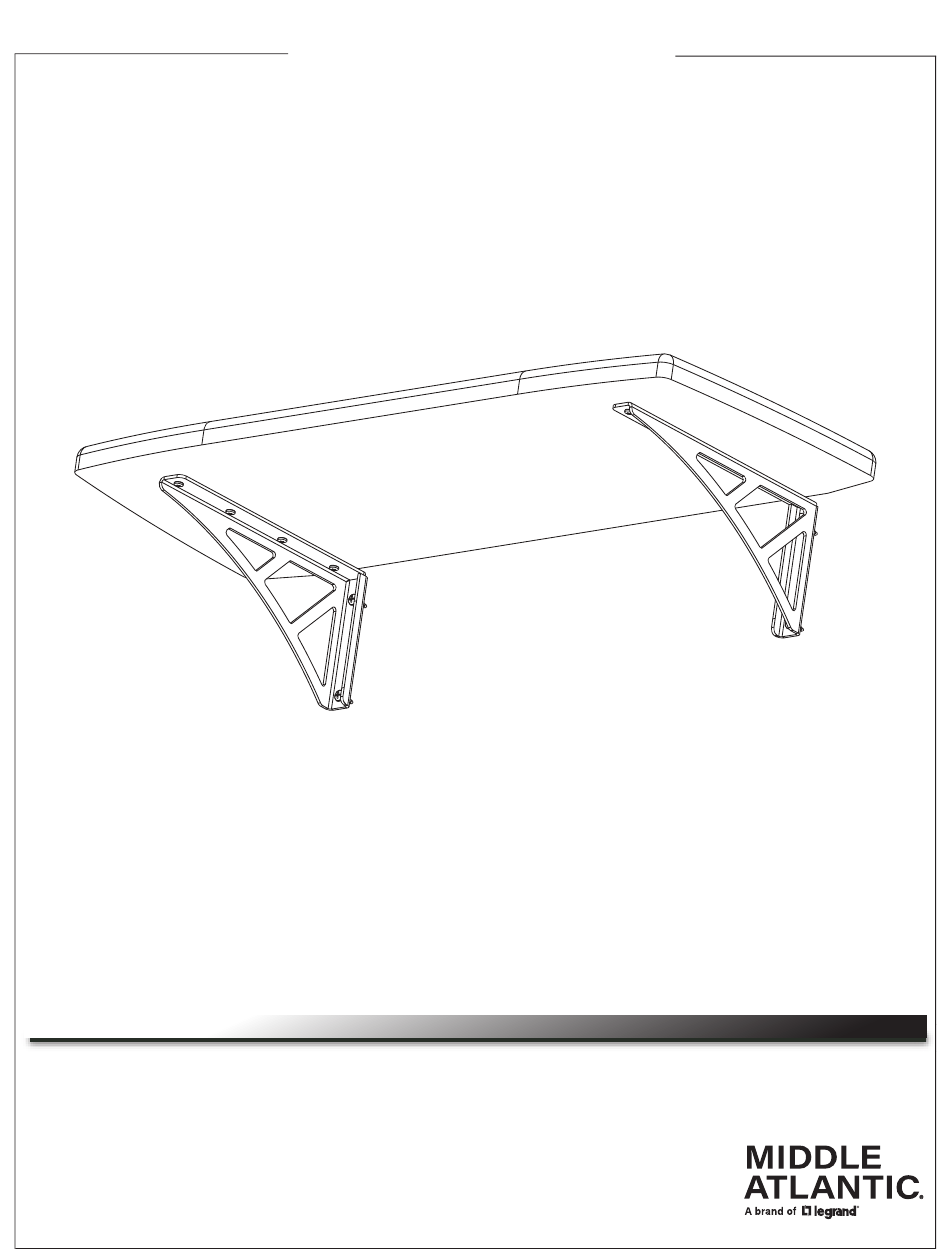

- Page 1 Instruction Sheet FlexView Series Conferencing Cart Front Shelf Option (FVS-HS-FRTSHLF-WH) THANK YOU Thank you for purchasing a FlexView Conferencing Cart Front Shelf option. Please read these instructions thoroughly before installing or assembling this product. 100-00058 Rev A...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS • Read these instructions. • Heed all warnings. • Clean only with dry cloth. • Keep these instructions. • Follow all instructions. • Only use attachments/accessories specified by the manufacturer. DANGER HAZARDOUS VOLTAGE: The lightning flash with the arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 Shelf Screw Front Shelf (Brackets Pre-assembled) NOTE: • To order more hardware, contact support at av.support@legrand.com or (866) 977-3901. • Additional hardware is included that may not be required for your installation. REQUIRED TOOLS • Protective Eyewear • #2 Phillips WARNING: Use tools with caution and follow all •...
- Page 4 INSTALLING YOUR FLEXVIEW CONFERENCING CART FRONT SHELF OPTION 1. Use a flat head screwdriver and carefully pry the plugs from each of the 4 holes on the lower front panel of your cart as shown. (FIGURE A) Carefully pry the plugs from these 4 holes on the lower front panel.
- Page 5 Factory Distribution United States: New Jersey, California, and Illinois | Canada: Ontario | The Netherlands: Weert At Legrand AV Inc. we are always listening. Your comments are welcome. Legrand AV is an ISO 9001 and ISO 14001 Registered Company. Page 5...
