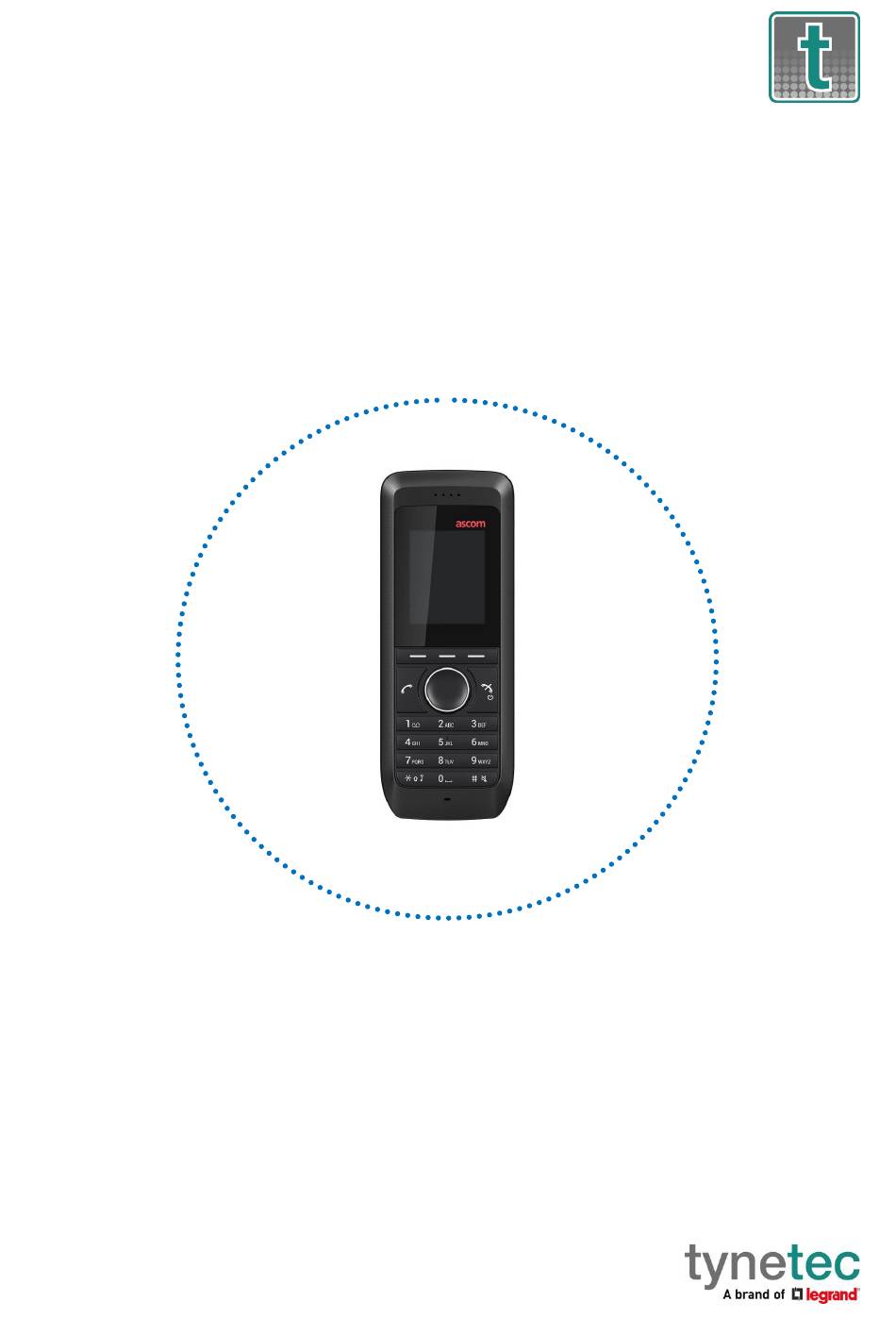

Advent XT2
Assisted Living Call Management System
_________________________________________________________________________________________________
Tynetec, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
T: +44 (0)
1670 352 371 www.tynetec.co.uk
_______________________________________________________________________________________________________________________
Trusted Technology
Caring for People
ascom
Installation Manual
d43
Tynetec operates a policy of continual product improvement and
reserves the right to modify the specification of its products.
If any variation to the details in this document are suspected please
IP-DECT
contact Tynetec's Technical Support.
Doc No. FM0854 issue 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tynetec Advent XT2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND Tynetec Advent XT2

Summary of Contents for LEGRAND Tynetec Advent XT2

  • Page 1 If any variation to the details in this document are suspected please contact Tynetec’s Technical Support. Tynetec, a business unit of Legrand Electric Ltd Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF. T: +44 (0) 1670 352 371 www.tynetec.co.uk...

  • Page 2: Table Of Contents

    CONTENTS Section Topic Page Product Overview Important Safety Instructions Regulatory Information Maintenance & Care IP-DECT Overview Related Documentation Site Wiring Requirements Ascom d43/d63 IP-DECT Handsets Ascom d43/d63 IP-DECT Handset Chargers Ascom IPBS2 IP-DECT Access Points Matrix NENX IP50 PBX IP-DECT System Installation IP-DECT System Commissioning Specification: Ascom d43 IP-DECT Handset Specification: Ascom d63 IP-DECT Handset...

  • Page 3: Product Overview

    1. PRODUCT OVERVIEW The ascom IP-DECT system is a reliable wireless communication solution that combines Voice over IP (VoIP) with Digitally Enhanced Cordless Telephony (DECT) technology. It offers enterprise-grade telephony over secure dedicated frequency bands. • IP (Internet Protocol) - universal standard for inter-networking that maximizes scalability and interoperability.

  • Page 4: Important Safety Instructions

    2. SAFETY INSTRUCTIONS Read and understand these instructions before use. Refer to the Manufacturers installation and user guides for more information (see section 6 of this manual). Keep all instructions for future reference. Take care when working on step ladders during installation or service. Isolate the mains supply before removing covers.

  • Page 5: Regulatory Information

    3. REGULATORY INFORMATION This symbol on the product indicates it complies with all relevant EU Directives as required by law e.g. Radio & Telecommunication Terminal Equipment (RTT&E), Safety of Information Technology Equipment (LVD), Electro Magnetic Compatibility (EMC) and Restriction of Hazardous Substances RoHS. See the Specification for each individual product in section 14 onwards for relevant Approvals.

  • Page 6: Ip-Dect Overview

    5. IP-DECT OVERVIEW The maximum theoretical range for any IP-DECT system is 500 metres under ideal conditions, in practice the range will rarely exceed 300 metres due to reflections from nearby buildings, trees, water, etc. Obstructions inside buildings such as walls and floors will reduce the range, some construction materials such as foil backed plasterboard, reinforced concrete or stone walls will reduce range further.

  • Page 7: Related Documentation

    6. RELATED DOCUMENTATION This manual provides general information regarding the installation of the ascom IP-DECT system. For more detailed information refer to the ascom installation and user guides. ASCOM DOCUMENTS You can request copies of the ascom documents listed below from Tynetec’s customer support; •...

  • Page 8: Site Wiring Requirements

    7. SITE WIRING REQUIREMENTS ASCOM IP-DECT SYSTEM ascom ascom WALL SOCKET CONNECTION IP-DECT Access Points should be connected to the PoE Ports on the Ethernet Switch using Cat5e RJ45 wall sockets and Cat5e Patch Leads. Wire between the wall sockets using Cat5e Ethernet U/UTP cable (Belden Type: 1583E.00B100) or equivalent (Tynetec Part No.

  • Page 9: Ascom D43/D63 Ip-Dect Handsets

    8. ASCOM d43/d63 IP-DECT HANDSETS Durable, robust, and feature rich ascom d43/d63 IP-DECT handsets are designed to enable healthcare personnel to be mobile while still within quick reach in critical situations. The higher spec d63 handset is protected against splashing water making it suitable for use in wet room environments. ascom d43 (Tynetec ZXT571) Headset Connector...

  • Page 10: Ascom D43/D63 Ip-Dect Handset Chargers

    9. ASCOM d43/d63 IP-DECT HANDSET CHARGERS Each ascom d43/d63 IP-DECT handset is supplied with a desktop charger and a plug-top mains adapter. Select the UK AC plug from the changeable plugs provided and simply clip into place on the adapter. ascom DC3-UABA (Tynetec W03035) Mains Adapter for...

  • Page 11: Ascom Ipbs2 Ip-Dect Access Points

    10. ASCOM IPBS2 IP-DECT ACCESS POINTS Ascom IP-DECT Access Points are a compact design with an integrated antenna. They connect to the Matrix NENX IP50 PBX via LAN and support Power over Ethernet (PoE) for ease of installation, they require no additional cabling to support telephony.
  • Page 12 10. ASCOM IPBS2 IP-DECT ACCESS POINTS IP-DECT Access Points can be fixed to a wall or a ceiling using the plugs, screws and mounting bracket included. Alternatively, a flexible metal band or strap (not included) can be used to fix to a pole or beam. IP-DECT Access Points can be installed vertically or horizontally –...

  • Page 13: Matrix Nenx Ip50 Pbx

    11. MATRIX NENX IP50 PBX The Matrix NENX IP50 PBX provides 4 CO (TWT) analogue trunks for connection to the XT2 system and the outside world, an Ethernet port for up to 50 IP extensions (IP-DECT handsets) and 2 analogue extensions for standard (SLT) desk telephones.

  • Page 14: Ip-Dect System Installation

    12. IP-DECT SYSTEM INSTALLATION Using the Matrix NENX IP50 PBX and a 16 Port (8 PoE) Ethernet Switch the IP-DECT system can expand up to 8 IP-DECT Access Points and 50 IP-DECT handsets. For larger installations requiring more than 8 Access Points a 24 Port PoE Ethernet Switch should be used for up to 24 Access Points.
  • Page 15 12. IP-DECT SYSTEM INSTALLATION 16 PORT ETHERNET SWITCH CONNECTIONS The 16 Port Ethernet Switch provides 8 PoE Ports for the IP-DECT Access Points. POWER - connect to the mains supply (or a battery backed output on the optional UPS) via the in-line 48V DC PSU module provided.

  • Page 16: Ip-Dect System Commissioning

    13. IP-DECT SYSTEM COMMISSIONING This section describes the visual inspection and tests that must be performed after completing the installation and setup of the IP-DECT system. The purpose of the visual inspection and tests is to verify that the installation has resulted in a correctly functioning system. If it appears that a part is malfunctioning while the system is installed correctly (that is, no cabling faults, no configuration faults), refer to the Troubleshooting (section 10) of the ascom IPBS2 installation manual for fault finding.

  • Page 17: Specification: Ascom D43 Ip-Dect Handset

    14. SPECIFICATION: ASCOM d43 IP-DECT HANDSET d43 IP-DECT Handset Manufacturer/Model No. ascom DH6-ABAA (d43 Talker) Tynetec Bundle Part No. ZXT571 (includes d43 handset, charger & power supply) DECT Output Power 10mW max DECT Security EN 300 444 Battery Type Li-ion 3.7V 650mAh 2.4Wh (Tynetec Part No. W03052) Discharge/Charge Cycles >=65% capacity left after 500 full charge/discharge cycles Speech Time...

  • Page 18: Specification: Ascom D63 Ip-Dect Handset

    15. SPECIFICATION: ASCOM d63 IP-DECT HANDSET d63 IP-DECT Handset Manufacturer/Model No. ascom DH7-AAAA (d63 Talker) Tynetec Bundle Part No. ZXT572 (includes d63 handset, charger & power supply) DECT Output Power 10mW max DECT Security EN 300 444 Battery Type Li-polymer 3.7V 920mAh 3.4Wh (Tynetec Part No. W03053) Discharge/Charge Cycles >=80% capacity left after 400 full charge/discharge cycles Speech Time...

  • Page 19: Specification: Ascom D43/D63 Desktop Charger & Psu

    16. SPECIFICATION: ASCOM d43/d63 DESKTOP CHARGER & PSU Desktop Charger Supplier/Model No. ascom DC3-UABA Tynetec Part No. W03035 Colour Black Enclosure Desktop design, indoor use only Dimensions 58mm x 95mm x 95mm (HxWxD) Weight 170 grams Power Supply Manufacturer Model No. Phihong PSAC050R-050L6 Safety Approvals CE, RCM, cUL/UL, CB...

  • Page 20: Specification: Ascom D43/D63 Charging Rack & Psu

    17. SPECIFICATION: ASCOM 6 BAY d43/d63 CHARGING RACK Charging Rack Manufacturer/Model No. ascom CR3-ABAC Tynetec Part No. W03036 EU Directives R&TTE-1999/5/EC and ErP 2009/125/EC Safety Approvals EN 60950-1 EMC Approvals EN 55022 (Class B), EN 301 489-6 Features No. of Handsets per Rack 6 max (d43/d63 handsets only) Charge Status Indicated in handset display...

  • Page 21: Specification: Ascom Ipbs2 Ip-Dect Access Point

    18. SPECIFICATION: ASCOM IPBS2 IP-DECT ACCESS POINT IP-DECT Access Point Manufacturer/Model ascom IPBS2-HC Tynetec Part No. ZXT570 EU Directives 1995/5/EC (R&TTE), 2011/65/EU (RoHS) Radio Approvals EN 301406 EMC Approvals EN 301 489-6, EN 301 489-1, EN60945 Safety Approvals EN 60950-1 Features DECT Frequency 1880-1900 MHz...

  • Page 22: Specification: Matrix Nenx Ip50 Pbx

    19. SPECIFICATION: MATRIX NENX IP50 PBX Matrix NENX IP50 PBX Manufacturer/Model No. Matrix NENX IP50 Tynetec Part No. ZXT558 Resources 4 CO (TWT) Trunks To connect Two Wire Trunk lines 50 IP (VoIP) Extensions To connect IP-DECT Handsets (50 max) 2 SLT Analogue Ports To connect Single Line Telephones 1 Ethernet Port...

  • Page 23: Specification: Netgear 16/24 Port Ethernet Switches

    20. SPECIFICATION: NETGEAR 16/24 PORT ETHERNET SWITCHES 16 Port Ethernet Switch (8 PoE) Manufacturer/Model No. Netgear ProSAFE FS116P Tynetec Part No. ZXT549 Network Protocol & Standards IEEE 802.3i 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet EMC Approvals FCC Part 15 Class A, EN 55022 (CISPR 22) Class A, C-Tick Class A Safety Approvals EN 60950, UL 1950, C-Tick Features...

  • Page 24: Specification: Apc Uninterruptible Power Supply

    21. SPECIFICATION: APC UNINTERRUPTIBLE POWER SUPPLY Manufacturer/Model No. APC BE700G-UK Tynetec Part No. ZXT548 EMC Approvals EN 62040-2, EN 55022, C-Tick Safety Approvals IEC 62040-1-1, IEC 60884-1 Features Input Voltage/Frequency 230V AC 50/60Hz max 10A Input Connection 1.8 metres long with BS 1363 moulded non-rewireable 13A UK Plug Fuse Type/Rating BS 1362 1”...

  • Page 25: Amendments Record

    22. AMENDMENTS RECORD The table below lists significant changes to this manual; Issue Amendments Date Preliminary Issue 1/8/19 Doc No. FM0854 issue 1 Page 25...
