Advent XT2
Assisted Living Call Management System
_________________________________________________________________________________________________
Tynetec, a business unit of Legrand Electric Ltd
Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF.
T: +44 (0)
1670 352 371 www.tynetec.co.uk
_______________________________________________________________________________________________________________________
Trusted Technology
Caring for People
Installation Manual

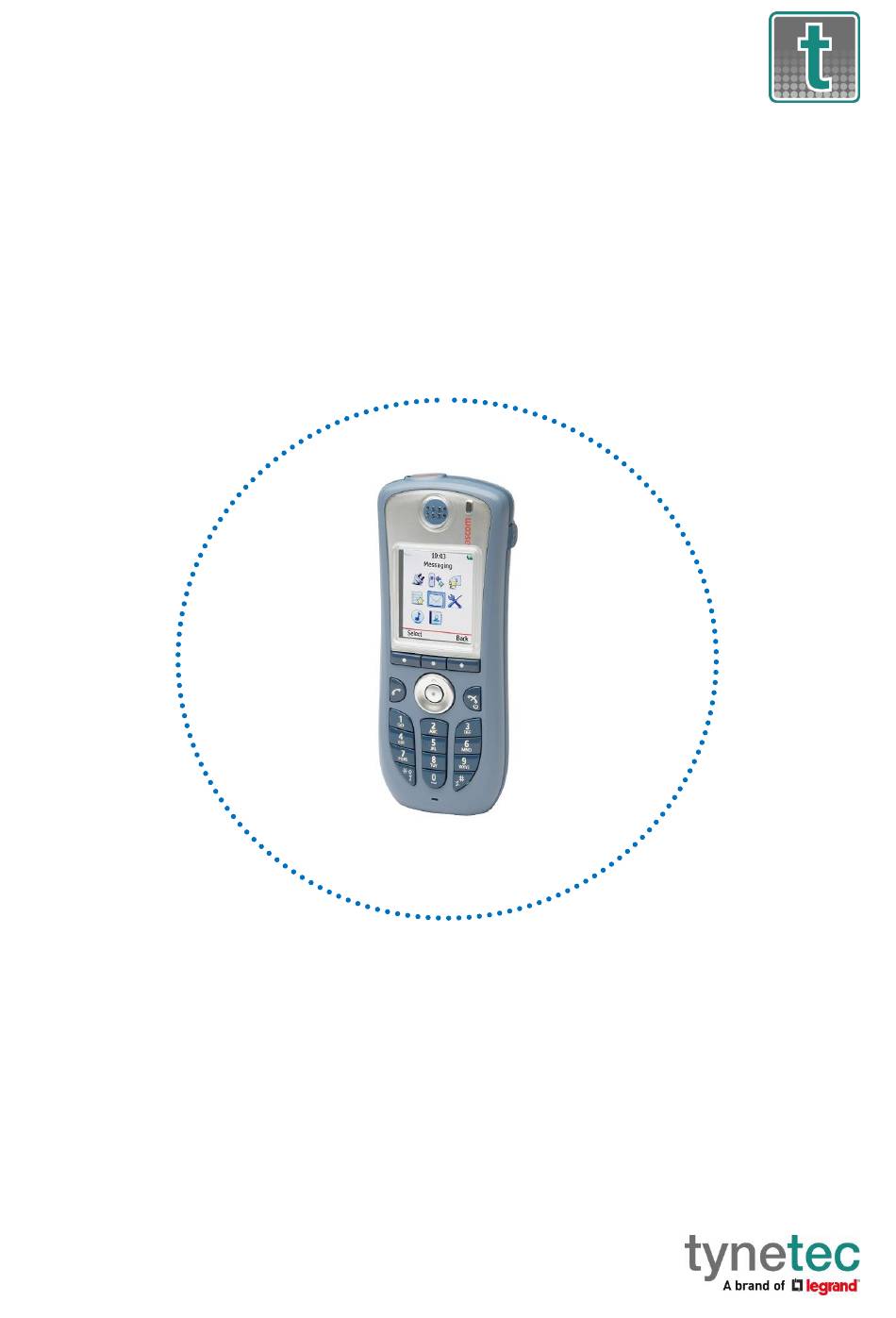

i62
Tynetec operates a policy of continual product improvement and
reserves the right to modify the specification of its products.
If any variation to the details in this document are suspected please
ascom
VoWiFi
contact Tynetec's Technical Support.
Doc No. FM0855 issue 2
Advertisement
Table of Contents
Related Manuals for LEGRAND TyneTec Advent XT2 ascom VoWiFi Series
Summary of Contents for LEGRAND TyneTec Advent XT2 ascom VoWiFi Series
- Page 1 If any variation to the details in this document are suspected please contact Tynetec’s Technical Support. Tynetec, a business unit of Legrand Electric Ltd Cowley Road, Blyth Riverside Business Park, Blyth, Northumberland, NE24 5TF. T: +44 (0) 1670 352 371 www.tynetec.co.uk...
-
Page 2: Table Of Contents
CONTENTS Section Topic Page Product Overview Important Safety Instructions Regulatory Information Maintenance & Care VoWiFi Overview Related Documentation Site Wiring Requirements Ascom i62 VoWiFi Handset & Charger Matrix NENX IP-PBX Draytek Vigor AP 903 Access Point Mesh Access Point Installation VoWiFi System Installation Overview Laptop Setup for Draytek Devices Check &... -
Page 3: Product Overview
1. PRODUCT OVERVIEW The ascom VoWiFi system provides a reliable Voice Over IP communication solution that combines the open standard for wireless radio networks and SIP telephony technologies. Utilizing the IEEE 802.11n standard for wireless LAN (WLAN) communications, the ascom VoWiFi system provides the benefits of increased speed, improved reliability and extended range of wireless transmissions. -
Page 4: Important Safety Instructions
2. SAFETY INSTRUCTIONS Read and understand these instructions before use. Refer to the Manufacturers installation and user guides for more information (see section 6 of this manual). Keep all instructions for future reference. Take care when working on step ladders during installation or service. Isolate the mains supply before removing covers. -
Page 5: Regulatory Information
3. REGULATORY INFORMATION This symbol on the product indicates it complies with all relevant EU Directives as required by law e.g. Radio & Telecommunication Terminal Equipment (RTT&E), Safety of Information Technology Equipment (LVD), Electro Magnetic Compatibility (EMC) and Restriction of Hazardous Substances RoHS. See the Specification for each individual product in section 20 onwards for relevant Approvals. -
Page 6: Vowifi Overview
5. VoWiFi OVERVIEW The maximum theoretical range for any VoWiFi system is 300 feet (92 metres) outdoors under ideal conditions, in practice this range will rarely be reached due to reflections from nearby buildings, trees, water, etc. Obstructions inside buildings such as walls and floors will reduce the range, some construction materials such as foil backed plasterboard, reinforced concrete or stone walls will reduce range further. -
Page 7: Related Documentation
6. RELATED DOCUMENTATION This manual provides general information regarding the installation of Ascom VoWiFi handsets with the Matrix IP-PBX and Draytek Mesh Access Points. For more detailed information refer to the Ascom and Draytek installation and user guides. ASCOM DOCUMENTS You can request copies of the documents listed below from Tynetec’s customer support. -
Page 8: Site Wiring Requirements
7. SITE WIRING REQUIREMENTS ASCOM VoWiFi SYSTEM LAN B LAN A4 LAN A3 LAN A2 LAN A1 2.4G LAN B LAN B LAN A4 LAN A4 LAN A3 LAN A3 LAN A2 LAN A2 LAN A1 LAN A1 2.4G 2.4G ETHERNET EXTENSION If the Mesh Root Access Point needs to be located in a remote location where the 2m UTP Patch lead provided isn’t long enough to reach the... -
Page 9: Ascom I62 Vowifi Handset & Charger
8. ASCOM i62 VoWiFi HANDSET & CHARGER Durable, robust, and feature rich ascom i62 VoWiFi handsets are designed to enable healthcare personnel to be mobile while still within quick reach in critical situations. The i62 handset is protected against splashing water making it suitable for use in wet room environments. ascom i62 Multifunction Button Incoming Call LED... - Page 10 8. ASCOM i62 VoWiFi HANDSET & CHARGER Additional ascom i62 VoWiFi handsets & chargers are available separately – Tynetec Part No. ZXT573. Note: a maximum of 5 x i62 handsets can be used per site. Additional i62 handsets must be configured as SIP extensions 153, 154 and 155 – see instructions below; CHANGING THE SIP SETTINGS ON AN i62 HANDSET Select Menu...
-
Page 11: Matrix Nenx Ip-Pbx
9. MATRIX NENX IP-PBX The Matrix NENX IP-PBX provides 2 CO (TWT) analogue trunks for connection to the XT2 system and the outside world, an Ethernet port for up to 5 IP extensions (VoWiFi handsets) and 2 analogue extensions for standard (SLT) desk telephones. -
Page 12: Draytek Vigor Ap 903 Access Point
10. DRAYTEK VIGOR AP 903 ACCESS POINT One Draytek Vigor AP 903 Access Point (known as the Mesh Root) is connected via its LAN A1 Port to the Matrix IP-PBX Ethernet Port using a standard Cat5e UTP Patch lead. Up to another seven Access Points (known as Mesh Nodes) can be deployed and connected wirelessly throughout the building to expand the WiFi coverage. - Page 13 10. DRAYTEK VIGOR AP 903 ACCESS POINT STATUS LED INDICATORS There are 9 status LED’s on the front of the Access Point, see the table below; LED Ref. Status Meaning Blinking Operating normally Power off USB device not connected USB device connected and ready Blinking Data is being transmitted via USB 2.4G...
-
Page 14: Mesh Access Point Installation
11. MESH ACCESS POINT INSTALLATION Draytek Mesh Access Points should be fixed to the wall using the plugs and screws included. They should be installed vertically with the antennas at the top. The mounting positions should have been pre-determined by a site survey and should be within 1 metre of a mains supply. -
Page 15: Vowifi System Installation Overview
12. VoWiFi SYSTEM INSTALLATION OVERVIEW The VoWiFi system can expand up to 8 Mesh Access Points with a maximum of 5 VoWiFi handsets. For larger installations which cannot be covered with 8 Mesh Access Points, or schemes that require more handsets or more complex call routing, then the ascom IP-DECT system must be used instead. -
Page 16: Laptop Setup For Draytek Devices
13. LAPTOP SETUP FOR DRAYTEK DEVICES Before starting to setup the Mesh Access Points you must ensure your Laptop is set within the IP range and subnet mask of the Draytek devices being programmed. 1. On your Laptop; click the Start button, go to Control Panel and double-click on “Network and Sharing Center”. -
Page 17: Check & Upgrade Draytek Firmware
14. CHECK & UPGRADE DRAYTEK FIRMWARE Connect the power to the Access Point and switch on, wait for the 5G & 2.4G LED’s to illuminate. Connect LAN A1 to your Laptop Ethernet port using the UTP Patch lead supplied. Open a web browser and type: http://192.168.1.2 for a new or factory defaulted Access Point. Enter the default User Name of “admin”... -
Page 18: Mesh Root Setup
15. MESH ROOT SETUP The Mesh Root is the Access Point connected via LAN A1 to the Matrix IP-PBX via an Ethernet cable. Only one Mesh Root is required per site. Go to the Quick Start Wizard as shown below; ... - Page 19 15. MESH ROOT SETUP Go to the IP address of the new device (this should still be default at 192.168.1.2) Login with the usual passwords (if not already Logged-in previously) Go to the LAN menu and select General Setup as shown below; In the “LAN IP Network Configuration”...
- Page 20 15. MESH ROOT SETUP Still in the Wireless LAN (2.4GHz) menu select Roaming as shown below; Repeat the same as above but for the Wireless LAN (5GHZ) option Select Strictly Minimum RSSI (-73dBm / 42%) then press Go to the Wireless LAN (5GHz) menu and repeat the same settings as the Wireless LAN 2.4GHz i.e. Select General Setup ...
-
Page 21: Mesh Node Setup
16. MESH NODE SETUP The Mesh Nodes are the Access Points connected wirelessly to the Mesh Root. Up to 7 Mesh Nodes can be added per site to increase the VoWiFi coverage. Power-up the Access Point to be setup as a Mesh Node and wait for the 2.4G and 5G LED’s to illuminate. Connect LAN A1 to your Laptop Ethernet port using the UTP Patch lead supplied. -
Page 22: Mesh Node Discovery
17. MESH NODE DISCOVERY Power-up all Mesh Roots Re-connect your Laptop to LAN A1 on the Mesh Root Access Point Open a web browser and type: http://192.168.0.50 and Login Go to the menu and select MESH Mesh Setup as shown below; Scroll down to the Add Mesh Node section and press the Search button ... -
Page 23: Mesh Node Deployment
18. MESH NODE DEPLOYMENT The Draytek mesh solution supports a maximum of 8 Vigor AP 903’s in a mesh group, a mesh group includes 1 Mesh Root and up to 7 Mesh Nodes. IMPORTANT: Mesh Nodes can be a maximum of 3 hops away from the Mesh Root. A free Draytek Wireless App is available to simplify the setup of the mesh network;... -
Page 24: Vowifi System Commissioning
19. VoWiFi SYSTEM COMMISSIONING This section describes the visual inspection and tests that must be performed after completing the installation and setup of the VoWiFi system. The purpose of the visual inspection and tests is to verify that the installation has resulted in a correctly functioning system. If it appears that a part is malfunctioning while the system is installed correctly (that is, no cabling faults, no configuration faults), refer to the Troubleshooting (chapter V) of the Draytek User Guide for fault finding. -
Page 25: Specification: Ascom I62 Vowifi Handset
20. SPECIFICATION: ASCOM i62 VoWiFi HANDSET i62 VoWiFi Handset Manufacturer/Model No. ascom WH1-AAAA (i62 Talker) Tynetec Part No. ZXT573 (supplied with ZXT964 bundle) Certification WiFi Alliance 802.11n including WiFi Multimedia WLAN Security 802.11i (TKIP, AES-COMP) WEP (64/128 bit) Encryption Protocol SRTP including TLS Battery Type Lithium Ion 3.7V 900mAh 3.33Wh (Tynetec Part No. -
Page 26: Specification: Ascom I62 Charger & Psu
21. SPECIFICATION: ASCOM i62 CHARGER & PSU Charger Supplier/Model No. ascom DC3-AABA Tynetec Part No. W03037 (supplied with ZXT964 bundle or ZXT573 i62 handset) Colour Blue Enclosure Desktop design, indoor use only Dimensions 58mm x 95mm x 95mm (HxWxD) Weight 170 grams Power Supply Manufacturer Model No. -
Page 27: Specification: Matrix Nenx Ip-Pbx
22. SPECIFICATION: MATRIX NENX IP-PBX Matrix IP-PBX Manufacturer/Model No. Matrix NENX Tynetec Part No. N/A (supplied as part of ZXT964 bundle) Resources 2 CO (TWT) Analogue Trunks To connect Two Wire Trunk lines 5 IP (VoIP) Extensions To connect IP-DECT Handsets (5 max) 2 SLT Analogue Ports To connect Single Line Telephones (2 max) 1 Ethernet Port... -
Page 28: Specification: Draytek Vigor Ap 903 Access Point
23. SPECIFICATION: DRAYTEK VIGOR AP 903 ACCESS POINT Draytek Vigor AP 903 Manufacturer/Model Draytek Vigor AP 903 Tynetec Part No. ZXT963 EMC Compliance ETSI EN 300 328 WiFi Compliance IEEE802.11/a/b/g/n/ac Wave 2 Compliant 2.4G WLAN Frequency 2412MHz - 2472MHz, max TX Power: 19.86dBm 5G WLAN Frequency 5180MHz - 5700MHz, max TX Power: 29.86dBm Interfaces/Controls... -
Page 29: Amendments Record
24. AMENDMENTS RECORD The table below lists significant changes to this manual; Issue Amendments Date First Draft 26/07/19 Preliminary issue 31/07/19 Doc No. FM0855 issue 2 Page 29...
