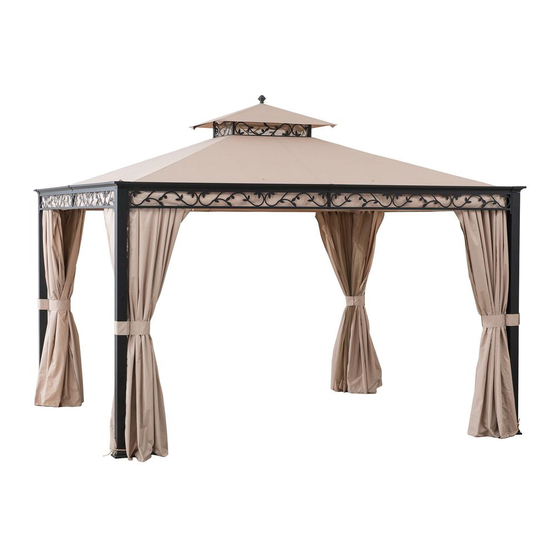

- Page 1 ITEM NO.: A101003202 WE HAVE YOU IN MIND, LET US SERVE YOU! Questions? Issues? CONTACT US 24 hours / 7 days a week www.sunjoyonline.com customer.care@sunjoygroup.com 1-(866)-578-6569 Country of Origin: China Production Number: xxxxxxxxxx...
-
Page 2: Safety Information
2 / 9 Safety Information This unit is heavy! Do not assemble DANGER: two people are required for this assembly. this item alone. Some parts may contain sharp edges. Wear protective gloves. Do not leave the gazebo where there WARNING: ... -
Page 3: Parts List
3 / 9 Parts List Post P000200487 Base P006100183 Base cover P000100346 Long Frame 1 P000400941 Long Frame 2 P000400940 Short Frame 1 P000400938 Short Frame 2 P000400939 Slanting bar P000601480 P000601479 Long middle beam Short middle beam P000601478 Slanting bar connector P000501260 Finial for P005600324... -
Page 4: Hardware Pack
4 / 9 Short netting bar P005700698 Finial P005600323 P005700731 Regulating tube Small canopy P001100579 Big canopy P001100580 Curtain P001300109 Mosquito Netting P001200227 Hardware Pack 1 H010110016 M6*15 Bolt 16 PCS flat washer H050010020 64 PCS bolt H010020011 32 PCS M6*15 bolt H010020015... - Page 5 5 / 9 Fig.1:Put Base cover（B）through Post（A）and lift up base cover，then attch base（C）to bottom of post（A）by using bolt(AA)、washer (BB). Fig.2:Attach Finial for corner(J) to top of post(A) by using bolt(AA)、washer (BB). Fig.3:Insert Frame（D1/E1） to Frame（D2/E2）,then by using bolt（CC）and washer （BB）. Fig.4:Attach middle beam connector(I) to frame by using bolt（CC）and washer（BB）...
- Page 6 6 / 9 Fig.7:Attach Big top frame(short)（N2） to Big top frame(long)(N1) by using bolt (DD) and washer (BB). Fig.8:Attach Slanting bar(F) to the top of post by using bolt (AA) and washer（BB）. Fig.9:Install the Slanting bar(F) into the Slanting bar connector(H)of the Slanting bar(F), and then use the bolt(CC)through the gasket(BB)to fix(H) at her lower end of large roof frame.
- Page 7 7 / 9 Fig.15: Screw Finial(P) to Small top connector(K). Fig.16:Insert the small top to the corner of Big top frame，then Mosquito Netting（small canopy） stick to big top frame。 Hardware Pack 3 Ring P005100265 104 PCS stake H070010010 8 PCS Ф6*230 Country of Origin: China...
- Page 8 8 / 9 Fig.17:Expand big canopy(R)，then hook to frame。 Fig.18 :Hang Curtain(S) and Mosquito Netting（T）by using Ring（FF）. Curtain(S) is outside. Fig.19: By using stake(EE) fix assembled gazebo on ground. Country of Origin: China...
-
Page 9: Care And Maintenance
Periodically check and ensure that all bolts are well‐tighten during use Limited Manufacturer’s Warranty Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
