Sunjoy A101000700 Assembly Instructions Manual

Sunjoy A101000700 Assembly Instructions Manual

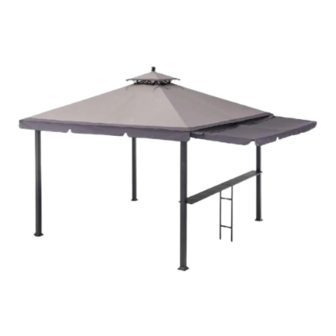

10x10 gazebo w/ awning

Advertisement

Quick Links

Assembly Instructions
10x10 Gazebo W/ Awning
Menards SKU: 2721826
Model: A101000700
Made In China
Production Number:2020300015

Advertisement

loading
Need help?

Need help?

Do you have a question about the A101000700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy A101000700

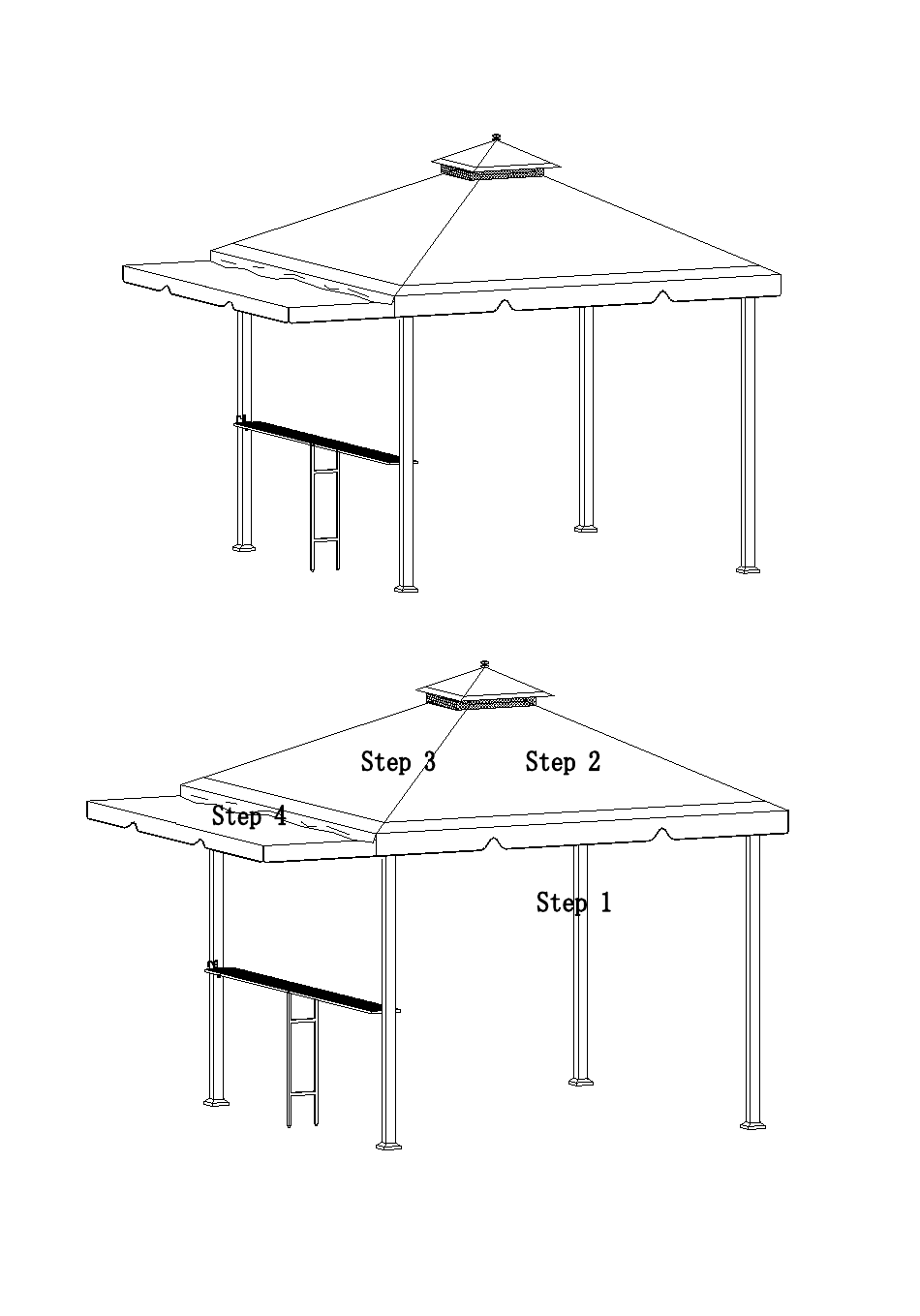

  • Page 1 Assembly Instructions 10x10 Gazebo W/ Awning Menards SKU: 2721826 Model: A101000700 Made In China Production Number:2020300015...
  • Page 2 Congratulations on your purchase of our SUNJOY 10x10 Gazebo W / Awning. Our clear, easy to follow, step-by-step instructions will guide you through the assembly process from start to finish. IMPORTANT: 1. When installing and assembling your gazebo, it is recommended that two or more adults are involved.
  • Page 3: Parts List

    Parts List Image Description Part Qty Part Number Stake Cover P11533A01108 P10182A01108 Decorative part Stake plate P11641A01108 P11113B01108 Post 1 Post 2 P11114B01108 Post 3 P11115B01108 Short beam P11087B01108 P11088B01108 Long beam P11870A01108 Beam support tube P10824A01108 Middle beam connector Oblique beam P10386A01108 P10387A01108...
  • Page 4: Hardware Pack

    Awning frame horizontal P14103A01108 pipe 1 Awning frame horizontal P14104A01108 pipe 2 Awning frame vertical P14105A01108 pipe 1 Awning frame vertical P14106A01108 pipe 2 Awning frame support P14107A01108 pipe Awning frame locating P14302A01108 piece Big canopy P00115A07037 P00116A07037 Small canopy Awning P00206A07023 Hardware Pack 1...
  • Page 5 Fig.1: Firstly attach the bottom of posts (D1,D2, D3) into stake cover(A) and raise them up. Then use bolt (AA) and washer (BB) to fasten the stake plate(C) on the bottom of posts. Fig.2: Attach the short beam (E1) with long beam (E2) tightly using bolt (CC) ,Spring Washer(JJ) and washer (BB).
  • Page 6 Fig.7: Insert the oblique beam (G1) into the down tube (G2). Fig.8: insert the oblique beam (G1) into the big top connector (M). Fig.9: Use bolt (EE), washer (BB) and nut (DD) to fasten the oblique beam down tube (G2) on the U plate of posts (D1, D2, D 3).
  • Page 7 Attach the assembled small top on the tube of oblique beam (G1) through small top oblique beam (L). Fig.17-1: Cover the big canopy (P) on the big top, then button up canopy on the oblique beam down tube (G2). Fig.17-2: Cover the four cloth buttons which in the middle of big canopy (P) on the middle beam Hardware Pack 3 Part Number Image...
  • Page 8: Additional Hardware

    Additional Hardware Image Part Description Part Number M6*15 Flat bolt H09015C11 M6 Washer H19001C11 Hex bolt H020 H14001C11 1 PC M6 Nut M6*40 Flat bolt 1 PC H09040C11 1 PC M6*90 Flat bolt H09090C11 H16001C11 1 PC M6 antiskid nut H02025C11 1 PC M6*25 Hex bolt...
  • Page 9 Fig.18 Insert the awning frame part into the awning (R) as the pic. shows, and use velcro to fasten the vertical pipe (O4,O5) on the awning (R). The outside horizontal pipe (O2,O3) and support pipe(O6) also use velcro to fasten to awning (R),but the inside horizontal pipe (O2,O3) insert to awning (R). Fig.18-1: Insert the horizontal pipe 2 (O3) into the horizontal pipe 1(O2), then use bolt (CC) and washer (BB) to fasten it.
  • Page 10 Fig. 18-2: Use bolt (CC) and washer (BB) to fasten the awning frame support pipe (O6) on the assembled awning frame 1(O2) and awning frame 2(O3). Fig.18-3: Insert the horizontal pipe 2(O3) and awning frame vertical pipe 2(O5) into the awning frame corner part(O1), then use bolt (CC) and washer (BB) to fasten it.
