Functional description

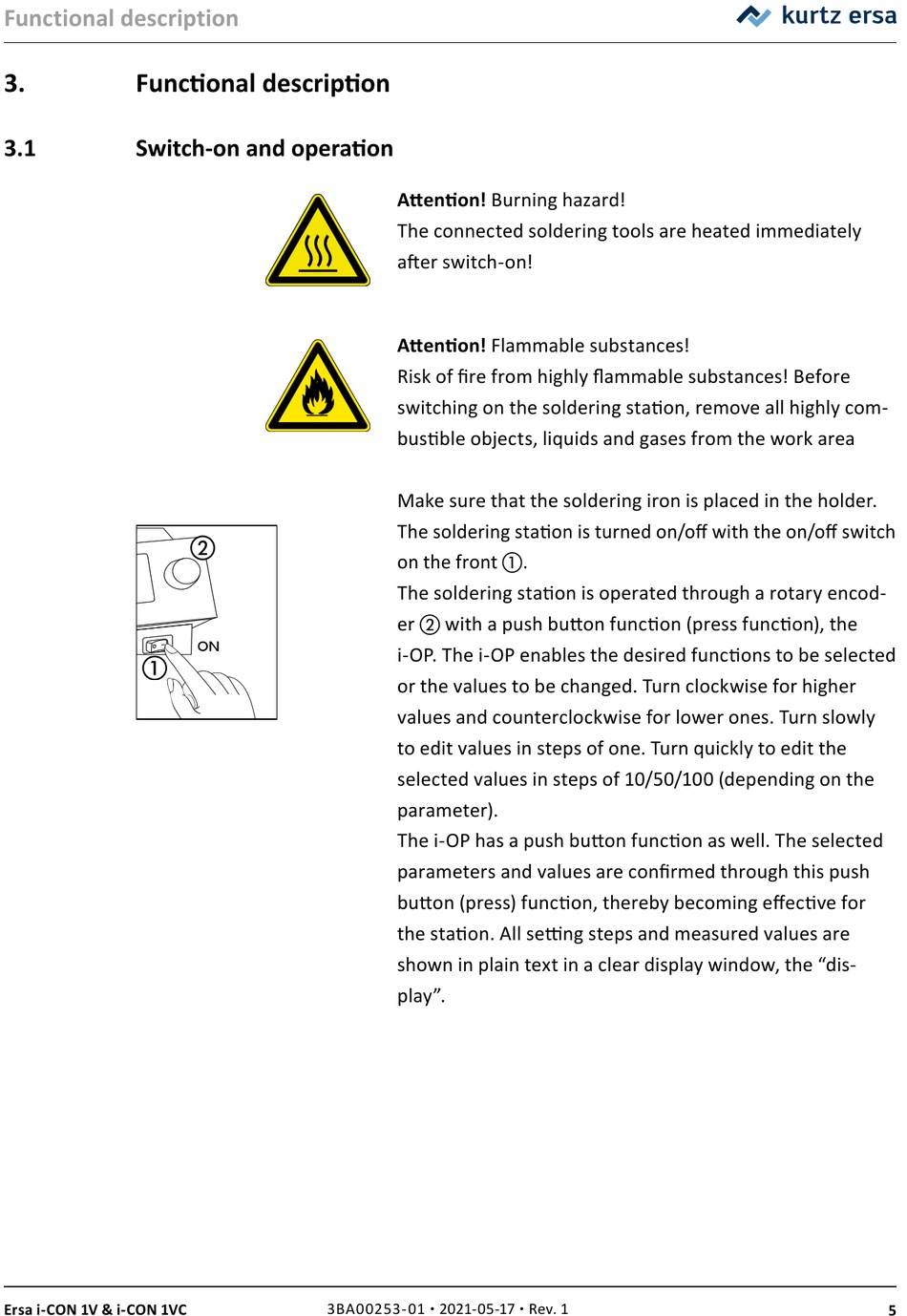

3. Functional description
3.1 Switch-on and operation
Ersa i-CON 1V & i-CON 1VC
ON
3BA00253-01
Attention! Burning hazard!
The connected soldering tools are heated immediately
after switch-on!
Attention! Flammable substances!
Risk of fire from highly flammable substances! Before
switching on the soldering station, remove all highly com-
bustible objects, liquids and gases from the work area
Make sure that the soldering iron is placed in the holder.
The soldering station is turned on/off with the on/off switch
on the front a.
The soldering station is operated through a rotary encod-
er b with a push button function (press function), the
i-OP. The i-OP enables the desired functions to be selected
or the values to be changed. Turn clockwise for higher
values and counterclockwise for lower ones. Turn slowly
to edit values in steps of one. Turn quickly to edit the
selected values in steps of 10/50/100 (depending on the
parameter).
The i-OP has a push button function as well. The selected
parameters and values are confirmed through this push
button (press) function, thereby becoming effective for
the station. All setting steps and measured values are
shown in plain text in a clear display window, the "dis-
play".
2021-05-17 Rev. 1
• •
5
