Summary of Contents for Greenlee HK06AT
- Page 1 INSTRUCTION MANUAL HK06AT Hydraulic Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 99930897 © 2019 Greenlee Tools, Inc. IM 1368 REV 7 10/19...
-
Page 2: Table Of Contents
All specifications are nominal and may change as design improvements occur. Greenlee Tools, Inc. shall not be liable for damages resulting from misapplication or misuse of its products. Blackburn is a registered trademark of Thomas & Betts. -
Page 3: Important Safety Information
HK06AT Hydraulic Crimping Tool IMPORTANT SAFETY INFORMATION SAFETY ALERT Electric shock hazard: This tool is not insulated. When using SYMBOL this unit on or near energized electri- cal lines, use proper personal protec- tive equipment. This symbol is used to call your attention to hazards... - Page 4 HK06AT Hydraulic Crimping Tool IMPORTANT SAFETY INFORMATION An incomplete crimp can cause a fire. • This tool is intended for two-handed operation. Maintain a firm grip on both handles during opera- • Use proper connector and cable combinations. tion. Using this tool in any other manner can result Improper combinations can result in an incomplete in injury or property damage.
-
Page 5: Identification

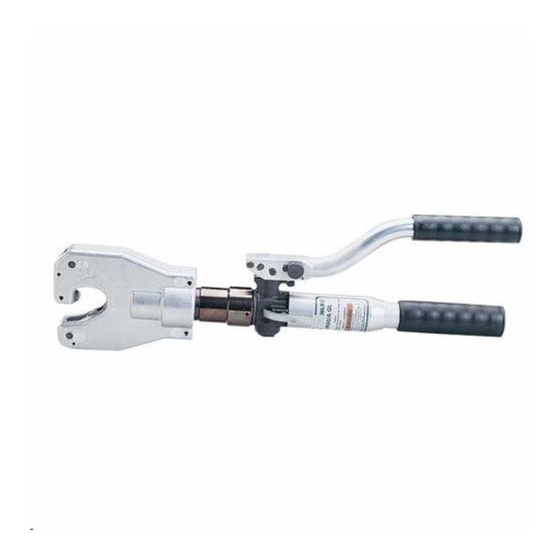

HK06AT Hydraulic Crimping Tool Identification HK06AT 1. Crimping Head 2. Handle Lock 3. Release Lever 4. Pump Body Specifications Crimping Tool Length ..................... 552 mm (21.75") Width ....................191 mm (7.5") Height ....................63.5 mm (2.5") Mass/Weight ...................4.5 kg (9 lb) Hydraulic Oil ..........150 ml (0.3 pints) of Shell Tellus ®... -
Page 6: Operation
HK06AT Hydraulic Crimping Tool Operation 1. Follow the lug manufacturer’s instructions for appro- priate cable strip length and surface prep aration. 2. Insert cable fully into connector. Center the Electric shock hazard: con nector between the nibs. This tool is not insulated. When using... -
Page 7: Connector Selection
Send the crimping Testing the Crimping Tool tool to an authorized Greenlee service center. 1. Center a test slug between the nibs. • If the test slug fits into the GO slot, the pressure 2. -
Page 8: Illustrations And Parts List
HK06AT Hydraulic Crimping Tool Illustration Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 9 HK06AT Hydraulic Crimping Tool Illustration Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 10 HK06AT Hydraulic Crimping Tool Illustration Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
- Page 11 HK06AT Hydraulic Crimping Tool Parts List Part No. Description 50063847 Pump body....................1 50063456 Pump piston ....................1 50063464 Sleeve ....................... 1 50063480 Ram ......................1 50063499 Screw plug ....................1 52046669 Release pin ....................1 50063553 Release lever ..................... 1 50058827 Filter adapter .....................
- Page 12 HK06AT Hydraulic Crimping Tool Parts List (cont’d) Part No. Description 50017276 Spring pin ....................2 50017349 Spring pin ....................1 50017292 Cam yoke assembly .................. 1 Roller bearings ..................12 Bearing retainers ..................2 50060910 Spring, compression ................. 2 50061003 Socket head cap screw, 1/4-20 x 1 Nylock ..........
- Page 13 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Greenlee 50063448 50063952...
