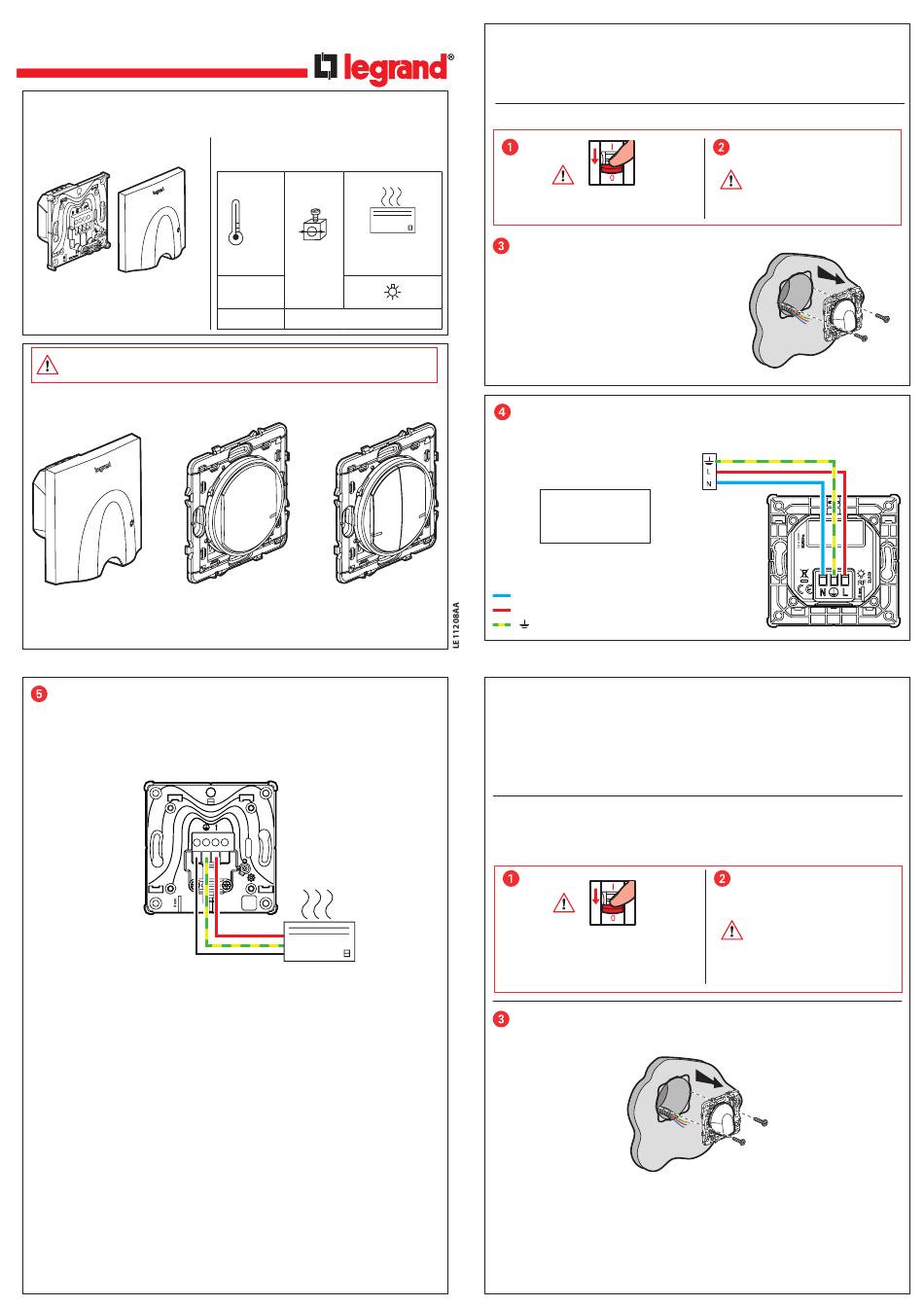

LEGRAND 0 648 47 Quick Start Manual

Connected cable outlet
0 648 47/51/63/79/82/83/98
This pack is a connected accessory which requires you to buy and install the «... with
Netatmo» connected starter pack first.

Pack contents

Connected cable Finishing plate
outlet
The circuit must be protected with a 16A breaker

Before you start : wiring precautions

To control a connected cable outlet, only use these products :
AND
x 1
Connected cable outlet
1gang or 2gang wireless light switches for all other control
points (not included in this pack)

Wire the appliance on your connected cable outlet

Appliance installed without pilot wire
N
Ø 3.7 min
Authorized cables H05 VVF or H07 RNF
For cables Ø maxi. 12,5 mm
Ø mini. 3,7 mm

Electrical characteristics

+ 45° C
+ 5° C
200 000
actuations
50/60 Hz 2,5 mm 2
230 Vac Maxi. 3000 W
AND/
OR
x 1 x 1
or many or many
FP
Ø 12.5 max
3
CASE N° 1 - Appliance installed without pilote wire
(By default factory mode)
Note : in that case, the connected cable outlet can be controlled by
wireless light switches.

Necessary safety precautions

OFF
Switch off the power at the main circuit
breaker

Remove the existing cable outlet

(with or without pilot wire)

Wire the connected cable outlet

2,5 mm2 rigid wire
(recommended)
14 A - 230 V~
3000 W maxi
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
N (neutral) = blue
L (live) = all except blue and yellow
(earth) = green/yellow
CASE N° 2
Appliance installed with pilot wire(*) and without energy
manager
Pilot wire function activable in Legrand Home+Control app.
Note : enabling the pilot wire feature makes the wireless light
switches inoperable on the connected cable outlet.
(*) Pilot wire 4/6 orders (read your appliance instruction sheet)
Necessary safety precautions
OFF
Switch off the power at the main circuit
breaker
Remove the existing cable outlet
Remove the existing cable outlet
Make sure that the power is
off before continuing with the
installation.
2
Make sure that the power is
off before continuing with
the installation.
4
