LEGRAND Green up 0 904 72 Instruction Manual

2 P+E socket outlets - German standard
IP 55 - IK 08
VEHICLE MANUFACTURER DETAILS
100% electric vehicles
Rechargeable hybrid vehicles
Extended-range electric vehicles
Scooters, quad bikes and light vehicles up
to 8 A
1. USE
3.7 kW, modes 1 and 2, 2 P+E, 16 A, 230 V, German standard socket
outlet with safety shutters.
- For safe charging of electric vehicles supplied in modes 1 and 2
(charging on a domestic socket).
- Cost-effective, safe 2 P+E socket certified for all electric vehicles (mode
1 and mode 2). Equipped with optimised connection terminals, metal
contacts with silver surface treatment (5 µm). Equipped with Green'up
System, a Legrand technology.
- Patented Green'up System: the EV detects the secure Green'up Access
infrastructure and selects the maximum power that can be supplied via
the socket (reduced charging time).
- Suitable for private houses and workplaces.
- It is connected from the electrical panel via a dedicated line (1 line per
socket) with protection via a 30 mA - 16 A type F (HPi) RCBO.
Bus cable Cat. No. 0 492 31 can be used as an option to migrate to the
Green'Up Premium communication terminal (full mode 3 ready).
Technical data sheet: F01850EN/03
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrand.com
0 904 72
Updated: 22/06/2021
Catalogue number(s): 0 904 72 - 0 904 78
INSTALLER DETAILS
Occasional charging possible on
conventional socket
2.5 mm
2
Legrand Green'up Access
secure socket for day-to-day
charging of electric vehicles
0 904 78
2. RANGE
Description

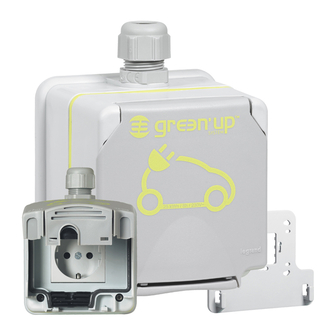

2 P+E socket outlet - surface mounted
Equipped with an ISO 20 cable gland on the socket outlet and an
ISO 20 plug which is not fitted.
Supplied with bracket Cat. No. 0 904 78.
Bracket with hooks
For suspending the charging cable control box.
Dedicated line
Charging time cut
with 30 mA,
by at least 30% with
type F (HPi), 16 A
the Green'Up Access
single phase RCBO
socket**
The earth
measurement
must be checked*
*To be carried out by a professional
electrician.
** Charging time varies according to vehicle
model.
Created: 30/09/2013
100
70
Cat. No.
0 904 72
0 904 78
1/3
