Galion

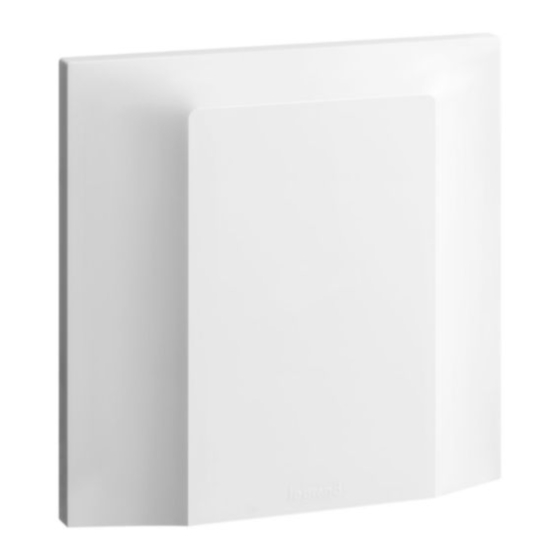

Connection unit

1. USE

Device to enable the connection of free-standing electrical appliances
from the fixed wiring of the main installation.
(Supplied with M3.5 screws for BS boxes. Flush mounting or Surface
mounting.)

2. RANGE

Designation
45A Connection
Unit
Colours
- Front: white/rose golden/champagne/dark silver
- Rear: white/rose golden/champagne/dark silver
X XXX XX White
X XXX XX-C Matt black
X XXX XX-C1 Rose golden

3. PREPARATION

3.1 General preparation
- flushing
mounting
box:
- surface
mounting
box:

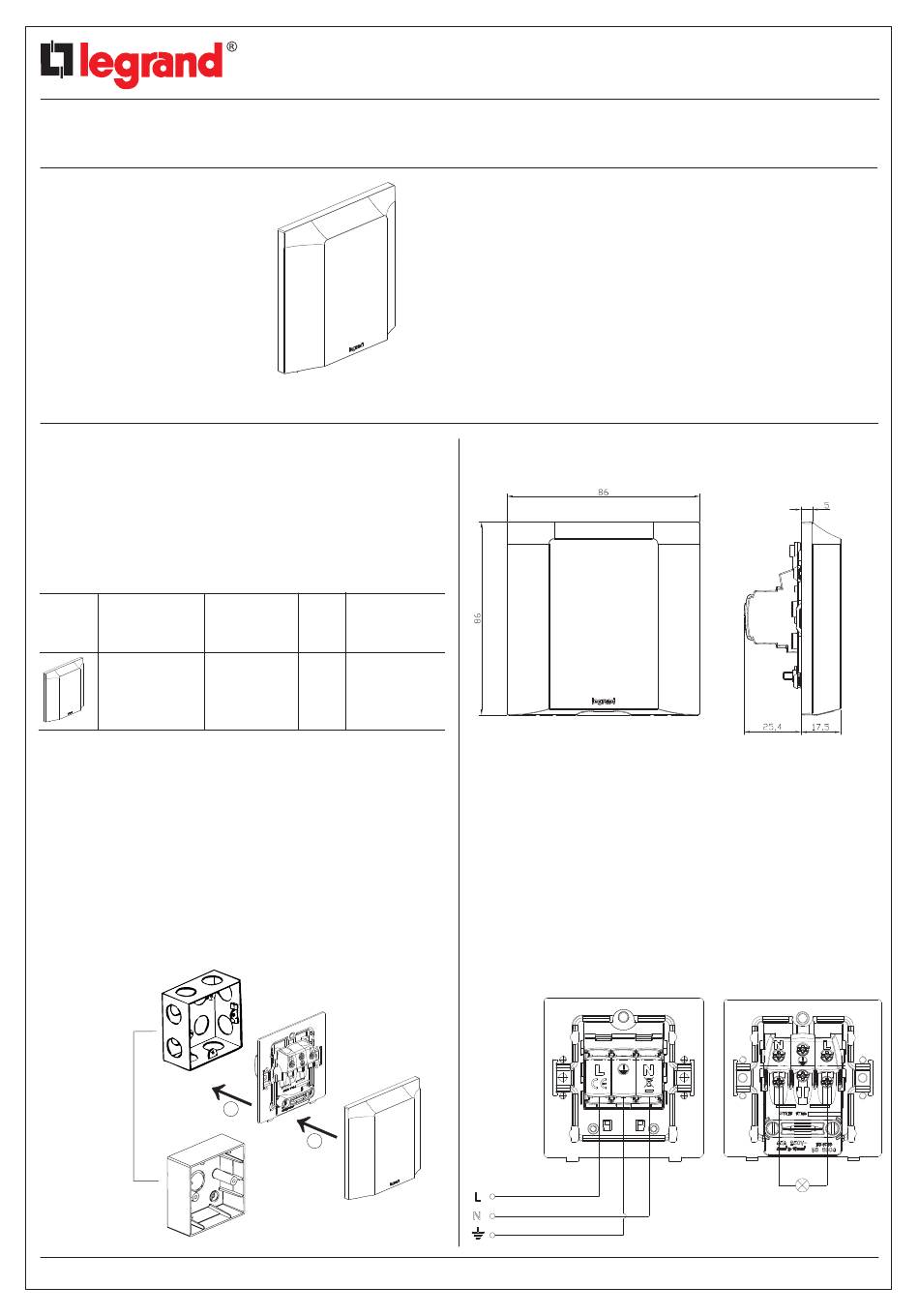

Technical data sheet:F03019EN/00
2 824 54
Weight
Cat. No. Characteristics
(g)
2 824 54 45A 250V~
135.4
1
2
87045 Limoges Cedex
Telephone: (+33) 05 55 06 87 87 - Fax:(+33) 05 55 06 88 88
Cat. No(s): 2 824 54

4. OVERALL DIMENSIONS

Profile Size: 86×85 mm
Distance of installation hole: 60.3 mm
Minimum depth of the box≥35 mm

5. CONNECTION

5.1 Terminals
Terminal capacity: 7 ×2.5
4 ×4 mm²
2 ×6 mm²
1 ×10 mm²
Recommended screwdriver size: 6 mm flat blade
Recommended stripping length: 12 mm
5.2 Circuit diagrams
Updated: 25/10/2019
CONTENTS
1. Use.......................................1
2. Range...................................1
3. Preparation.........................1
4. Overall dimensions.................1
5. Connection...........................2
6. Technical characteristics......2
7. Cleaning.................................2
8. Conformity - Approvals..................2
mm²
Load
Created: 25/10/2019
1/2
