LEGRAND Wiremold OFR Series Installation Instructions Manual

OFR Series
Overfloor Raceway Base & Cover
I N S T L L T I O N I N S T R U C T I O N S
Installation Instruction No.: 1 009 724R2 – Updated September 2012
PRODUCTS COVERED: OFRB, OFRBC, OFRC, OFR1, OFRWC, OFR6, OFR9, OFR11, OFR15, OFR17

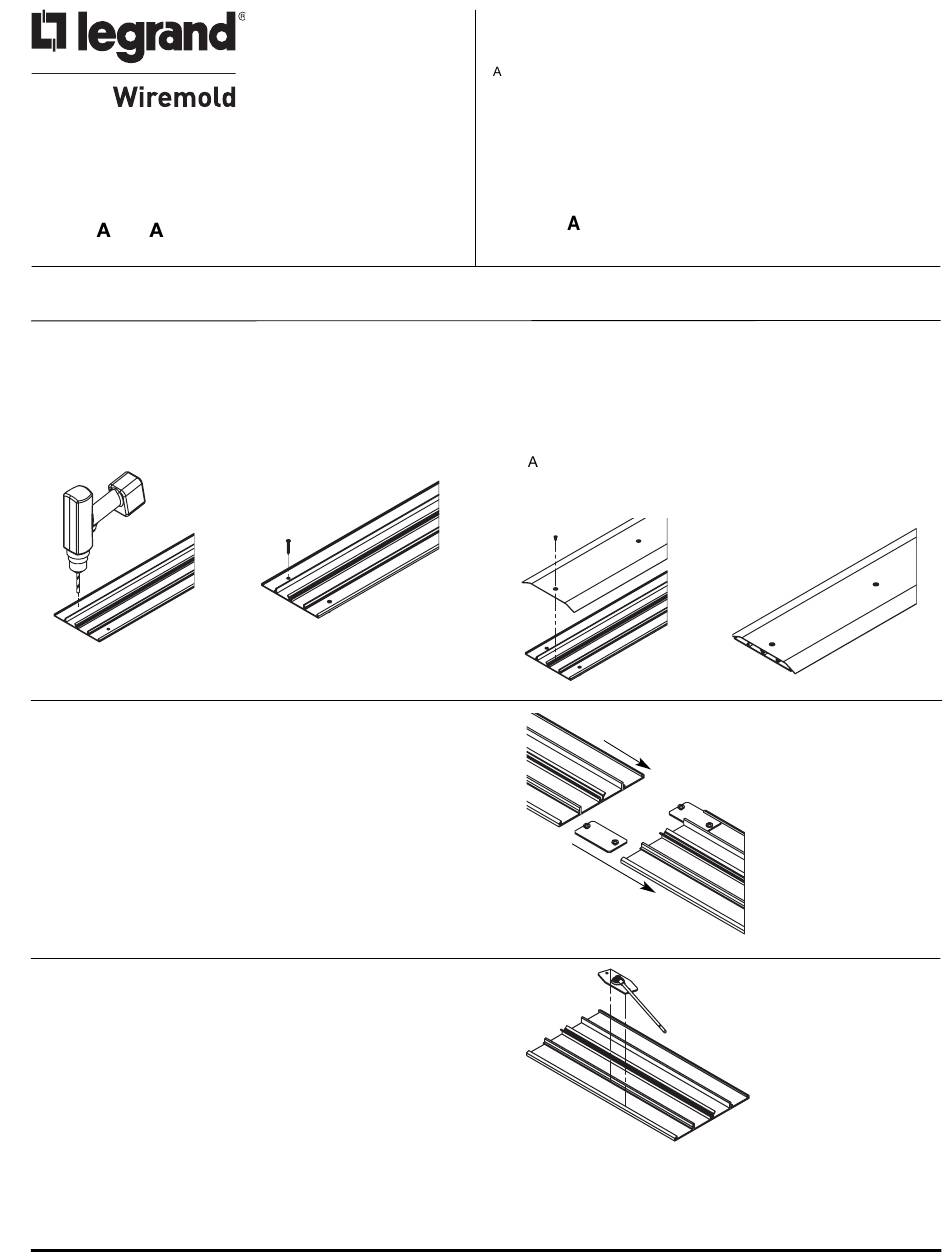

Base & Cover (OFRBC, OFRB, OFRC)
1. Drill 1/4" [6mm] diameter holes in both outer channels of
the raceway base for installation of mounting screws.
Holes should be drilled no further than 3" [76mm] from
each end of the raceway base and no more than 24"
[610mm] apart.
NOTE: Not recommended for use in high traffic areas.
Couplings (OFR1)
1. Slide one (1) coupling into each of the outer channels of
the base and secure the #8-32 screw.
2. Slide next section of base onto other end of coupling
and secure #8-32 screws.
Ground Clip (OFR9)
1. Lay ground clip into outer channel and rotate into grooves.
2. Tighten the #8-32 screws.
Legrand/Wiremold electrical systems conform to and should be properly
grounded in compliance with requirements of the current National
Electrical Code or codes administered by local authorities.
ll electrical products may present a possible shock or fire
hazard if improperly installed or used. Legrand/Wiremold electrical
products may bear the mark of a Nationally Recognized Testing
Laboratory (NRTL) and should be installed in conformance with current
local and/or the National Electrical Code.
IMPORT NT: Please read all instructions
before beginning.
2. Using #8 fasteners, install base of raceway directly on
top of existing floor covering. The screw type should be
appropriate for the type of floor, which the raceway is
being installed on.
3. ttach cover to base by aligning countersunk holes in
cover with the threaded center channel in the base.
Use #8-32 Flat Head screws provided to secure.
2
1
