Summary of Contents for Titan HPE-L

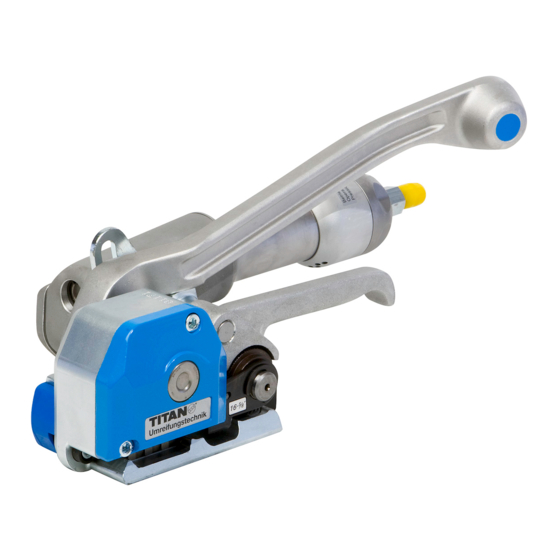

- Page 1 Instruction manual HPE - L 224 000200 Combined strapping tool for steel strap Important! Do not dispose of this manual. It is the customer’s responsibility to ensure that all operators and servicemen read and understand this manual.
- Page 2 The contents of this document must not be duplicated, handed to third parties, published or saved in any form, neither fully nor partly, without prior written permission by TITAN Umreifungstechnik GmbH & Co.KG. is a registered trademark of TITAN Umreifungstechnik GmbH & Co.KG.
- Page 3 The HPE is based on the tried and tested HKE manual strapping tool with the specially patented locking mechanism developed by TITAN. It reduces the force required and, compared to conventional tools, prolongs the service life of those parts which are subjected to mechanical stress.
-
Page 4: Technical Data
Technical data Operating pressure: max. 6 bar flow pressure Tensioning strength: max. 7000 N Feed speed: 150 mm/sec Air consumption: 0.36 m³/ min Strap qualities: Automaten-, Megaflex- and Megaband with blue, lacquered and zinc-dust coated surfaces Strap thickness: 0.5 to 0,8 mm for Automaten- and Megaflex Band;... -
Page 5: Safety Regulations
The use of plastic straps is not allowed with this device. Warranty and liability TITAN Umreifungstechnik GmbH & Co. KG guarantees all strapping tools sold by the company for a period of 6 months. The warranty covers all defects that can be demonstrated to result from faulty craftsmanship or defective materials. - Page 6 Make sure that no hands or other body parts are between the strap and the goods to be packaged. Use only original TITAN replacement parts! The use of parts other than original TITAN replacement parts will void the warranty and all liability. Use only lifting gear that complies with the safety regulations!
- Page 7 The use of straps other than those recommended can result in broken straps during the tightening process and insufficient strapping. Use only corresponding quality products from TITAN! This device may be operated only by personnel who have been trained accordingly. Please consult your TITAN packing consultant if you have any questions about this.
-
Page 8: Putting Into Service
Putting into service Connect the HPE strapping tool to the compressed air supply by means of the quick-action coupling mechanism which is supplied. Maximum air pressure (see technical data). Important: This tool may only be operated together with a compressed air maintenance unit consisting of a pressure reducer, water separator and lubricator. - Page 9 = gripper plate f = compressed air motor 6.2. Operating the unit Place TITAN steel strap around the packing unit from above. Pull strap end through until it is located in the middle of the packing unit below the upper strap and projects by a hand span.
- Page 10 (f), the left hand grasps the cutting lever (b) and pushes it rapidly forward up to the stop at the housing. Thus, the TITAN "no-seal- joint" is formed. At the same time the steel strap is cut off directly behind the joint.
- Page 11 Bring cutting lever (b) back into its initial position and take hold of the cut off strap end with your left hand. Lift the compressed air motor (f) up to the limit and swing the tool to the right out of the strapping. The following picture shows a correctly carved seal.
- Page 12 Adjustments 7.1. Cutter adjustment The cutter has to be adjusted for the respective thickness in the case of varying strap thickness. Loosen locking screw (g). Turn stop screw (set screw with flat point) (h) by means of a Socket spanner in a clockwise direction = less cutting depth;...
- Page 13 7.1. Adjusting strap width The strap guide (n) located next to the feed wheel is replaced when the strap width is modified. In order to do so the safety ring has to be removed by means of a screwdriver and the lifting lever (c) and the cutting lever (b) pressed together. The strap guide may now be pulled off toward the front and be replaced with the strap guide for other strap widths.
-
Page 14: Maintenance
Tool inspection! Perform a daily visual inspection of the outside of the unit. The early detection of damaged parts extends the life of the unit. Replace all damaged parts immediately with Original TITAN spare parts. H 224 EU 07/10... -
Page 15: Ec Declaration Of Conformity Of The Machinery
EC declaration of conformity of the machinery...
