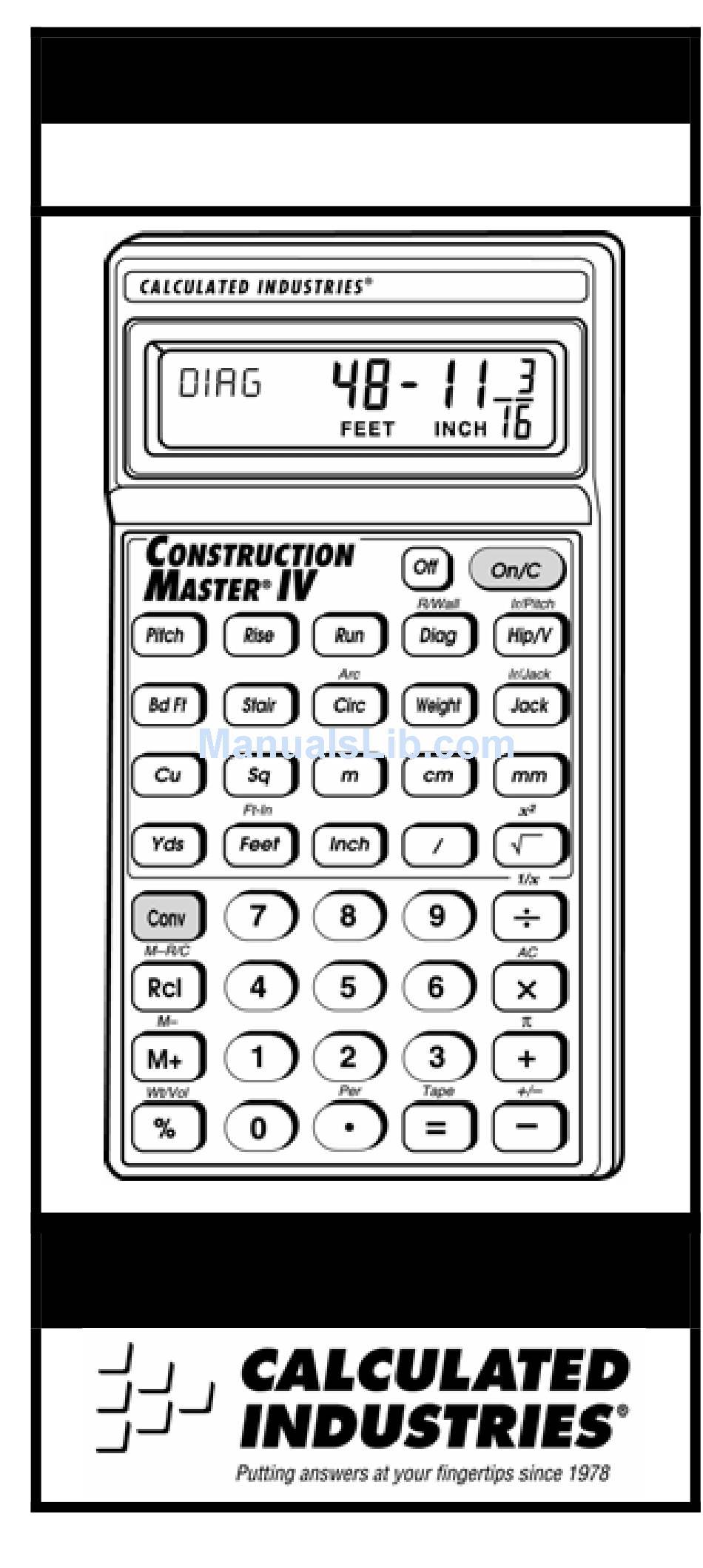

C
M
IV
ONSTRUCTION
ASTER
For Today's Construction Professional
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Construction Master IV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Calculated Industries Construction Master IV

Summary of Contents for Calculated Industries Construction Master IV

  • Page 1 ® ONSTRUCTION ASTER For Today's Construction Professional User’s Guide...

  • Page 2: Table Of Contents

    Board Feet/ Lumber Calculations..32 Right-Triangle Calculations ...32 Hip/Valley & Jack Rafters...39 Stair Problems (Risers/Treads) ...43 Circle Problems ...46 Appendix A...47 Battery & Auto Shut-Off...47 Default Values ...47 Appendix B...48 Repair and Return ...50 Warranty...51 2 — Construction Master IV ® IV ...3...

  • Page 3: The Construction Master Iv

    ONSTRUCTION Designed for today’s construction pro- fessional, the Construction Master is so simple, even the novice user will find it easy to solve hundreds of di- mension-related problems right in feet, inches and fractions! ♦ Solve Dimensional Math ♦ English/Metric Conversions ♦...

  • Page 4: Getting Started

    Used with the dimensional keys to convert between dimensions or with other keys to access special func- tions. ] — Square Root Key Used to find the square root of a non-dimensional or area value. 4 — Construction Master IV...
  • Page 5 Finds the square of a linear or non- dimensional value. [M+] — Memory Key Adds the displayed value to Mem- ory. Clears when the calculator is shut off. [Conv] [M+] — Memory Minus (M–) Subtracts the displayed value from Memory.

  • Page 6: Dimension Keys

    Enters or converts to feet as whole or decimal numbers. Also used with the [Inch] and [/] keys for entering Feet-Inch values (e.g., 6 [Feet] 9 [Inch] 1 [/] 2). Repeated presses toggle between Feet-Inch and Deci- mal Feet. 6 — Construction Master IV...
  • Page 7 Used to enter fractions. Fractions can be entered as proper (1/2, 1/8, 1/16) or improper (3/2, 9/8). If the denominator (bottom) is not entered, the calculator's fractional accuracy setting is automatically used. [m] — Meter Key Enters or converts to meters.
  • Page 8 [Diag] — Diagonal Key Enters or calculates the common or diagonal leg (hypotenuse) of a right triangle. Typical applications are “squaring" slabs or finding common rafter lengths. 8 — Construction Master IV 9 [Inch] [Pitch] 30 [Pitch] 0.75 [Conv] [Pitch]...
  • Page 9 [Conv] [Diag] — Rake Walls This function finds the decreasing stud sizes in a raked wall based on computed or entered values for pitch, rise and/or run. Repeated presses display stud sizes from longest to shortest. The on-center spacing of a raked wall can be permanently stored by entering a dimension prior to solving for stud sizes (12 [Inch] [Conv]...
  • Page 10 The calculator uses the same on-center spacing as the regu- lar pitch sided jack rafters unless a new on-center spacing is entered (e.g., 19.2 [Inch] [Conv] [Jack]). 10 — Construction Master IV...
  • Page 11 Stair & Circle Keys [Stair] — Stair Key A multi-function key that enters a desired riser height and uses the rise and run values to compute and display the following: Press Default value is 7-1/2 inches (Metric Mode: 185 millimeters). [Circ] —...
  • Page 12 [Conv] [ • ] — Per Function Allows you to compute a total mate- rial cost given a unit dimension and an entered Per Unit Cost. Note: Board feet calculations are per 1,000 Bdft (Mbm) 12 — Construction Master IV...

  • Page 13: Fractional Settings

    Fractional Settings Setting Fractional Accuracy When your calculator is in a default condition (battery change or full reset), it is set to round fractional values to the nearest 1/16th of an inch. The fractional level can be revised by using...

  • Page 14: Entering Dimensions

    Square and Cubic Dimensions Examples of how square and cubic dimensions are entered: Dimension 5 Cubic Yards 130 Square Feet 33 Square Meters 14 — Construction Master IV Keystrokes 5 [Yds] 1 [ / ] 2 17.5 [m] Keystrokes 5 [Cu] [Yds]...

  • Page 15: Linear Conversions

    Linear Conversions Convert 14 feet to other dimensions: Keystroke 14 [Feet] . . . [Conv] [Yds] [Conv] [Feet] [Conv] [Feet] [Conv] [Inch] [Conv] [mm] [Conv] [cm] [Conv] [m] Square Conversions Convert 14 square feet to other square dimensions: Keystroke 14 [Sq] [Feet] . . . [Conv] [Inch] [Yds] [mm]...

  • Page 16: Cubic Conversions

    * The calculator's auto-range function forced the answer to be in meters, as it is out of the calculator's normal 7-digit range (See Appendix A–Auto-Range). 16 — Construction Master IV 24192 CU IN 0.518519 CU YD 0.396436 CU M 396435.9 CU CM 0.396436 CU M...

  • Page 17: Subtracting Dimensions

    Adding Dimensions Add 11 inches to 2 feet 1 inch: 11 [Inch] [+] 2 [Feet] 1 [Inch] [=] Subtracting Dimensions Subtract 3 feet from 11 feet 7-1/2 inches: 11 [Feet] 7 [Inch] 1 [ / ] 2 [–] 3 [Feet] [=] Multiplying Dimensions Multiply 5 feet 3 inches by 11 feet 6- 1/2 inches:...

  • Page 18: Percentage Calculations

    137 [Sq] [Feet] [+] 10 [%] 150.7 SQ FT Take 20% from 552 feet 6 inches: 552 [Feet] 6 [Inch] [–] 20 [%] 442 FT 0 IN Divide 350 cubic yards by 80%: 350 [Cu] [Yds] [÷] 80 [%] 437.5 CU YD 18 — Construction Master IV...

  • Page 19: Memory Operation

    Recall total in Memory [Rcl] [M+] Display/Clear Memory [Rcl] [Rcl] Clear Memory Replace Memory Memory is semi-permanent, clearing only when you: turn off the calculator; press [Rcl] [Rcl]; press [Conv] [Rcl]; press [Conv] [x] (all clear). Examples/Keystroke 355 [M+] 255 [M+]...

  • Page 20: Paperless Tape

    Note: The Paperless Tape is cleared each time [On/C] is pressed twice, or the unit is shut off. 20 — Construction Master IV...
  • Page 21 Previewing Paperless Tape Keystroke 1. Enter a string of numbers: 4 [Feet] [+] 5 [Feet] [+] 6 [Feet] [+] 7 [Feet] [=] 2. Access the Tape function: [Rcl] [=] 3. Scroll from first value to total: 4. Scroll to last 2 values: [–] [–] 5.Exit Tape function and continue:...

  • Page 22: Examples

    18 [Feet] 7 [Inch] 1 [ / ] 2 [÷] 16 [Inch] [=] 2. Add one for the end [+] 1 [=] Note: Also applies to trusses and joists. 22 — Construction Master IV 4.615385 (or 4 whole boards) 60 (pieces) 18 FT 7-1/2 IN 13.96875 (14 studs)
  • Page 23 Masonry — Estimating Bricks How many standard bricks (3-3/4 inch by 8 inch) are required for a 36.5 feet by 8 feet wall? Keystroke 1. Find Brick Area [On/C] [On/C] 3 [Inch] 3[ / ] 4 [x] 8 [Inch] [=] 2.

  • Page 24: Area Calculations

    Using the x find the area of a square with sides of 4 feet 7 inches. Keystroke [On/C] [On/C] 4 [Feet] 7 [Inch] [Conv][ 24 — Construction Master IV ([Conv][ Display 12 FT 6 IN 195.8333 SQ FT ]) function, Display 4 FT 7 IN 21.00694 SQ FT...
  • Page 25 Area — Floor Covering You have an apartment with two rooms of carpet that need to be replaced. The room dimensions are as follows: 12 feet 4 inches by 10 feet and 14 feet 8 inches by 16 feet. How many square yards of carpet are needed and what is the total cost at $11.75 per square yard?
  • Page 26 [M+] 2. Find Total Shingles Required 1745 [Sq] [Feet] [÷] [Rcl] [Rcl] [=] 3. Add 10% for waste [+] 10 [%] 26 — Construction Master IV 1745 SQ FT 1396 (shingles) 1535.6 (1536 shingles) Display 180 SQ IN 180 SQ IN...

  • Page 27: Volume Calculations

    Volume Calculations Rectangular Containers What is the volume of a container 3 feet by 1 foot 9-5/8 inches by 2 feet 4 inches? (LxWxH) Keystroke [On/C] [On/C] 3 [Feet] [x] 1 [Feet] 9 [Inch] 5 [ / ] 8 [x] 2 [Feet] 4 [Inch] [=] Simple Concrete Volume You’re going to form up and pour your own driveway and you need to accu-...

  • Page 28: Concrete Columns

    3 [Feet] 4 [Inch] 1 [ / ] 2 [Circ] [Circ] 2. Find Total Volume [x] 11 [Feet] 6 [Inch] [=] [Conv] [Yds] [x] 5 [=] 28 — Construction Master IV 5.146605 CU YD $ 283.06 Per 3 FT 4-1/2 IN AREA 8.946176 SQ FT 102.881 CU FT 3.810408 CU YD...

  • Page 29: Complex Concrete Volume

    Complex Concrete Volume You’re going to pour an odd-shaped patio 4-1/2 inches deep with the di- mensions shown below. First, calculate the total area (by dividing the drawing into three individual rectangles) and then determine the total yards of con- crete required for this job.
  • Page 30 4. Find Total Area [Rcl] [Rcl] 5. Find Total Cubic Yards [x] 4 [Inch] 1 [ / ] 2 [=] [Conv] [Yds] 30 — Construction Master IV Display 34 FT 0 IN 918 SQ FT 4 FT 2 IN 35.41667 SQ FT 85.5 SQ FT...

  • Page 31: Volume/Weight Calculations

    Volume/Weight Calculations Concrete Footing Find the total volume* of concrete re- quired to pour five 24 inch by 12 inch footings, each 2 feet deep. Then find the weight of the concrete (use 1.5 tons per cubic yard). Keystroke [On/C] [On/C] 1.

  • Page 32: Board Feet/Lumber Calculations

    2 [x] 10 [x] 16 [BdFt] [M+] 2 [x] 12 [x] 18 [BdFt] [M+] [Rcl] [Rcl] [x] 250 [Conv] [•] Right-Triangle 32 — Construction Master IV 2 x 4 x 14 2 x 10 x 16 2 x 12 x 18 Display 26.66667 B FT...
  • Page 33 Calculations The top row of keys provide you with built-in solutions to right triangles. The solutions are available in any of the linear dimensions offered on the calcu- lator. Thus, you can solve right trian- gles directly in feet and inches, decimal feet, meters, etc.
  • Page 34 1. Enter Sides as Rise/Run 45 [Feet] 6 [Inch] [Run] 24 [Feet] 4 [Inch] [Rise] 2. Find the Square Up (Diagonal) [Diag] 34 — Construction Master IV 45’ 6” RUN 45 FT 6 IN RISE 24 FT 4 IN DIAG 51 FT 7-3/16 IN...

  • Page 35: Area For Roofing Materials

    Area for Roofing Materials You’re ordering roofing materials for a roof with a 5/12 Pitch, an overall span of 27 feet and a length of 34 feet 6 inches. How many squares, at 100 square feet each, are there? Keystroke [On/C] [On/C] 1.
  • Page 36 Keystroke [On/C] [On/C] 7 [Inch] [Pitch] 23 [Feet] 6 [Inch] [÷] 2 [=] [Run] [Diag] 36 — Construction Master IV 23’ 6” PTCH 7 IN RUN 11 FT 9 IN DIAG 13 FT 7-1/4 IN 7/12 Pitch Display...
  • Page 37 Finding Rise — (Pitch and Run Known) Though not commonly asked for, you can compute the rise or run of a right angle just as you would the diagonal. Find the rise given a 7/12 pitch and a run of 11 feet 6 inches: Keystroke [On/C] [On/C] 7 [Inch] [Pitch]...
  • Page 38 [Diag] [Diag] Etc...Continue pressing [Diag] until last stud size or "0" is reached. 38 — Construction Master IV RISE 15 FT 5 IN RUN 30 FT 7 IN RW 1 14 FT 8-15/16 IN RW 2 14 FT 0-7/8 IN...

  • Page 39: Hip/Valley & Jack Rafters

    Hip/Valley & Jack Rafters Regular (45°) Hip/Valley & Jack Rafters You’re working with a 7/12 Pitch, and half your total span is 13 feet 9 inches: (A) Find the point-to-point length for the common rafter; (B) Find the length of an adjoining hip (or valley);...

  • Page 40: Jack Rafters

    * If the entered value is not dimensioned, the calculator will assume the value as inches for English and millimeters for Metric calcu- lations. 40 — Construction Master IV RUN 30 FT 9 IN JK1 33 FT 10-3/8 IN JK2 32 FT 1-1/2 IN...
  • Page 41 Irregular (non-45°) Hip/Valley & Jack Rafters You’re working with a 7/12 pitch and half your overall span is 15 feet 7 inches. The irregular pitch is 8/12. Find the common rafter length, irregular hip/valley and jack rafter lengths. Keystroke [On/C] [On/C] 1.
  • Page 42 [Jack] [Jack] [Jack] Etc...Continue pressing [Jack] until last regular jack or “0.” is reached. 42 — Construction Master IV JK1 16 FT 3-5/16 IN JK2 14 FT 6-1/8 IN JK3 12 FT 9 IN JK4 10 FT 11-13/16 IN JK5 9 FT 2-5/8 IN...

  • Page 43: Stair Problems (Risers/Treads)

    Stair Problems (Risers/Treads) The Construction Master IV easily computes the various values pertaining to stair building. Given values for total rise, total run and a desired stair riser height, your calculator will compute the following with the press of the [Stair]...
  • Page 44 [Conv] [x] (Optional) * Risers & Treads — * An ALL CLEAR is performed here to set the calculator to its default settings. 44 — Construction Master IV RISE 3 FT 8-3/4 IN R-HT 5-1/2 IN R–SZ 5-5/8 IN R+/– – 0-1/4 IN...
  • Page 45 (7-1/2 Inch Desired Riser Height) You need to build a stairway having a floor-to-floor height of 28 feet 5-1/2 inches, a run of 35 feet 6 inches and a nominal riser height of 7-1/2 inches (default). Find the number of risers, the riser height and underage/overage, the number of treads, the tread width and underage/ overage, stringer length and...

  • Page 46: Circle Problems

    5-foot diameter. Keystroke [On/C] [On/C] 5 [Feet] [Circ] 85 [Conv] [Circ] [Feet] 46 — Construction Master IV AREA 78.53982 SQ IN CIRC 31-7/16 IN 5 FT 0 IN DIA 3 FT 8-1/2 IN ARC 3.708825 FT...

  • Page 47: Battery & Auto Shut-Off

    PPENDIX Battery & Auto Shut-Off Your calculator is powered by a single 3-Volt Lithium CR-2032 battery. This should last upwards of 800 hours of actual use (1 year plus for most peo- ple). Should the display become very dim or erratic, replace the battery.*...

  • Page 48: Area Formulas

    PPENDIX Area Formulas 48 — Construction Master IV Square Area = a Triangle Area = Circle Circumference = 2 π r Area = π r Rectangle Area = lw Ellipse Area = π ab...
  • Page 49 Surface Area & Volume Formulas Cube Surface area = 6a Volume = a Cone Surface area = π r r + h (+ π r if you add the base) Volume = π r h Sphere Surface area = 4 π r Volume = Cylinder Surface area = 2 π...

  • Page 50: Repair And Return

    Support, then Repair Services FAQs. 5. If you believe you need to return your calculator, please speak to a Calculated Industries representative for additional information! Call Toll Free: 1-800-854-8075 50 — Construction Master IV ETURN The unit can be repaired.

  • Page 51: Warranty

    ARRANTY Warranty Repair Service – U.S.A. Calculated Industries, Inc. ("CI") warrants this product against defects in materials and workman- ship for a period of one (1) year from the date of original consumer purchase in the U.S. If a defect...
  • Page 52 If you cannot reasonably have the product repaired in your area, you may contact CI to obtain current product repair information and charges, including freight and duties. 52 — Construction Master IV...
  • Page 53 Disclaimer CI MAKES NO WARRANTY OR REPRESENTA- TION, EITHER EXPRESS OR IMPLIED, WITH RESPECT TO THE PRODUCT’S QUALITY, PER- FORMANCE, MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE. AS A RESULT, THIS PRODUCT, INCLUDING BUT NOT LIMITED TO, KEYSTROKE PROCEDURES, MATHEMATI- CAL ACCURACY AND PREPROGRAMMED MA- TERIAL, IS SOLD "AS IS,"...
  • Page 54 Software copyrighted and licensed to Calculated Industries by Construction Master Technologies, LLC, 2003 Construction Master IV User’s Guide Copyrighted by Calculated Industries, 2003 Construction Master® and Calculated Industries® are registered trademarks of Calculated Industries, Inc. ALL RIGHTS RESERVED. Designed in the...
