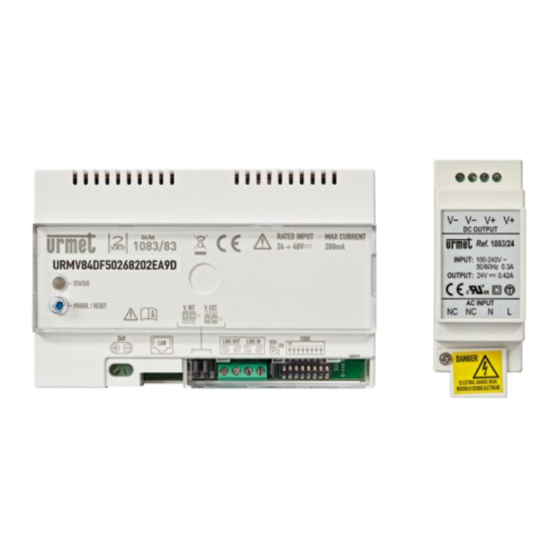

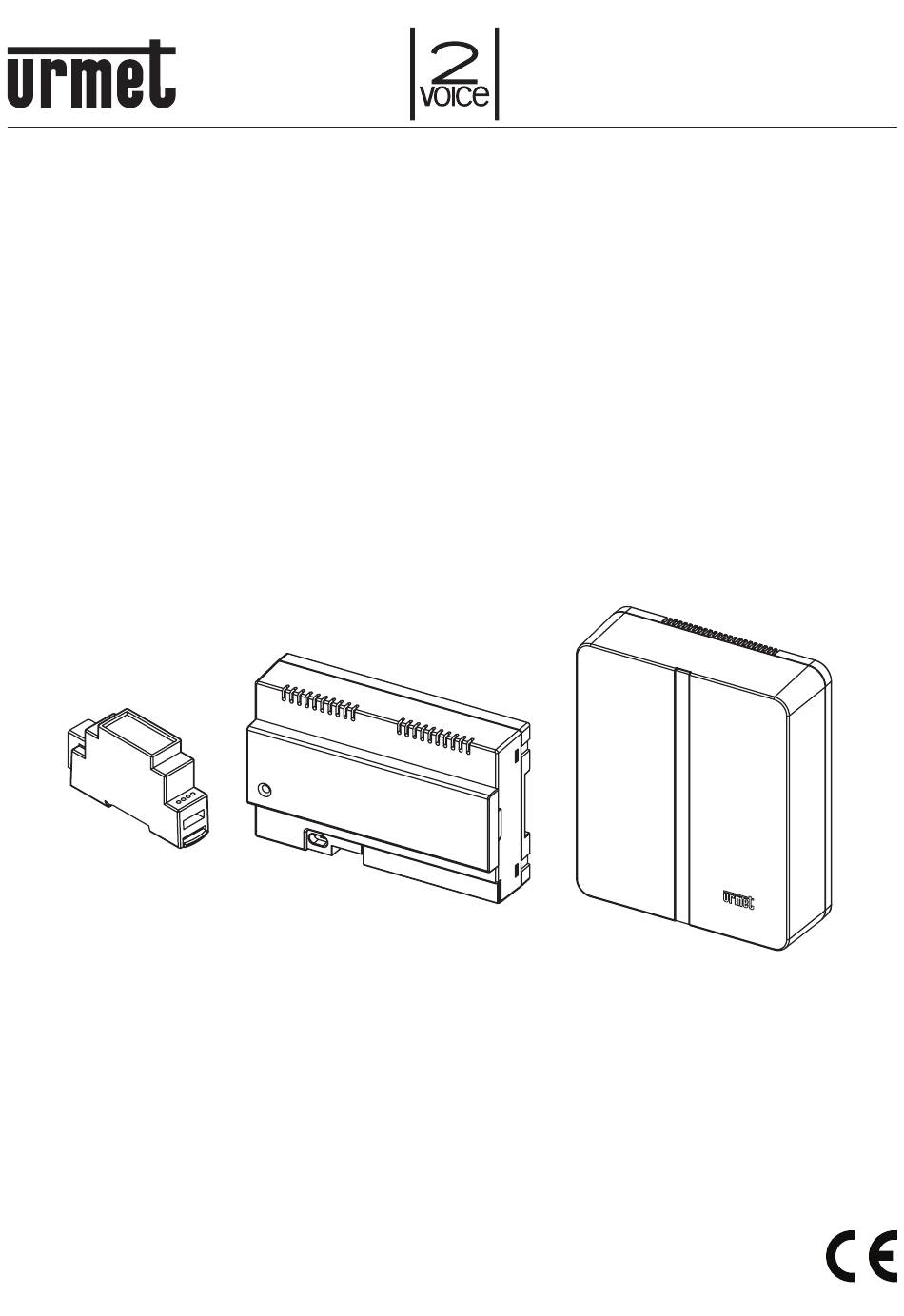

DISPOSITIVO RINVIO CHIAMATA MULTIUTENZA PER SISTEMA
MULTI-USER CALL FORWARDING DEVICE FOR 2VOICE SYSTEM
DISPOSITIF DE RENVOI D'APPEL MULTI-UTILISATEUR POUR
DISPOSITIVO DE REENVÍO DE LLAMADA MULTIUSUARIO PARA
RUFUMLEITUNGSGERÄT MIT MEHREREN NUTZERN FÜR
DOORVERBINDINGSTOESTEL VOOR MEERDERE GEBRUIKERS
(*) Kit Appoggio a parete Sch. 1083/88
Wall surface mounting kit Ref. 1083/88
Kit fi xation murale Réf. 1083/88
Kit de soporte de pared Ref. 1083/88
Kit für Aufputzmontage Typ 1083/88
Kit wandsteun Ref. 1083/88
2VOICE
SYSTÈME 2VOICE
SISTEMA 2VOICE
2VOICE-SYSTEM
IN HET 2VOICE-SYSTEEM
Sch./Ref. 1083/83
LIBRETTO DI INSTALLAZIONE
INSTALLATION BOOKLET
NOTICE D'INSTALLATION
MANUAL DE INSTALACIÓN
INSTALLATIONSANLEITUNG
INSTALLATIEHANDLEIDING
Mod.
1083
LBT20785
(*)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1083 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for urmet domus 1083

  • Page 1 2VOICE-SYSTEM DOORVERBINDINGSTOESTEL VOOR MEERDERE GEBRUIKERS IN HET 2VOICE-SYSTEEM Sch./Ref. 1083/83 (*) Kit Appoggio a parete Sch. 1083/88 Wall surface mounting kit Ref. 1083/88 Kit fi xation murale Réf. 1083/88 Kit de soporte de pared Ref. 1083/88 Kit für Aufputzmontage Typ 1083/88 Kit wandsteun Ref.
  • Page 2: Table Of Contents

    DESCRIZIONE ............................3 INSTALLAZIONE DEL DISPOSITIVO ...................... 3 3.1. IN QUADRO ELETTRICO ........................ 3 3.2. AD APPOGGIO PARETE MEDIANTE IL KIT SCH. 1083/88 (non fornito a corredo prodotto) ..4 3.3. DESCRIZIONE DEI COMPONENTI ....................5 3.4. ALIMENTATORE (a corredo) ......................6 3.5.
  • Page 3: Premessa

    ATTENZIONE! Nel caso di installazione di un con ID/codice uguale a 3. Dispositivo Rinvio Chiamata Multiutenza Sch. Il Dispositivo Rinvio Chiamata Multiutenze può 1083/83 in una colonna in cui è presente un essere installato secondo una delle seguenti dispositivo /58A in un appartamento, rivolgersi al modalità: Centro Assistenza Tecnica Urmet.
  • Page 4: Ad Appoggio Parete Mediante Il Kit Sch. 1083/88 (Non Fornito A Corredo Prodotto)

    QR-Code alla fi ne della sezione. 3.2. AD APPOGGIO PARETE MEDIANTE IL KIT SCH. 1083/88 (non fornito a corredo prodotto) 1. Fissare la base del contenitore (presente nel kit) alla scatola incasso mod. 503 o Ø 60mm (2.36”), come indicato nelle fi gure seguenti: Scatola Mod.
  • Page 5: Descrizione Dei Componenti

    3. Agganciare il dispositivo alla base rispettando secondo tempo fosse la posizione indicata. necessario rimuovere il coperchio agire con un cacciavite nelle zone indicate. 4. Effettuare collegamenti dispositivo all’impianto. L’estremità di un conduttore cordato non deve essere consolidata con una saldatura dolce nei punti in cui il conduttore è...
  • Page 6: Alimentatore (A Corredo)

    2. Pulsante PROGR./RESET: 3.4. ALIMENTATORE (a corredo) premendo pulsante per un intervallo di tempo Alimentatore in CAT II 2500 V. L’alimentatore che, • compreso tra 2s e 4s, il dispositivo verrà una volta installato, è soggetto a tensioni transitorie riavviato in modalità di confi gurazione superiori a quelle della categoria di sovratensione (mantenendo i parametri eventualmente già...
  • Page 7 A seconda del modello di posto interno 2. Sullo smartphone rispondere alla chiamata impiegato esistono 2 modalità diverse per e lasciare aperta la conversazione. effettuare la programmazione (verifi care nel 3. Sul posto interno: libretto istruzione a corredo del posto interno qual a.
  • Page 8: Caratteristiche Tecniche

    140 (~8 moduli DIN) x 90 x 60 mm apparecchiatura radio: 5.51 x 3.54 x 2.36'' Dispositivo Rinvio Chiamata Multiutenze per sistema 2Voice Sch. 1083/83 è conforme alla Il prodotto è inteso per essere direttiva 2014/53/UE. alimentato da un alimentatore esterno Il testo completo della dichiarazione di conformità...
  • Page 9: English

    DESCRIPTION ............................10 DEVICE INSTALLATION ........................10 3.1. IN A CONTROL PANEL ......................... 10 3.2. WALL MOUNTING WITH THE KIT REF. 1083/88 (not included with the product) ....... 11 3.3. DESCRIPTION OF COMPONENTS ....................12 3.4. POWER SUPPLY (provided) ......................13 3.5.
  • Page 10: Foreword

    IMPORTANT Contact the Urmet Technical Assistance Centre to install a multi-user call 3.1. IN A CONTROL PANEL forwarding device Ref. 1083/83 in a column with a /58A device in an apartment. 1. Insert the spacer behind the device in its special seat, ensuring that it is locked by the lever A.
  • Page 11: Wall Mounting With The Kit Ref. 1083/88 (Not Included With The Product)

    2. Remove the 2 covers from the device. code at the end of the section. 3.2. WALL MOUNTING WITH THE KIT REF. 1083/88 (not included with the product) 1. Fix the base of the container (supplied in the kit) to the fl ush-mounting box mod. 503 or Ø 60mm (2.36”) as shown in the following fi...
  • Page 12: Description Of Components

    3. Secure the device to the base in the If, at a later stage, it becomes necessary recommended position. to remove the cover use a screwdriver in the indicated points. 4. Carry out the device connection to the system. The end of a stranded conductor must not be consolidated with mild soldering in the points in which the conductor is subject to contact pressure.
  • Page 13: Power Supply (Provided)

    (maintaining any parameters that had already 3.4. POWER SUPPLY (provided) been confi gured); Power supply in CAT II 2500 V. Once installed, the • shorter than 2s or longer than 4s, the power supply is subject to transient voltages higher device will be restarted.
  • Page 14 A) Programming without picking up the handset (Vmodo and Miro). Per Mod. Vmodo: 1. Hold the button pressed for longer than 5 seconds. The button will blink red slowly to indicate that programming mode is selected. 2. Select Auto-insertion from the smartphone to the external unit.
  • Page 15: Technical Specifications

    Confi guration manual of the powered by an external power supply CallMe app: Ref. 1083/24 supplied, by means of 24 V terminals (6 W, 24 V). The power output complies with limited power source (LPS) specifi cations...
  • Page 16: Français

    INSTALLATION DU DISPOSITIF ......................17 3.1. DANS UN TABLEAU ÉLECTRIQUE ....................17 3.2. EN FIXATION MURALE A L’AIDE DU KIT RÉF. 1083/88 (non livré de série avec le produit) ..18 3.3. DESCRIPTION DES COMPOSANTS .................... 19 3.4. ALIMENTATION (LIVRÉE AVEC LE PRODUIT) ................20 3.5.
  • Page 17: Préambule

    (1 maître et 3 secondaires) pour un bloccato dalla leva A. maximum de 126 appartements. Le Dispositif de Renvoi d’Appel Multi-utilisateur est fourni avec une alimentation locale Réf. 1083/24. 3. INSTALLATION DU DISPOSITIF L’installation du dispositif doit être effectuée par un installateur de confi...
  • Page 18: Fixation Murale A L'aide Du Kit Réf. 1083/88 (Non Livré De Série Avec Le Produit)

    2. Retirer les 2 couvercles présents sur le dispositif. 3.2. EN FIXATION MURALE A L’AIDE DU KIT RÉF. 1083/88 (non livré de série avec le produit) Fixer la base du boîtier mural (présente dans le kit) au boîtier à encastrer mod. 503 ou Ø...
  • Page 19: Description Des Composants

    Dans le cas où dans un deuxième temps, il serait nécessaire de retirer le couvercle, intervenir à l’aide d’un tournevis à hauteur des points indiqués. 3. Fixer le dispositif à la base en veillant à respecter la position indiquée. 3.3. DESCRIPTION DES COMPOSANTS 4.
  • Page 20: Alimentation (Livrée Avec Le Produit)

    2. Bouton PROGR./RESET: en appuyant sur ce 3.4. ALIMENTATION (LIVRÉE bouton pendant une durée AVEC LE PRODUIT) • comprise entre 2 sec. et 4 sec., le dispositif est redémarré en modalité de confi guration Alimentation en CAT II 2500 V. L’alimentateur, qui (en maintenant les paramètres éventuellement une fois installé...
  • Page 21 A) Programmation sans décrochage du 3. Sur le poste interne: combiné (Mod. Vmodo et Miro). a. en maintenant enfoncé le bouton d’ouverture porte , décrocher le Pour Mod. Vmodo : 1. Sur le poste interne, appuyer et maintenir combiné 2 . Le poste interne émet la touche enfoncée pendant plus de une tonalité...
  • Page 22: Caractéristiques Techniques

    Dispositif de Renvoi d’Appel Multi-utilisateur alimenté alimentation pour système 2Voice Réf. 1083/83 externe Réf. 1083/24 fournie avec le est conforme à la directive 2014/53/UE. produit, à travers les bornes 24 V (6 W, Le texte complet de la déclaration UE de conformité...
  • Page 23: Español

    INSTALACIÓN DEL DISPOSITIVO ......................24 3.1. EN EL GABINETE DE CONTROL ....................24 3.2. APOYAR EN LA PARED CON EL KIT REF. 1083/88 (no entregado con el equipo) ..... 25 3.3. DESCRIPCIÓN DE LOS COMPONENTES ..................26 3.4. ALIMENTADOR (entregado con el equipo) ................... 27 3.5.
  • Page 24: Premisa

    4 smartphones por apartamento (1 master y 3 secundarios) por un máximo de 126 apartamentos. El Dispositivo de Reenvío de Llamada Multiusuario se entrega con un alimentador local Ref. 1083/24. 3. INSTALACIÓN DEL DISPOSITIVO 2. Insertar los ganchos B del espaciador en carril La instalación del dispositivo debe ser realizada...
  • Page 25: Apoyar En La Pared Con El Kit Ref. 1083/88 (No Entregado Con El Equipo)

    Código QR presente al fi nal de la 2. Retirar las 2 tapas del dispositivo. sección. 3.2. APOYAR EN LA PARED CON EL KIT REF. 1083/88 (no entregado con el equipo) 1. Fijar la base del recipiente (incluida en el kit) de la caja de empotrar mod.
  • Page 26: Descripción De Los Componentes

    3. Conecte el dispositivo a la base respetando la Si más adelante necesita quitar la posición indicada. cubierta utilice un destornillador en las áreas designadas. 4. Conectar el dispositivo al sistema. El extremo de un conductor trenzado no se debe reforzar con una soldadura blanda puntos donde...
  • Page 27: Alimentador (Entregado Con El Equipo)

    2. Botón PROGR./RESET: pulsando el botón por 3.4. ALIMENTADOR (entregado un intervalo de tiempo con el equipo) • entre 2s y 4s, el dispositivo se reiniciará en modo de confi guración (manteniendo los Alimentador en CAT II 2500 V. El alimentador que, parámetros ya confi...
  • Page 28 Según el modelo de aparato interior utilizado, externa a la unidad interna. existen 2 modos diferentes para hacer la 2. Con el teléfono inteligente responder la programación (comprobar el tipo que se debe llamada y dejar abierta la conversación. utilizar en el manual de instrucciones entregado 3.
  • Page 29: Características Técnicas

    Dispositivo de Reenvío de Llamada Multiusuario externo Ref. 1083/24 entregado para el sistema 2Voice código 1083/83 con el equipo, mediante bornes es conforme con la Directiva 2014/53/UE. 24 V (6 W, 24 V ), cuya alimentación El texto completo de la declaración UE de suministrada responda a los requisitos conformidad está...
  • Page 30: Deutsch

    BESCHREIBUNG ..........................31 INSTALLATION DES GERÄTS ......................31 3.1. SCHALTKASTEN .......................... 31 3.2. AUFPUTZMONTAGE MIT DEM KIT TYP 1083/88 ZU VERSORGEN (nicht im Lieferumfang des Produkts enthalten) ................32 3.3. BESCHREIBUNG DER KOMPONENTEN ..................33 3.4. NETZTEIL (im Lieferumfang enthalten) ..................34 3.5.
  • Page 31: Vorbemerkung

    Nutzern funktioniert nur zusammen Rufumleitungsgeräts mit mehreren Nutzern BN mit der /den Innenstelle/n in den 1083/83 in einer Steigleitung, in der ein Gerät /58A Wohnungen und ist stets so konfi guriert, in einer Wohnung vorhanden ist, wenden Sie sich als ob es die Innenstelle mit ID/Code 3 an den Technischen Kundendienst von Urmet.
  • Page 32: Aufputzmontage Mit Dem Kit Typ 1083/88 Zu Versorgen (Nicht Im Lieferumfang Des Produkts Enthalten)

    Die Kabel links verlaufen lassen. des Abschnitts. 2. Die Zwei auf dem Gerät befi ndlichen Deckel 3.2. AUFPUTZMONTAGE MIT entfernen. DEM KIT TYP 1083/88 ZU VERSORGEN (nicht im Lieferumfang des Produkts enthalten) 1. Die Basis des (im Kit enthaltenen) Gehäuses an der Unterputzdose Mod.
  • Page 33: Beschreibung Der Komponenten

    Falls zu einem späteren Zeitpunkt eine Abnahme des Deckels erforderlich sein sollte, mit einem Schraubendreher in den angezeigten Bereichen eingreifen. 3. Das Gerät unter Berücksichtigung der hier gezeigten Position an der Basis anbringen. 3.3. BESCHREIBUNG DER 4. Die Anschlüsse des Geräts an die Anlage KOMPONENTEN vornehmen.
  • Page 34: Netzteil (Im Lieferumfang Enthalten)

    2. PROGR./RESET-Taste: Wenn man diese 3.4. NETZTEIL Taste für einen (im Lieferumfang enthalten) • zwischen 2 Sek. und 4 Sek. liegenden Zeitraum drückt, wird Gerät Nezgerät in KAT II 2500 V. Das Netzteil, das Konfi gurationsmodus neu gestartet (wobei nach Installation Stoßspannungen über...
  • Page 35 Programmierung vorzunehmen 2. Den Anruf mit dem Smartphone beantworten und das Gespräch Bedienungsanleitung der Innenstelle überprüfen, welche Art verwendet wird): nicht beenden. 3. An der Innenstelle A) Programmierung ohne Abheben des a. die Türöffnungstaste gedrückt halten Hörers (Mod. Vmodo und Miro). 1 , den Handhörer abheben 2 .
  • Page 36: Technische Merkmale

    140 (~8 DIN-Module) x 90 x 60 mm' www.urmet.com Das Produkt ist für eine Versorgung 7. GERÄTEKONFIGURATION über externes Netzteil BN 1083/24, das im Lieferumfang enthalten ist, Scannen Sie zur Konfi guration des Geräts den mittels 24V-Klemmen (6 W, 24 V...
  • Page 37: Nederlands

    OMSCHRIJVING ........................... 38 INSTALLATIE VAN HET TOESTEL ......................38 3.1. IN DE SCHAKELKAST ........................38 3.2. MET WANDSTEUN MET BEHULP VAN DE KIT Sch. 1083/88 (niet samen met het product geleverd) .......................... 39 3.3. OMSCHRIJVING VAN DE ONDERDELEN ..................40 3.4.
  • Page 38: Voorwoord

    OPGELET! In geval van de installatie van een Doorverbindingstoestel voor meerdere Gebruikers Het Doorverbindingstoestel kan op één van de Sch. 1083/83 in een kolom met een toestel /58A volgende manieren worden geïnstalleerd: in een woning, wendt u zich tot het Centrum voor Technische Service van Urmet.
  • Page 39: Met Wandsteun Met Behulp Van De Kit Sch. 1083/88 (Niet Samen Met Het Product Geleverd)

    2. Verwijder de 2 klepjes op het toestel. einde van dit onderdeel. 3.2. MET WANDSTEUN MET BEHULP VAN DE KIT Sch. 1083/88 (niet samen met het product geleverd) 1. Bevestig de basis van de behuizing (aanwezig in de kit) in de inbouwdoos mod. 503 of Ø...
  • Page 40: Omschrijving Van De Onderdelen

    3. Bevestig het toestel aan de basis in de Als het een tweede keer nodig zou zijn aangegeven positie. om de kap te verwijderen, dient u een schroevendraaier aan te brengen op de aangegeven plaatsen. 4. Sluit het toestel aan op het systeem. Het uiteinde van een gestrande geleider mag niet zachtgesoldeerd worden op de punten waar de geleider aan contactdruk...
  • Page 41: Voedingsapparaat (Meeleverd)

    2. Knop PROGR./RESET: druk de knop in voor 3.4. VOEDINGSAPPARAAT een tijdsinterval (meeleverd) • tussen 2 sec en 4 sec, het toestel wordt opnieuw opgestart in de confi guratiemodus Voedingsapparaat in CAT II 2500 V. Zodra de voeding (waarbij eventueel geconfi...
  • Page 42 te programmeren (controleer het type in de B) Programmering met opname van het toestel (Mod. Signo). gebruiksaanwijzingen van de binnenpost): 1. Voer een oproep uit vanaf het deurstation A) Programmeren zonder de microtelefoon op naar het binnentoestel. te nemen (Mod. Vmodo en Miro). 2.
  • Page 43: Technische Eigenschappen

    Het product moet worden gevoed internetadres: www.urmet.com door externe voeding Sch. 1083/24 die samen met het product 7. APPARAAT CONFIGURATIE wordt geleverd, op de klemmen 24 V (6 W, 24 V ), die worden Om het toestel te confi gureren, houdt u de camera...
  • Page 44: Schemi Di Collegamento

    8. SCHEMI DI COLLEGAMENTO - CONNECTION DIAGRAMS SCHÉMAS DE RACCORDEMENT - ESQUEMAS DE CONEXIÓN ANSCHLUSSPLÄNE - AANSLUITSCHEMA’S 8.1. IMPIANTO CON UN DISPOSITIVO RINVIO CHIAMATA MULTIUTENZA IN UNA COLONNA MONTANTE CON DISTRIBUTORE 4 UTENZE SYSTEM WITH A MULTI-USER CALL FORWARDING DEVICE IN A RISER COLUMN WITH FOUR- USER DISTRIBUTOR SYSTÈME AVEC UN DISPOSITIF DE RENVOI D’APPEL MULTI-UTILISATEUR DANS UNE COLONNE MONTANTE AVEC DISTRIBUTEUR À...
  • Page 45: Impianto Con Un Dispositivo Rinvio Chiamata Multiutenza Collegato Ad Una Uscita Di Dorsale Da Interfaccia Di Colonna O Da Interfaccia Posti Esterni

    8.2. IMPIANTO CON UN DISPOSITIVO RINVIO CHIAMATA MULTIUTENZA COLLEGATO IN UNA USCITA DI DORSALE DA INTERFACCIA DI COLONNA O DA INTERFACCIA POSTI ESTERNI SYSTEM WITH A MULTI-USER CALL FORWARDING DEVICE IN A BACKBONE OUTPUT FROM COLUMN INTERFACE OR FROM DOOR UNIT INTERFACE SYSTÈME AVEC UN DISPOSITIF DE RENVOI D’APPEL MULTI-UTILISATEUR CONNECTÉ...
  • Page 46: Legenda Schemi

    Column interface Ref. 1083/50 1083/50 or Ref. 1083/53 or door unit interface Ref. 1083/75 or 1083/76 Interface de colonne Réf. 1083/50 ou Réf. 1083/53 ou Interface de postes externes Réf. 1083/75 ou 1083/76 Interfaz de columna Ref. 1083/50 o Ref. 1083/53 o Interfaz de microaltavoces Ref.
  • Page 47: Note Legate Agli Schemi

    8.4. NOTE LEGATE AGLI SCHEMI NOTES ON DIAGRAMS REMARQUES CONCERNANT LES SCHÉMAS NOTAS REFERIDAS A LOS ESQUEMAS HINWEISE IN VERBINDUNG MIT DEN PLÄNEN OPMERKINGEN OMTRENT DE SCHEMA’S VX.008 (Rev. A) Connettere le apparecchiature ad un fi ltro e a un dispositivo di protezione per la linea d’alimentazione. Connect the devices to a fi...
  • Page 48 ITALIANO DIRETTIVA 2012/19/UE DEL PARLAMENTO EUROPEO E DEL CONSIGLIO del 4 luglio 2012 sui rifi uti di apparecchiature elettriche ed elettroniche (RAEE) Il simbolo del cassonetto barrato riportato sull’apparecchiatura o sulla sua confezione indica che il prodotto alla fi ne della propria vita utile deve essere raccolto separatamente dagli altri rifi...

This manual is also suitable for:

1083/83
