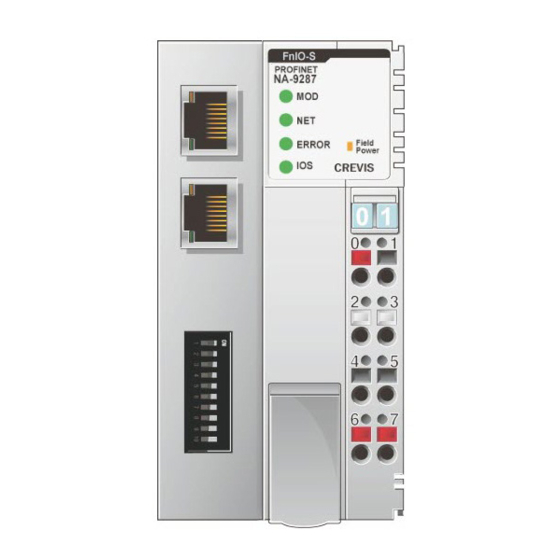

- Page 1 Page 1 FnIO S-Series FnIO S – Series NA-9287 Quick start manual Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
- Page 2 Page 2 FnIO S-Series DOCUMENT CHANGE SUMMARY PAGE REMARKS DATE EDITOR Document 2018. 10. 31. SJ Hwang Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
-
Page 3: Table Of Contents
Node ID setting ….....…............4 Dip switch …..................4 TIA Portal V14 …......…........... 5 Import GSDML file …....…..........5 Hardware configuration setting …............ 6 I/O test …..................9 Change I/O parameter …..............11 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 4: Node Id Setting
Page 4 FnIO S-Series 1. Node ID setting 1.1 Dip switch - You can set the Node ID with dip switch. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 5: Tia Portal V14
Page 5 FnIO S-Series 2. TIA Portal V14 2.1 Import GSDML file (1) Option → Manage general station description files (GSD) (2) Check GSDML file → Install Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 6: Hardware Configuration Setting
Page 6 FnIO S-Series 2.2 Hardware configuration setting (1) Add new device Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... - Page 7 Page 7 FnIO S-Series (2) Network view → Add NA-9287 → Connect (3) Change module name → Add I/O modules → Check IEC V2.2 LLDP - Module name : NA9287-XX(Node ID) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
- Page 8 Page 8 FnIO S-Series (4) Download to device Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
-
Page 9: I/O Test
Page 9 FnIO S-Series 2.3 I/O test (1) Watch and force tables → Force table (2) Create new force table → Check ‘F’ → Force all Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... - Page 10 Page 10 FnIO S-Series (3) Watch and force table → Watch table (4) Create new watch table → Start monitoring Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
-
Page 11: Change I/O Parameter
Page 11 FnIO S-Series 2.4 Change I/O parameter (1) Device view → Check module → General → Module parameters (2) Download to device Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
