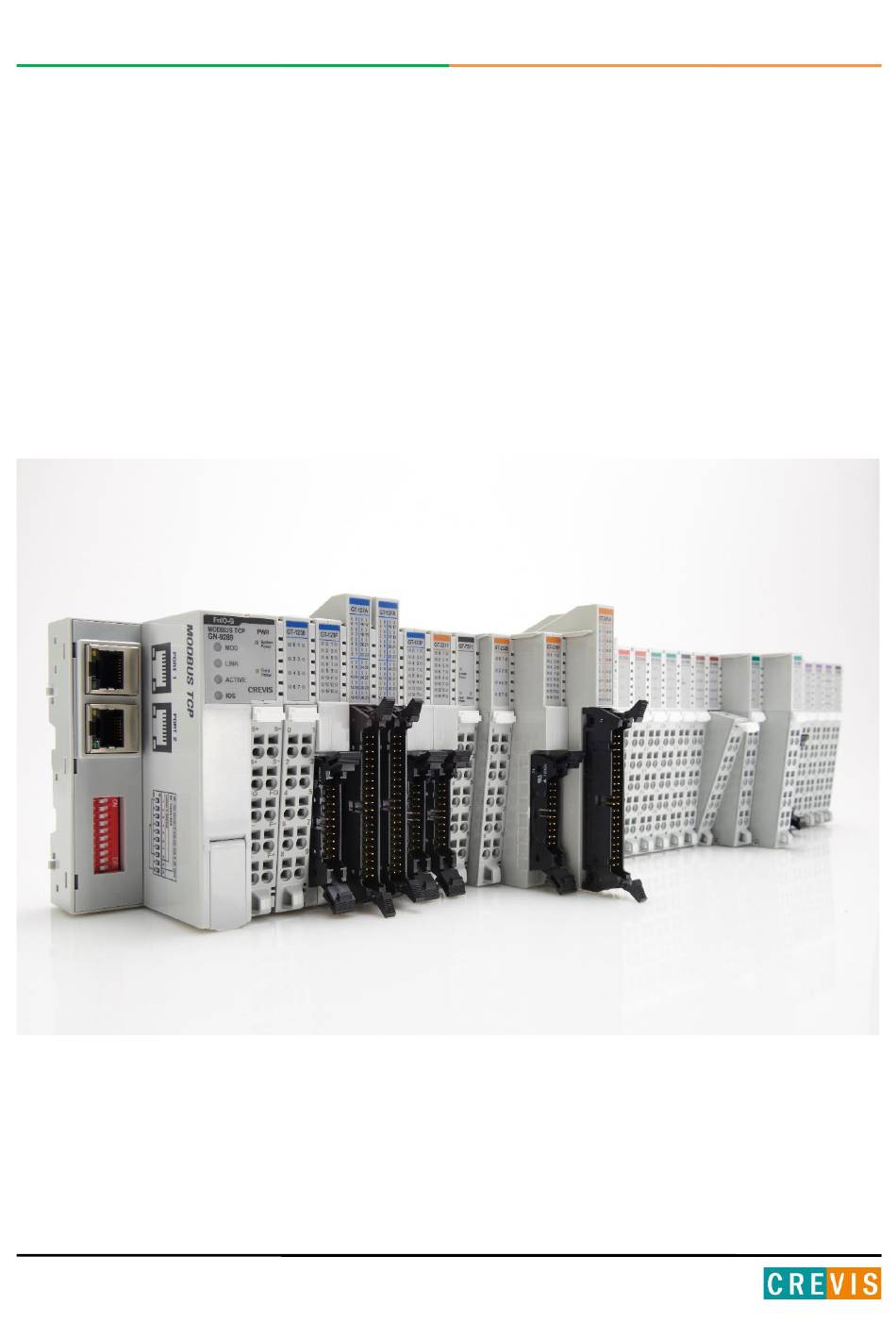

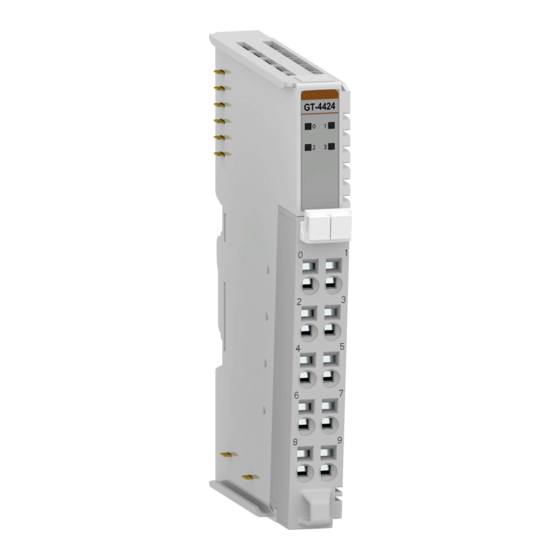

- Page 1 FnIO G-Series Analog Output Module GT-4xxx User Manual Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
- Page 2 FnIO G-Series DOCUMENT CHANGE SUMMARY PAGE REMARKS DATE EDITOR 1.00 New Document 18/07/30 JY,Hyun 1.01 Add Product 19/01/16 JY,Hyun GT-4424, GT-4464, GT-4428, GT-4468, GT-442F 1.02 Add Product 20/08/20 JY,Hyun GT-446F, GT-447F, GT-449F, GT-4524, GT-4564 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
-
Page 3: Table Of Contents
3.2.8. Parameter Data ......................21 3.3. GT-4428 ..........................22 3.3.1. Wiring Diagram ......................22 3.3.2. LED Indicator ......................23 3.3.3. Channel Status LED ....................23 3.3.4. Environment Specification ..................24 3.3.5. Specification ....................... 25 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... - Page 4 3.6.5. Specification ....................... 46 3.6.6. Data Value / Voltage ....................47 3.6.7. Mapping Data into the Image Table................48 3.6.8. Parameter Data ......................49 3.7. GT-447F ..........................50 3.7.1. Wiring Diagram ......................50 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
- Page 5 3.10. GT-4564 ........................... 70 3.10.1. Wiring Diagram......................70 3.10.2. LED Indicator ......................71 3.10.3. Channel Status LED ....................71 3.10.4. Environment Specification ..................72 3.10.5. Specification ......................73 3.10.6. Data Value / Voltage ....................74 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
- Page 6 4.2. GT-4xxF(HIROSE Connector) ..................77 4.3. GT-4xxF(New 18RTB) ....................... 78 5. Mounting ..........................79 5.1. I/O Inserting and Removing Devices ................79 5.2. RTB (Removable Terminal Block) ................... 80 6. G-Bus Pin Description ......................81 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
-
Page 7: Important Notes
In no event will CREVIS be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment. -
Page 8: Safety Instruction
Avoid touching conductive components, GBUS Pin. 1.1.3. Certification c-UL-us UL Listed Industrial Control Equipment, certified for U.S. and Canada See UL File E235505 CE Certificate EN 61000-6-2; Industrial Immunity EN 61000-6-4; Industrial Emissions Reach, RoHS (EU, CHINA) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 9: Analog Output Module List
Analog Output 16 Channels, Voltage Output, 0~10V, 12Bits 447F GT-449F Analog Output 16 Channels, Voltage Output, 0~10V, 16Bits 449F GT-4524 Analog Output 4 Channels, Voltage Output, -10~10V, 12Bits 4524 GT-4564 Analog Output 4 Channels, Voltage Output, -10~10V, 16Bits 4564 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 10: Specification
Signal Description Signal Description Pin No. Analog Output Channel 0 Analog Output Channel 1 Analog Output Channel 2 Analog Output Channel 3 Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 11: Led Indicator
Green 3.1.3. Channel Status LED Status To indicate Normal Operation No Output Channel Off No Output Output Channel Output Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 12: Environment Specification
DNVGL-CG-0039 : 2016/6 Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 13: Specification
Voltage Range* : 18~30Vdc Power Dissipation : Max. 35mA @ 24Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm(7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 14: Data Value / Voltage
FnIO G-Series 3.1.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 15: Mapping Data Into The Image Table
00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 1 Not used Byte 2 Fault Value Low Byte Byte 3 Not used Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 16: Gt-4464
Signal Description Signal Description Pin No. Analog Output Channel 0 Analog Output Channel 1 Analog Output Channel 2 Analog Output Channel 3 Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 17: Led Indicator
3.2.3. Channel Status LED Status To indicate Normal Operation No Output Channel Off No Output Output Channel Green Output Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 18: Environment Specification
DNVGL-CG-0039 : 2016/6 Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 19: Specification
Voltage Range* : 18~30Vdc Power Dissipation : Max. 35mA @ 24Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm(7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 20: Data Value / Voltage
FnIO G-Series 3.2.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H1FFF H3FFF H7FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 21: Mapping Data Into The Image Table
00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 1 Not used Byte 2 Fault Value Low Byte Byte 3 Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 22: Gt-4428
Analog Output Channel 1 Analog Output Channel 2 Analog Output Channel 3 Analog Output Channel 4 Analog Output Channel 5 Analog Output Channel 6 Analog Output Channel 7 Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 23: Led Indicator
3.3.3. Channel Status LED Status To indicate Normal Operation No Output Channel Off No Output Output Channel Green Output Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 24: Environment Specification
DNVGL-CG-0039 : 2016/6 Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 25: Specification
Voltage Range : 18~30Vdc Power Dissipation : Max. 70mA @ 24Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm(7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 26: Data Value / Voltage
FnIO G-Series 3.3.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 27: Mapping Data Into The Image Table
Analog Output Ch7 High byte -. Output Module Data - 16byte Output Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 28: Parameter Data
Byte 1 00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 2 Fault Value Low Byte Byte 3 Not used Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 29: Gt-4468
Analog Output Channel 1 Analog Output Channel 2 Analog Output Channel 3 Analog Output Channel 4 Analog Output Channel 5 Analog Output Channel 6 Analog Output Channel 7 Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 30: Led Indicator
3.4.3. Channel Status LED Status To indicate Normal Operation No Output Channel Off No Output Output Channel Green Output Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 31: Environment Specification
Based on IEC 60068-2-6 DNVGL-CG-0039 : Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 32: Specification
Voltage Range : 18~30Vdc Power Dissipation : Max. 70mA @ 24Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm(7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 33: Data Value / Voltage
FnIO G-Series 3.4.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H1FFF H3FFF H7FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 34: Mapping Data Into The Image Table
Analog Output Ch7 High byte -. Output Module Data - 16byte Output Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 35: Parameter Data
Channel 4 Byte 1 00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 2 Fault Value Low Byte Byte 3 Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 36: Gt-442F
Analog Output Channel 10 Analog Output Channel 11 Analog Output Channel 12 Analog Output Channel 13 Analog Output Channel 14 Analog Output Channel 15 Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 37: Led Indicator
LED Function / Description LED Color Status LED Green 3.5.3. Channel Status LED Status To indicate G-Bus Status Disconnection Green Connection Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 38: Environment Specification
Based on IEC 60068-2-6 DNVGL-CG-0039 : Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Verical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 39: Specification
Voltage Range* : 18~26.4Vdc Power Dissipation : Max. 120mA @ 24Vdc, Load(2K) Wiring Connector Type, up to AWG22 Module Connector : HIF3BA-20D-2.54DSA Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 40: Data Value / Voltage
FnIO G-Series 3.5.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 41: Mapping Data Into The Image Table
Analog Output Ch15 High byte -. Output Module Data - 32byte Output Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 42: Parameter Data
Byte 3 00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 4 Fault Value Low Byte Byte 5 Not used Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 43: Gt-446F
Analog Output Channel 10 Analog Output Channel 11 Analog Output Channel 12 Analog Output Channel 13 Analog Output Channel 14 Analog Output Channel 15 Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 44: Led Indicator
LED Function / Description LED Color Status LED Green 3.6.3. Channel Status LED Status To indicate G-Bus Status Disconnection Green Connection Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 45: Environment Specification
DNVGL-CG-0039 : 2016/6 Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 46: Specification
Voltage Range* : 18~26.4Vdc Power Dissipation : Max. 100mA @ 24Vdc, Load(2K) Wiring Connector Type, up to AWG22 Module Connector : HIF3BA-20D-2.54DSA Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 47: Data Value / Voltage
FnIO G-Series 3.6.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H1FFF H3FFF H7FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 48: Mapping Data Into The Image Table
Analog Output Ch15 High byte -. Output Module Data - 32byte Output Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 49: Parameter Data
Channel 12 Byte 3 00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 4 Fault Value Low Byte Byte 5 Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 50: Gt-447F
Analog Output Channel 9 Analog Output Channel 10 Analog Output Channel 11 Analog Output Channel 12 Analog Output Channel 13 Analog Output Channel 14 Analog Output Channel 15 Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 51: Led Indicator
LED Function / Description LED Color Status LED Green 3.7.3. Channel Status LED Status To indicate G-Bus Status Disconnection Green Connection Field Power Error All Channel Repeat Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 52: Environment Specification
Based on IEC 60068-2-6 DNVGL-CG-0039 : Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 53: Specification
Voltage Range : 18~30Vdc Power Dissipation : Max. 150mA @ 24Vdc, Load(2K) Wiring Connector Type, up to AWG22 Module Connector : HIF3BA-20D-2.54DSA Weight Module Size 12mm x 109mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 54: Data Value / Voltage
FnIO G-Series 3.7.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H03FF H07FF H0FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 55: Mapping Data Into The Image Table
Analog Output Ch15 High byte -. Output Module Data - 32byte Output Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 56: Parameter Data
Byte 3 00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 4 Fault Value Low Byte Byte 5 Not used Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 57: Gt-449F
Analog Output Channel 9 Analog Output Channel 10 Analog Output Channel 11 Analog Output Channel 12 Analog Output Channel 13 Analog Output Channel 14 Analog Output Channel 15 Output Channel Common(AGND) Output Channel Common(AGND) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 58: Led Indicator
LED Function / Description LED Color Status LED Green 3.8.3. Channel Status LED Status To indicate G-Bus Status Disconnection Green Connection Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 59: Environment Specification
DNVGL-CG-0039 : 2016/6 Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 60: Specification
Voltage Range : 18~30Vdc Power Dissipation : Max. 140mA @ 24Vdc, Load(2K) Wiring Connector Type, up to AWG22 Module Connector : HIF3BA-20D-2.54DSA Weight Module Size 12mm x 109mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 61: Data Value / Voltage
FnIO G-Series 3.8.6. Data Value / Voltage Voltage Range : 0~10V Voltage 0.0V 2.5V 5.0V 10.0V Data(Hex) H0000 H1FFF H3FFF H7FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 62: Mapping Data Into The Image Table
Analog Output Ch15 High byte -. Output Module Data - 32byte Output Data Analog Input Ch0 Analog Input Ch1 Analog Input Ch2 Analog Input Ch3 Analog Input Ch4 Analog Input Ch5 Analog Input Ch6 Analog Input Ch7 Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 63: Parameter Data
Channel 12 Byte 3 00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 4 Fault Value Low Byte Byte 5 Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 64: Gt-4524
Pin No. Analog Output Channel 0 Analog Output Channel 1 Analog Output Channel 2 Analog Output Channel 3 Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Frame Ground Frame Ground Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 65: Led Indicator
Output Channel 3 Green 3.9.3. Channel Status LED Status To indicate Normal Operation No Output Value Green Normal Operation Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 66: Environment Specification
Based on IEC 60068-2-6 DNVGL-CG-0039 : Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 67: Specification
Voltage Range* : 18~30Vdc Power Dissipation : Max. 30mA @ 24Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm(7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 68: Data Value / Voltage
FnIO G-Series 3.9.6. Data Value / Voltage Voltage Range : -10~10V Voltage -10.0V -5.0V 5.0V 10.0V Data(Hex) HF800 HFC00 H03FF H07FF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 69: Mapping Data Into The Image Table
00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 1 Not used Byte 2 Fault Value Low Byte Byte 3 Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 70: Gt-4564
Pin No. Analog Output Channel 0 Analog Output Channel 1 Analog Output Channel 2 Analog Output Channel 3 Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Output Channel Common(AGND) Frame Ground Frame Ground Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 71: Led Indicator
Output Channel 3 Green 3.10.3. Channel Status LED Status To indicate Normal Operation No Output Value Green Normal Operation Field Power Error All Channel Repeat the Green and Off Field Power is unconnected. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 72: Environment Specification
Based on IEC 60068-2-6 DNVGL-CG-0039 : Vibration Class B, 4g Industrial Emissions EN 61000-6-4/ All : 2011 Industrial Immunity EN 61000-6-2 : 2005 Installation Position Vertical and horizontal installation is available Product Cerifications CE, UL, FCC Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 73: Specification
Voltage Range* : 18~30Vdc Power Dissipation : Max. 30mA @ 24Vdc Wiring I/O Cable Max. 2.0mm (AWG 14) Torque 0.8Nm(7lb-in) Weight Module Size 12mm x 99mm x 70mm Refer to ‘Environment Specification' Environment Condition Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 74: Data Value / Voltage
FnIO G-Series 3.10.6. Data Value / Voltage Voltage Range : -10~10V Voltage -10.0V -5.0V 5.0V 10.0V Data(Hex) H8000 HC000 H3FFF H7FFF Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 75: Mapping Data Into The Image Table
00 : Fault Value 01 : Hold last state 10 : Low Limit 11 : high Limit Byte 1 Not used Byte 2 Fault Value Low Byte Byte 3 Fault Value high Byte Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 76: Dimension
FnIO G-Series 4. Dimension 4.1 GT-4xx4, GT-4xx8 (mm) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 77: Gt-4Xxf(Hirose Connector)
FnIO G-Series 4.2. GT-4xxF(HIROSE Connector) (mm) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 78: Gt-4Xxf(New 18Rtb)
FnIO G-Series 4.3. GT-3xxF(New 18RTB) (mm) Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 79: Mounting
- As above figure in order to safeguard the G-Series module from jamming, it should be fixed onto the DIN rail with locking level. To do so, fold on the upper of the locking lever. To pull out the G-Series module, unfold the locking lever as below figure. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 80: Rtb (Removable Terminal Block)
There is a locking switch on the RTB for the easy combination and easy removal. " Easy combination and easy removal for IO modules on the din rail through One Touch Locking Switch. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr... -
Page 81: G-Bus Pin Description
GBUS TX - GBUS RX + GBUS RX - Field Power (GND) Field Power (VCC) Do not touch data and field power pins in order to avoid soiling and damage by ESD noise. Copyright(C) CREVIS Co.,Ltd Support +82-31-899-4599 URL: www.crevis.co.kr...
