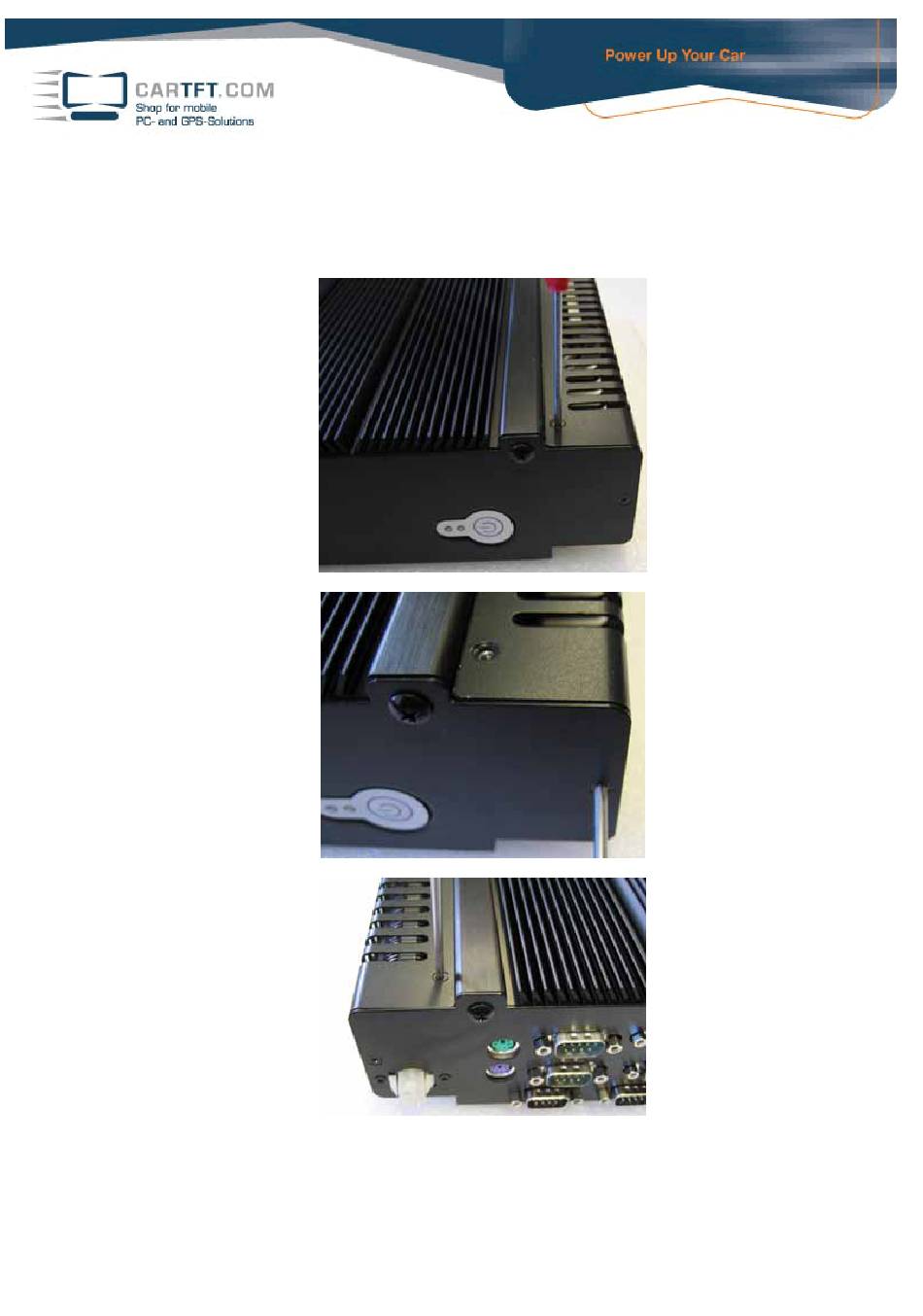

- Page 1 Assembling CarTFT FleetPC-2 Remove all the screws as following:...
- Page 4 Remove the left cover Now you are able to remove the harddrive cover and set it apart for a while.
- Page 5 Remove the case cover...
- Page 6 Start to remove the Heatpipe. It is fixed with the following two screws ( Note: One end is shorter than the other one )
- Page 7 Pull the Headpipe out (in the direction of the arrows) Please do not use some tools to do this. If you just move the heatpipe a litte bit up and down, you will be able to remove it easily. Now, do the same on the other side.
- Page 8 Remove the IDE Cable Remove the ATX Cable. Remove the screws of the Mainboard.
- Page 9 Also remove the USB, Power and LED Cable...
- Page 10 Take the Mainboard out of the case and set it apart. At the bottom of the mainboard you will find the screws for the cooling unit. You have to remove this screws to place the CPU on the right place.
- Page 11 Remove the cooling unit at the top of the Mainboard. Insert CPU (there is only one possible way)
- Page 12 Fix the CPU on the showed screw Take the cooling pad and put it on the CPU...
- Page 13 Now, you can bring up the cooling unit back to the CPU and fix the screws...
- Page 14 Place the RAM to the slot in push it down till the RAM is engaged...
- Page 15 Put the mainboard back into the case and fix it.
- Page 16 Connect the ATX- and DIE-Cable with the mainboard Now, connect Power/LED- and USB-Cable...
- Page 17 (like you see on the pictures below) Connect the included SATA Cable Lead the other end of the SATA-Cable downwards (do not lead to much cable on the backside, because later it will stands in the way )
- Page 18 Connect the headpipe´s with the cooling unit...
- Page 19 VERY IMPORTANT! There must be cooling paste on the top of the cooling unit to.
- Page 21 Set up the Cover of the enclosure back on the top...
- Page 22 Fix the covers of the Heatpipes...
- Page 25 You can assamble the System with, for example, a CF–Card (The slot for this card is on the backside.)
- Page 26 Fix the Harddrive as following:...
- Page 28 Connect the Harddrive with the SATA-Cables. Now you can screw the bottom of the enclosure.
- Page 29 Remove the isolation from the Powercables. Connect Keyboard, Monitor and your other external devices.
- Page 30 Now you can run your System and install the operating system, you like.
