Prepac HFQ-0500-1 Assembly Instructions Manual

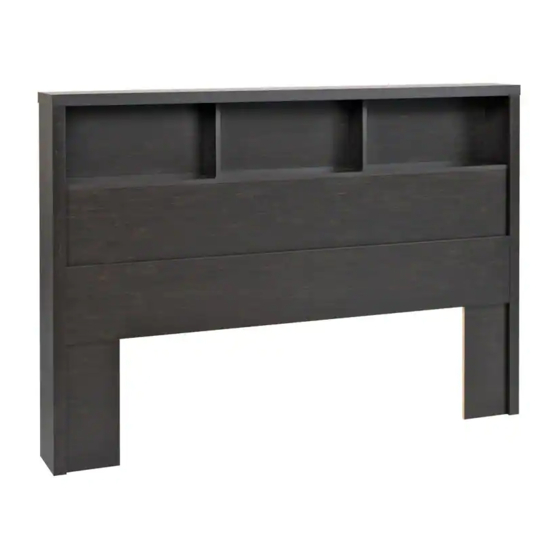

Double / queen headboard
Hide thumbs

Advertisement

Quick Links

Download this manual

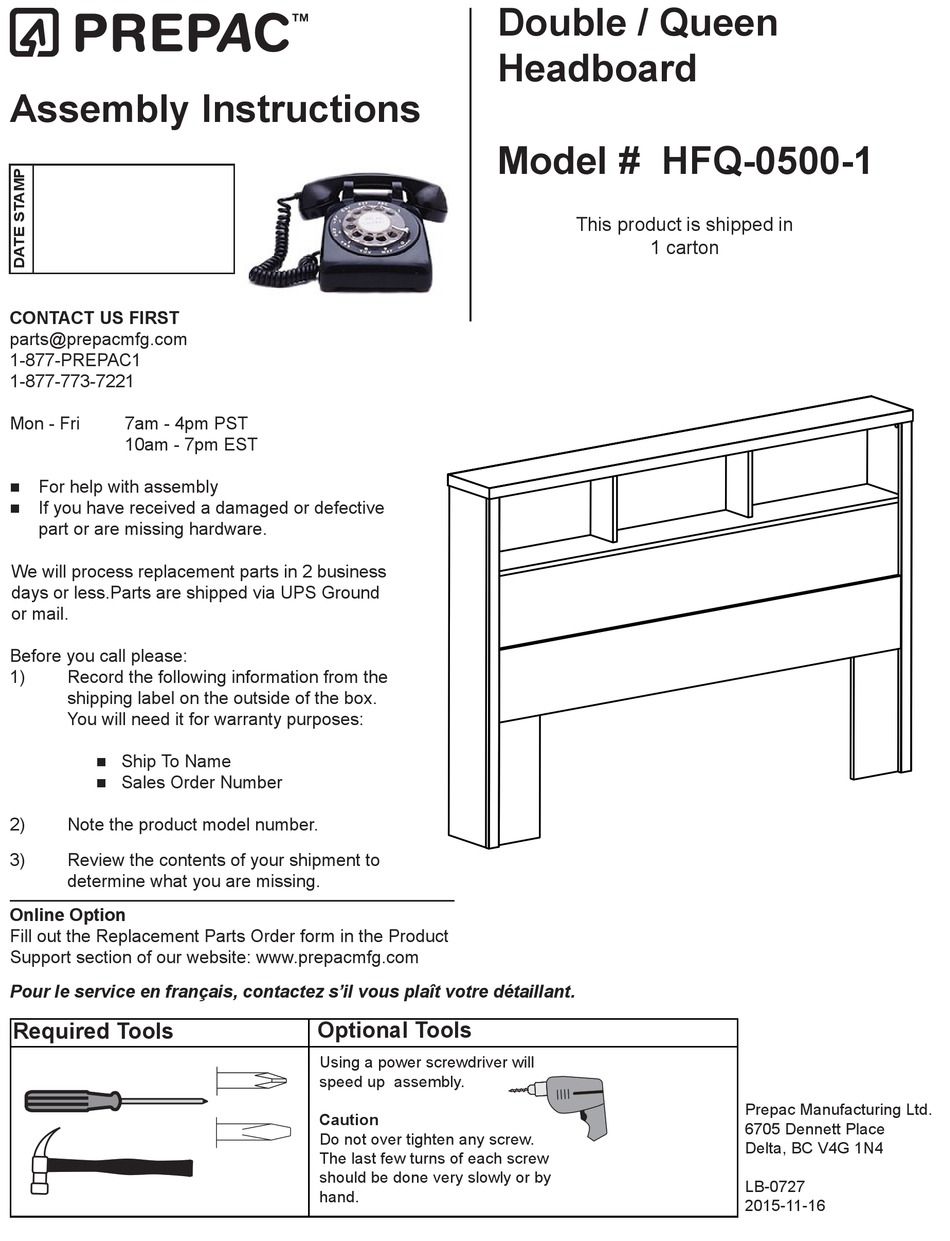

Assembly Instructions
CONTACT US FIRST
parts@prepacmfg.com
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
For help with assembly
n
If you have received a damaged or defective
n
part or are missing hardware.
We will process replacement parts in 2 business
days or less.Parts are shipped via UPS Ground
or mail.
Before you call please:
1)
Record the following information from the
shipping label on the outside of the box.
You will need it for warranty purposes:
Ship To Name
n
Sales Order Number
n
2)
Note the product model number.
3)
Review the contents of your shipment to
determine what you are missing.
Online Option
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com
Pour le service en français, contactez s'il vous plaît votre détaillant.
Required Tools
Optional Tools
Using a power screwdriver will
speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by
hand.
Double / Queen
Headboard
Model # HFQ-0500-1
This product is shipped in
1 carton
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0727
2015-11-16

Advertisement

loading
Need help?

Need help?

Do you have a question about the HFQ-0500-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Prepac HFQ-0500-1

Summary of Contents for Prepac HFQ-0500-1

  • Page 1 Double / Queen Headboard Assembly Instructions Model # HFQ-0500-1 This product is shipped in 1 carton CONTACT US FIRST parts@prepacmfg.com 1-877-PREPAC1 1-877-773-7221 Mon - Fri 7am - 4pm PST 10am - 7pm EST For help with assembly If you have received a damaged or defective part or are missing hardware.

  • Page 2: Hardware Identification

    Hardware Identification Identification de quincaillerie 24mm Green 15mm Zinc Cam (large) (28) Cam Cover Cap (10) Twister Dowel (28) Ferrure en zinc grand Capuchons de came Goujon de torsion vert RM-0103 RM-0807 ebony / ébène* RM-0501 RM-0809 white / blanc Confirmat Screws (4) ¾”...
  • Page 3 Headboard Parts Pièces de tête de lit Top (1) Inner Gables (2) Backer (1) Dessus pignons intérieur TP-10045-H GA-10047-H BB-10038-H washed black / noir délavé washed black / noir délavé washed black / noir délavé TP-10045-W GA-10047-W BB-10038-W white / blanc white / blanc white / blanc Fixed Shelf (1)
  • Page 4 Step 1 Estimated Time: 10 Minutes Insert cams into the back of the headboard panel (H7) Screw 2 of the green twister dowels into the and the bottom of the fixed shelf (H4) where shown fixed shelf (H4) where shown Insérez les ferrures dans le dos du panneau de tête de Vissez deux des goujons de torison vert à...
  • Page 5 Step 2 Estimated Time: 10 Minutes Screw green twister dowels into the side moldings (H11) where shown Vissez les goujons de torison vert aux moulures latéral (H11) comme montre Green Twister Dowel Goujon de torsion vert Insert cams into the the left (H5) & right (H6) sides Insérez les ferrures aux côtés gauche (H5) et droit (H6) FRONT DEVANT...
  • Page 6 Step 3 Estimated Time: 5 Minutes Insert cams into the holes on the top of the left (H5) right (H6) sides Insérez les ferrures dans les trous en Haut haut du côtés gauche (H5) et droite Green Twister Dowel (H6) Goujon de torsion vert Screw green twister dowels into the left (H5) and right (H6) sides where shown...
  • Page 7 Step 4 Estimated Time: 10 Minutes Attach front stabilizer (H8) IN FRONT of the headboard panel (H7) Attachez le renforcement avant (H8) À L’AVANT du panneau de tête de lit (H7) #8 -1 1/8” Washerhead Wood Screws Front Vis en bois no.8 Devant 1-1/8 po.
  • Page 8 Step 5 Estimated Time: 10 Minutes Attach Left Lower Stabilizer (H9) to the Left Side (H5) and the Right Lower Stabilizer (H10) to the Right Side (H6). Tighten cams using a flathead screwdriver. Attachez le renforcement inférieure GAUCHE (H9) au côté GAUCHE (H5) et attachez le renforcement inférieure DROITE (H10) au côté...
  • Page 9 Step 6 Estimated Time: 10 Minutes Insert cams into the Inner Gables (H2) where shown Insérez les ferrures aux pignons intérieur (H2) comme montre. Attach inner gables (H2) to fixed shelf (H4) with Confirmat screws. MAKE SURE THE FINISHED EDGE IS FACING THE FRONT Attachez les pignons intéieures (H2) à...
  • Page 10 Step 7 Estimated Time: 10 Minutes Screw green twister dowels into the top (H1) where shown Vissez les goujons de torison vert au dessus (H1) comme montre Green Twister Dowel Goujon de torsion vert Attach the top (H1) then, tighten cams. Attachez le dessus (H1) puis, serrez les ferrures Page 10 of 12...
  • Page 11 Attach backer with nails Step 8 Estimated Time: 5 Minutes Attachez le dos avec les clous Line up the backer (H3) on the back of the headboard so that each edge is 2mm inset from the outer sides. Make sure the finished side is facing the front Alignez le dos (H3) à...
  • Page 12 Now, secure the backer to the fixed shelf and each side. Maintenant, fixez le dos à la tablette fixe et de Holes are NOT pre-marked. chaque côté. Les trous ne sont pas pré-marquées. Position the nail in the center of the edge and hammer Positionner le clou dans le centre du bord et d’un the nail straight in.
