PROFESSIONAL
This appliance is for
ASSEMBLY, CARE AND USE INSTRUCTIONS
Household use only.
READ CAREFULLY
This is not a
IMPORTANT:
commercial appliance.
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

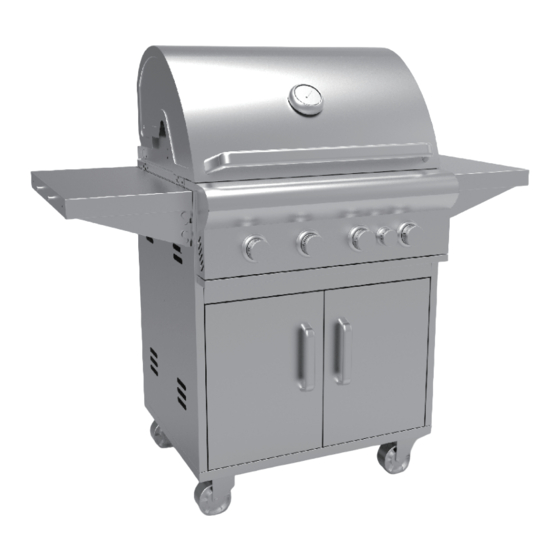

Ardor Gas Grill w/Cart
Models: 43110, 43111 & 43112
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at: 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only,
or Email CustomerService@landmann-usa.com
