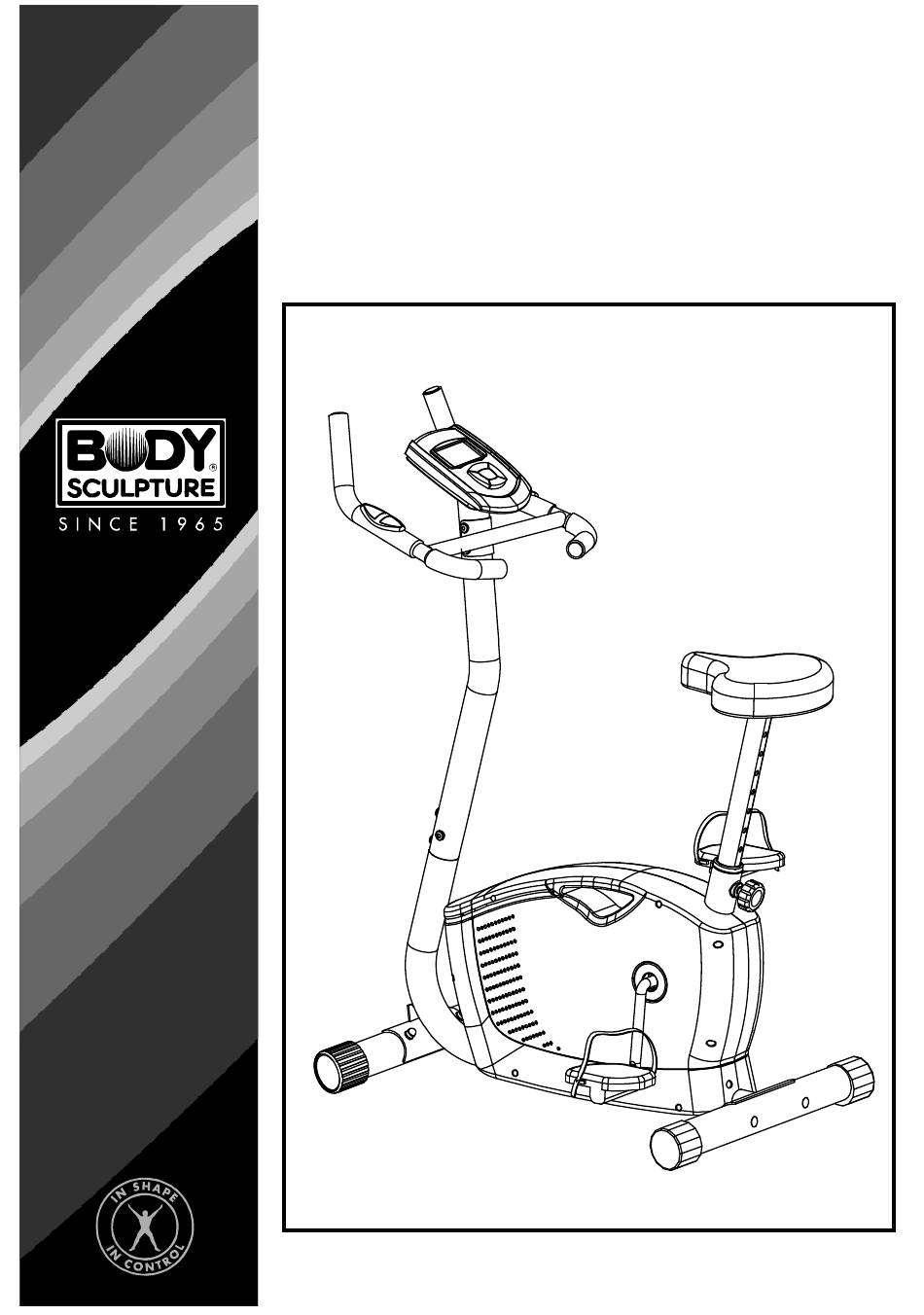

- Page 1 BC-6730G-HB PROGRAMMABLE MAGNETIC BIKE www.body--sculpture.com...
- Page 3 Important Safet y Information ………………… 1 Exploded-View Assembly Drawing ………………..2 …………………………………………… Parts List ……………………………… 5 Assembly Instructions ………………………………… 7 Exercise Instructions Exercise Computer …………………………………… 8 Troubleshooting ……………………………………… 10 ……………………………………….. 11 Exercise Notes...
- Page 4 Please keep this manual in a safe place for easy reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
- Page 5 EXPLODED-VIEW ASSEMBLY DRAWING...
- Page 7 PARTS LIST PART DESCRIPTION QTY PART DESCRIPTION End cap Cross bolt (ST4.2*25) Foam grip Pedal (L+R) Handlebar Chain cover (L+R) Pulse sensor Adaptor Screw (ST4.2*20) Power cable Foam grip Crank cover Pulse sensor wire Computer Washer Cross bolt (M5*10) Bushing Front post Bearing Curved Washer (φ8)
- Page 8 STEP 1 Attach the Front stabilizer and Rear stabilizer (pt.17) & (pt.54) to the Main Frame (pt.52) using four sets of Carriage Bolt (M8*65) (pt.15), Curved washer (φ8) (pt.11) and Nut (M8) (pt.16). STEP 2 Take the Front Post (pt.10) and connect the Lower Cable wire (pt.14) and the Upper Cable wire (pt.
- Page 9 STEP 4 Attach the seat (pt.61) to the support tube (pt.58) using three sets of flat washer (φ8) (pt.60) and Lock nut (M8) (pt.59). Attach the support tube (pt.58) to the Main frame (pt.52) using Adjustable knob (pt.56). STEP 5 Attach the Pedals (pt.33L&33R) by screwing them into the corresponding crank arm (pt.51L&...
- Page 10 Using your PROGRAMMABLE MAGNETIC BIKE will provide you with several benefits. It will improve your physical fitness, tone your muscles and, in conjunction with a calorie-controlled diet, help you lose weight. 1.The Warm-Up Phase This stage helps get the blood flowing around the body and the muscles working properly. It will also reduce the risk of cramp and muscle injury.
- Page 11 Programmable Training Computer Key Functions START/STOP: 1. Start & Pauses workouts. 2. Start body fat measurement and quit the body fat program. 3.Operates only when in stop mode. Holding key for 3 seconds will reset all function value to be zero. DOWN: Decrease value of selected workout parameter: TIME, DISTANCE, etc.
- Page 12 2.When Calories is 50~9950, it will count down to 0. 10~99 ±1 Target HR will be based on Age. When Heart Rate exceeds Target H.R, the number of Heart Rate will flash in programs (P1-P9) Program Operation Manual Selecting “Manual” using UP OR DOWN KEY then pressing ENTER KEY . 1 parameter “Time”...
- Page 13 Selecting “TARGET H.R.” using UP OR DOWN KEY then pressing SET KEY . 1 parameter “Time” will flash so value can be adjusted using UP OR DOWN KEY .Press SET KEY to save value & move to next parameter to be adjusted. **(If user sets up the target time to workout, then the next parameter of Distance can not be adjusted) Continue through all desired parameters, pressing START/STOP to start workout.
- Page 15 COPYRIGHT ©2009 BY BODY SCULPTURE INTERNATIONAL EUROPE LTD ALL RIGHTS RESERVED.UNAUTHORIZED DUPLICATION IS A VIOLATION OF LAW.
