Summary of Contents for Pentair STA-RITE DYNA-PRO

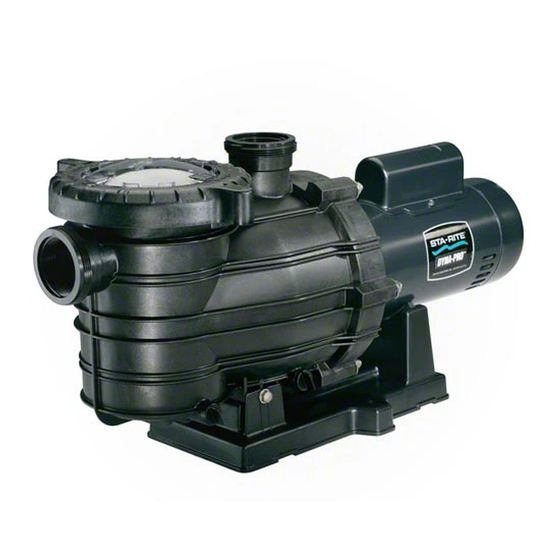

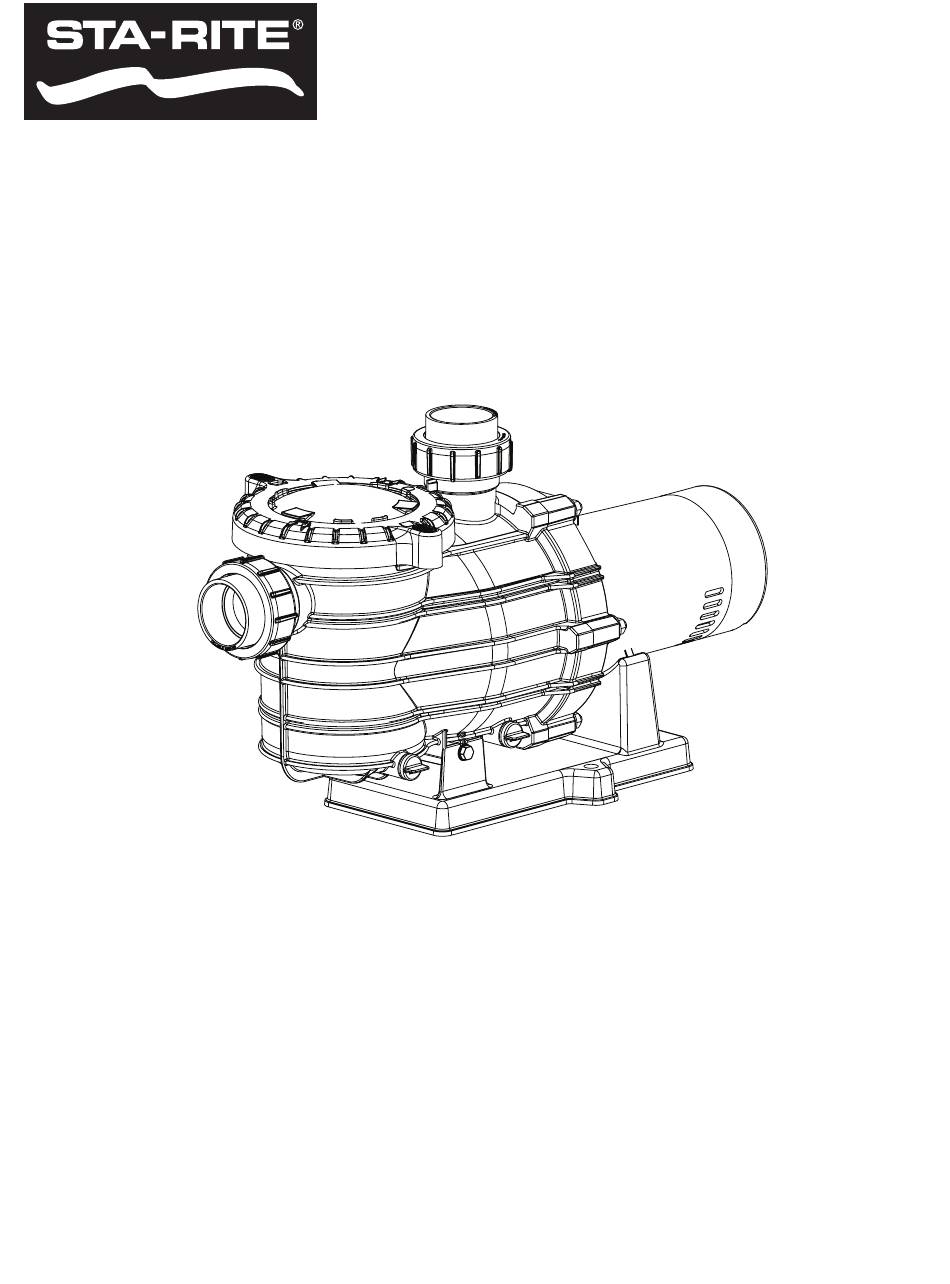

- Page 1 DYNA-PRO ® SELF-PRIMING POOL/SPA PUMP INSTALLATION AND USER’S GUIDE IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
- Page 2 CUSTOMER SERVICE / TECHNICAL SUPPORT If you have questions about ordering Pentair Aquatic Systems replacement parts, and pool products, please contact: Customer Service and Technical Support, USA Sanford, North Carolina (8 A.M. to 4:30 P.M. ET) (8 A.M. to 4:30 P.M. — Eastern/Pacific Times)
- Page 3 230 VAC charge even when there is no This guide provides installation and operation instructions for this pump. power to the unit. Consult Pentair with any questions regarding this equipment. • The pump is not submersible. Attention Installer: This guide contains important information about the •...
- Page 4 For Installation of Electrical Controls at Equipment Pad (ON/OFF Switches, Timers and Automation Load Center) Warnings and safety instructions for Pentair Aquatic Systems pumps Install all electrical controls at equipment pad, such as and other related products are available at: on/off switches, timers, and control systems, etc.
- Page 5 If installed in an enclosure/pump house, the suction and discharge pipes. enclosure must have adequate ventilation and 6. For most installations Pentair recommends installing a valve air circulation to keep the temperature inside the on both the pump suction and return lines so that the pump enclosure at or below the maximum rated ambient can be isolated during routine maintenance.
- Page 6 Pump Suction Requirements The pump suction system must provide protection against the hazard of suction entrapment or hair entrapment/entanglement. Pump suction is hazardous and can trap and drown or disembowel bathers. Do not use or operate swimming pools, spas, or hot tubs if a suction outlet cover is missing, broken, or loose.
-
Page 7: Electrical Installation
Note: If AC power is supplied by a GFCI circuit breaker, the pump should be wired on its own independent circuit 1/2” NPT RECEPTACLE unless the pump is operated in tandem with a Pentair FOR LIQUID TIGHT salt chlorine generator. -
Page 8: Priming The Pump
OPERATION DO NOT run the pump dry. If the pump is run dry, the mechanical seal will be damaged and the pump will start leaking. If this occurs, the damaged seal must be replaced. ALWAYS maintain proper water level. If the water level falls below the suction port, the pump will draw air through the suction port, losing the prime and causing the pump to run dry, resulting in a damaged seal. - Page 9 Start-up for Winterized Equipment 1. Remove any temporary weather protection placed around system for shutdown. 2. Follow filter manufacturer’s instructions for reactivation of the filter. 3. Inspect all electrical wiring for damage or deterioration over the shutdown period. Have a qualified serviceman repair wiring as needed.
- Page 10 MAINTENANCE This pool pump must be installed by a licensed or certified electrician or a qualified pool serviceman in accordance with the National Electrical Code and all applicable local codes and ordinances. Improper installation will create an electrical hazard which could result in death or serious injury to pool users, installers, or others due to electrical shock, and may also cause damage to property.
- Page 11 Pump Reassembly / Installing New Seal IMPORTANT: The ceramic seal of the pump’s shaft seal 9. Mount the diffuser onto the seal plate with the seven must be clean and free of dirt, grease and dust before (7) screws and washers. Torque screws to 10-14 inch/ installing.
-
Page 12: Troubleshooting
TROUBLESHOOTING Read and understand all safety and operating instruction in this manual before servicing the Dyna-Pro Self-Priming Pool/ ® Spa Pump. Only qualified personnel should electrically test the pump motor. Problem Possible Cause Corrective Action Failure to Pump Suction leaks / lost Inspect for leaks in the suction piping. -
Page 13: Replacement Parts
REPLACEMENT PARTS Box A Box A Motor Table Model No. Motor (Key No. 1) Single Speed 115/230/60/1 MPRA6D-204L A100DLL Box A MPRA6E-205L A100ELL MPRA6F-206L 1-1/2 A100FLL For quick disconnect pipe connections, MPEA6D-204L AE100DLL purchase separately: MPEA6E-205L AE100ELL Pkg. 188 2” Slip 1/2 Union Kit or MPEA6F-206L 1-1/2 AE100FLL... - Page 14 Parts List MPEA6G-207L MPEA6F-206L MPE6F-207L MPEAA6G-208L MPEA6D-204L MPEA6E-205L MPE6E-206L MPEA6YG-207L MPE6G-208L t r a Description Qty. MPRA6D-204L MPRA6E-205L MPRA6YF-206L MPRA6G-207 MPE6G-208L Screw #10-32x1/2" U30-692SS U30-692SS U30-692SS U30-692SS U30-692SS Bonding ug U17-568 U17-568 U17-568 U17-568 U17-568 Slinger 17351-0009 17351-0009 17351-0009 17351-0009 17351-0009 Seal Plate C3-184P...
- Page 15 NOTES...
- Page 16 Pentair Water Pool and Spa, Inc. Those names and brands may be the trademarks or registered trademarks of those third parties.
