- Page 1 Differential Probe GDP-040D for GDS-200 & GDS-300 Series QUICK START GUIDE GW INSTEK PART NO. 82DP-040D0MA1 ISO-9001 CERTIFIED MANUFACTURER...
- Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will Corporation. The information in this manual was correct at the time of printing. However, Good Will continues to improve its products and therefore reserves the right to change the specifications, equipment, and maintenance procedures at any time without notice.
-
Page 3: Afety Instructions
AFETY INSTRUCTIONS This section contains the basic safety symbols that may appear on the accompanying Quick Start Guide or on the instrument. Safety Symbols These safety symbols may appear in the user manual or on the instrument. Warning: Identifies conditions or practices that could result in injury or loss of life. -
Page 4: Etting Started

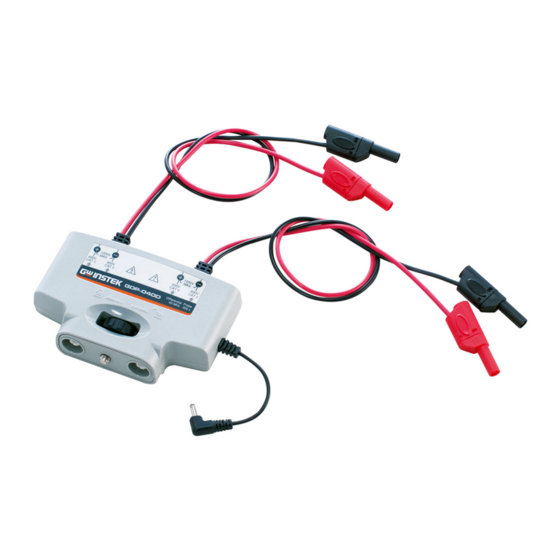

600V CATII input. • Features DC~40MHz bandwidth • x200 attenuation. • Dual channel • Locked attachment for GDS-200/300 • Integrated test leads • Package Contents and Accessories Standard Accessories Item Part Number Quick Start Guide Differential Probe GDP-040D Test Lead GTL-131 x2... - Page 5 Overview Front Panel Test leads Lock wheel CH1 input DC input CH2 input Item Description CH1 output. 600V CAT II CH2 output. 600V CAT II CH1 Input CH1 input from the GDS-200/300 CH1 terminal. CH2 Input CH2 input from the GDS-200/300 CH2 terminal. Lock wheel Used to fix the differential probe to the GDS-200/300.
- Page 6 Connection Connect the CH1 and CH2 inputs to the gds-200/300 channel inputs. Make sure the face of the differential probe is top-side up, as shown below. Turn the lock wheel to the left to fix the probe to the scope. Connect the DC input to the external power port on the GDS- 200/300.
- Page 7 PECIFICATIONS The specifications apply when the oscilloscope is powered on for at least 30 minutes under +20°C~+30°C. Differential Probe Specs 2 channels Channels DC-40MHz (x200) Bandwidth (-3dB) x200 Attenuation ± 2% Accuracy 600Vrms for x200 Voltage Input Range Differential: 2MΩ//1.2pF Input Impedance Between terminal and GND: 1MΩ//2.4pF ≤±3V...
- Page 8 EC Declaration of Conformity GDP-040D Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Law of Member States relating to Electromagnetic Compatibility (2004/108/EC) and Low Voltage Equipment Directive (2006/95/EC). For the evaluation regarding the Electromagnetic...
