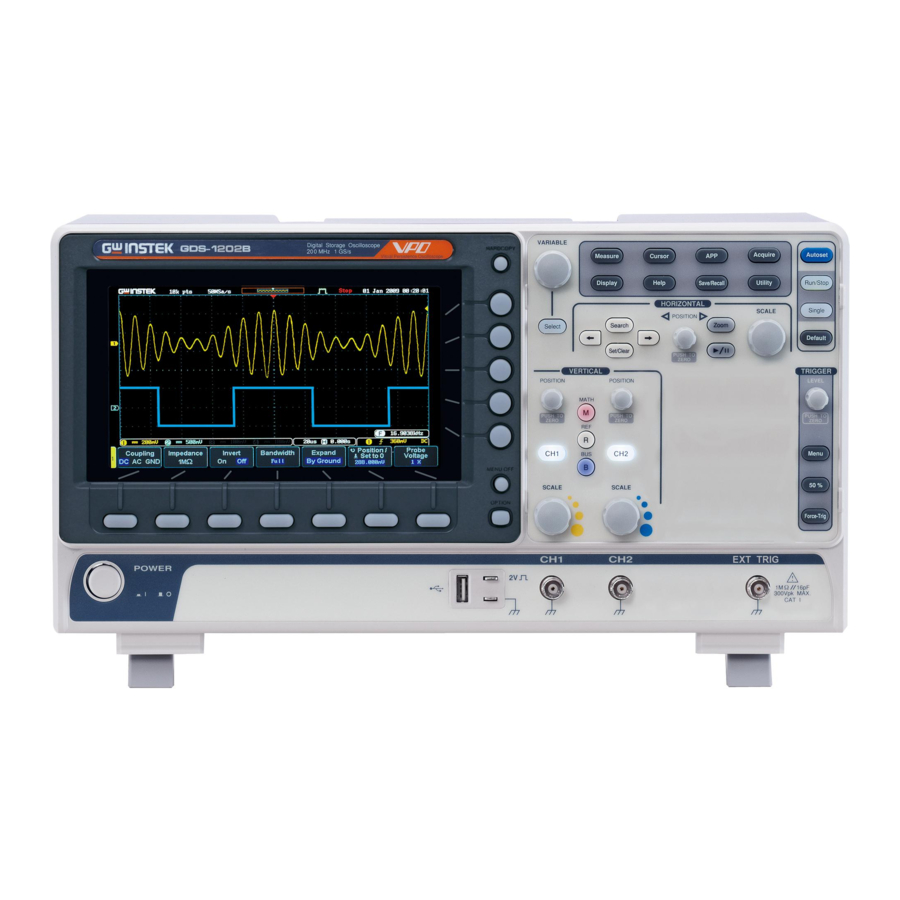

GW Instek GDS-1000B Series User Manual
  1. Manuals
  2. Brands
  3. GW Instek Manuals
  4. Measuring Instruments
  5. GDS-1000B Series
  6. User manual

GW Instek GDS-1000B Series User Manual

Datalog app
Hide thumbs Also See for GDS-1000B Series:

Advertisement

Quick Links

Download this manual
Datalog App
GDS-1000B Series
USER MANUAL
GW INSTEK PART NO. V1.00
ISO-9001 CERTIFIED MANUFACTURER

Advertisement

loading
Need help?

Need help?

Do you have a question about the GDS-1000B Series and is the answer not in the manual?

Questions and answers

Related Manuals for GW Instek GDS-1000B Series

Summary of Contents for GW Instek GDS-1000B Series

  • Page 1 Datalog App GDS-1000B Series USER MANUAL GW INSTEK PART NO. V1.00 ISO-9001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents GETTING STARTED ............5 App Overview ......... 5 Installing Optional Apps ......6 Uninstalling Optional Apps ....8 Running Applications ......9 USING THE DATA LOGGER ..........10...
  • Page 4 GDS-1000B Series Datalog App User Manual...

  • Page 5: Getting Started

    ETTING STARTED App Overview The GDS-1000B comes pre-installed with a number Background of apps. Optional apps can also be downloaded from the GW Instek website free of charge at www.gwinstek.com. The Go/No-Go application can be Go/No-Go Included used to set threshold boundaries Applications for input signals.

  • Page 6: Installing Optional Apps

    GDS-1000B Series Datalog App User Manual The Data Log app will log Data Log waveform data and/or screenshots at set intervals for set duration of time. Installing Optional Apps The GDS-1000B has optional software apps that Background can be installed to add additional functionality to the DSO.
  • Page 7 GETTING STARTED 6. Use the Variable knob and Select VARIABLE key to navigate to the DataLog_1KB.gz file on the USB drive. 7. Press the Select key to start the installation. Select 8. The installation will complete in a few seconds. When finished a pop-up message will appear asking you to restart the GDS-1000B.

  • Page 8: Uninstalling Optional Apps

    GDS-1000B Series Datalog App User Manual Uninstalling Optional Apps Any optional apps that were installed can be Background uninstalled from the APP menu. Pre-installed apps, such as the Go-NoGo app cannot be uninstalled. 1. Press the APP key. Steps 2. Highlight the app that you want to VARIABLE uninstall with the Variable knob.

  • Page 9: Running Applications

    GETTING STARTED Running Applications The APP function can host a number of different Background applications, some of which as pre-installed and some of which are installed as optional extras. Panel Operation 1. Press the APP key. 2. Press APP from the bottom menu. 3.

  • Page 10: Using The Data Logger

    GDS-1000B Series Datalog App User Manual SING THE DATA LOGGER The Data Log app will log the current waveform Background data or screenshot at set intervals for a set duration of time. Basic Features: Log up to 100 hours of images or waveform ...
  • Page 11 Using the Data Logger 2. Press Setup. 3. Press Log to from the side menu and select what type of data to log, waveform data or screenshots. Image, Waveform Log to 4. Press Source from the side menu and select a source channel to log if waveforms are to be logged.
  • Page 12 GDS-1000B Series Datalog App User Manual 8. Press Data Logging from the bottom Turn On/Off menu and toggle Data Logging on. The data/images will be saved to the designated file path when Data Logging is turned on. The Data Logging app will remain running in the background even if other functions are turned on.
