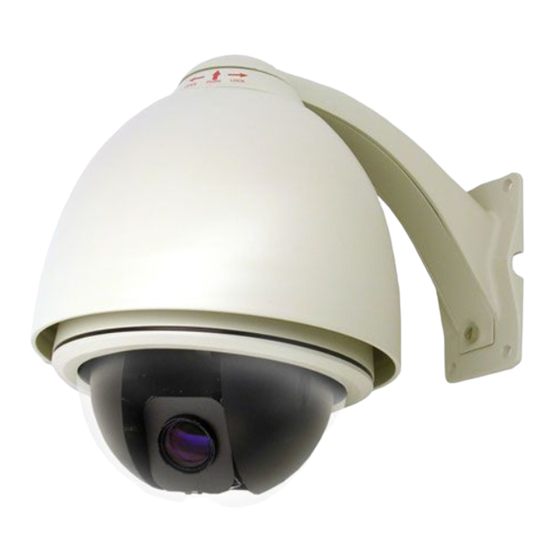

COP-USA CD55NV-22 Specification Sheet

High Speed Dome
Product Features :
• 6" High Speed Color Dome
• 352X Super Had CCD (Day & Night)
• 480 Lines
• Wall / Ceiling Bracket Included
• Heater / Blower Built-in
• IP66
Video :
Optical Technology Base:
Picture Elements (H x V in mm):
Resolution:
Mini Illumination:
S/N Ratio:
Shutter Speed:
Zoom:
Focus:
Focal Lenght:
Iris:
White Balance: White Balance:
Video Output:
PTZ:
Pan Speed:
Tilt Speed:
Pan Range:
Tilt Range:
Presets:
Communication:
IP Grade:
Weight:
Operating Temperature:
Power:
Power Supply:
Power Consumption:
High Resolution Color 1/4" Super HAD CCD
EIA/NTSC: 510H x 492V
CCIR/PAL: 500H x 582V
480 Lines
0.03 Lux F1.6
>48dB
1/6~1/30000s
22X Optical 16X Digital
Auto / Manual
F1.6~3.7 - f=3.9~85.8mm
Auto / Manual
Auto / Manual Auto / Manual
1Vp-p , 75 Ω
0~300°/sec
0~120°/sec
360° continuously
90° (180° w/ auto flip)
128 presets (Total)
Multiprotocol, RS485
IP66
8Lbs / 4Kg
-35°C to +55°C (w/ Housing)
AC24V +/- 1.50
20VA
CD55NV-22
