COP-USA CD35-VPW Specifications

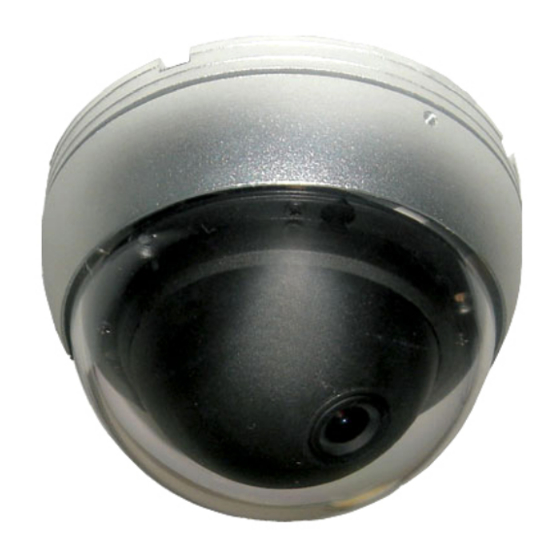

CD35-VPW - Outdoor Vandalproof High Resolution Varifocal
Type:
Pick-up device:
Picture elements :
Horizontal resolution:
Vertical frequency :
Minimun Illumination:
Synchronization:
S/N Ratio :
Electronic shutter:
White Balance:
Lens:
Gamma:
Video Output :
Auto Gain Control:
Power supply :
Power Consumption:
Color:
Weight :
Storage Temperature :
Operation Temperature :
Color Dome Camera
1/3" CCD image sensor
EIA//NTSC: 512 H x 492 V - CCIR/PAL: 512 H x 582 V
420 TVL
EIA//NTSC: 59.94 HZ - CCIR/PAL: 50 HZ
0.01 Lux
Internal
>48 dB
Up to 1/100.000 sec
Auto
3.6mm Lens
0.45
1Vp-p, 75Ohms
Auto
DC12V (+/_10%)
150 mA (+/_10%)
Silver
1.5lb-680g
-30°C ~ 60°C
-10°C ~ 45°C
