COP-USA CD15-VPSL Specification Sheet

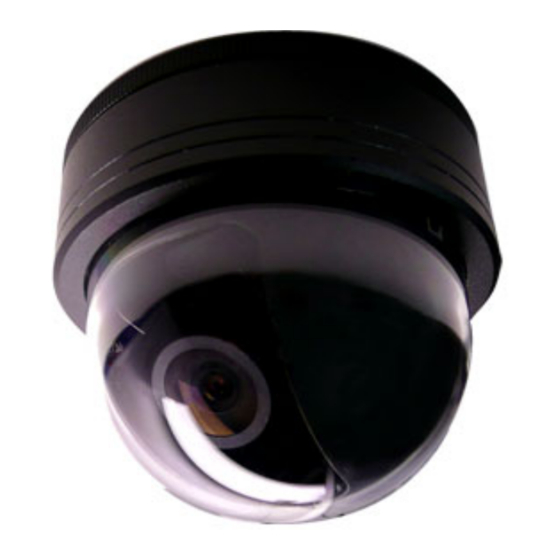

Mini Dome Camera
Product Features :
• 1/3" High Resolution Color CCD Camera
• 520TVL 0.001 Low Lux
• Super Wide Angle 2.5mm Lens
• DC12V 150mA
Specification:
Type:
Pickup device:
Picture Elements H x V:
Horizontal Resolution:
Vertical Frequency:
Scanning Systems:
Mini Illumination:
Synchronization:
S/N Ratio:
Electronic Shutter:
White Balance:
Lens:
Gamma:
Video Output:
Auto Gain Control:
Power Supply:
Power Consumption:
Color:
Storage Temperature:
Operating Temperature:
* Pictures and specifications are subject to change without prior notice
CD15-VPSL
MINI Color Dome Camera
1/3" Color CCD image Sensor
NTSC: 512 x 492
520 Lines
NTSC: 59.94Hz
2:1 Interlace
0.001 LUX
Internal
> 48dB
Up to 1/100000sec
Auto White Balance
2.5mm Lens
0.45
1 Vp-p , 75Ω
Auto
DC12V (±10%)
150mA (±10%)
Black
-30°C to +60°C
-10°c to +50°C
PAL: 512 x 582
PAL: 50Hz
CD15-VPSL
