Timing Diagram For 120° Motor - DART Controls 730 Control Series Instruction Manual

SENSOR 1 (S1) TO
TERMINAL P1-9
SENSOR 2 (S2) TO
TERMINAL P1-10
SENSOR 3 (S3) TO
TERMINAL P1-11
PHASE 1 (θ1) TO
TERMINAL P1-2
PHASE 2 (θ2) TO
TERMINAL P1-3
PHASE 3 (θ3) TO
TERMINAL P1-1

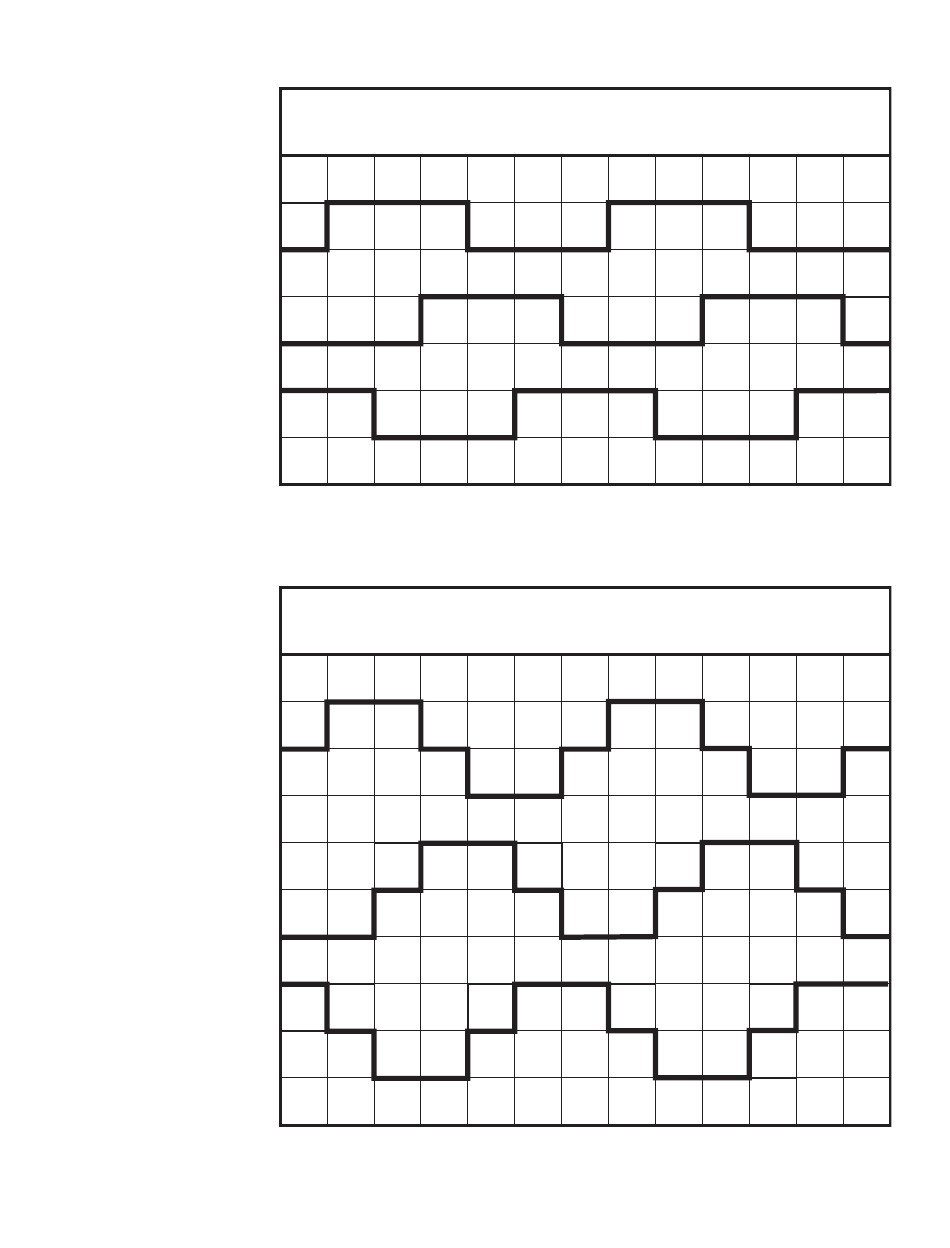

Timing Diagram for 120° Motor
INPUT - 120
OUTPUT - 120
o
ELECTRICAL MOTOR
o
ELECTRICAL MOTOR
Figure 4
