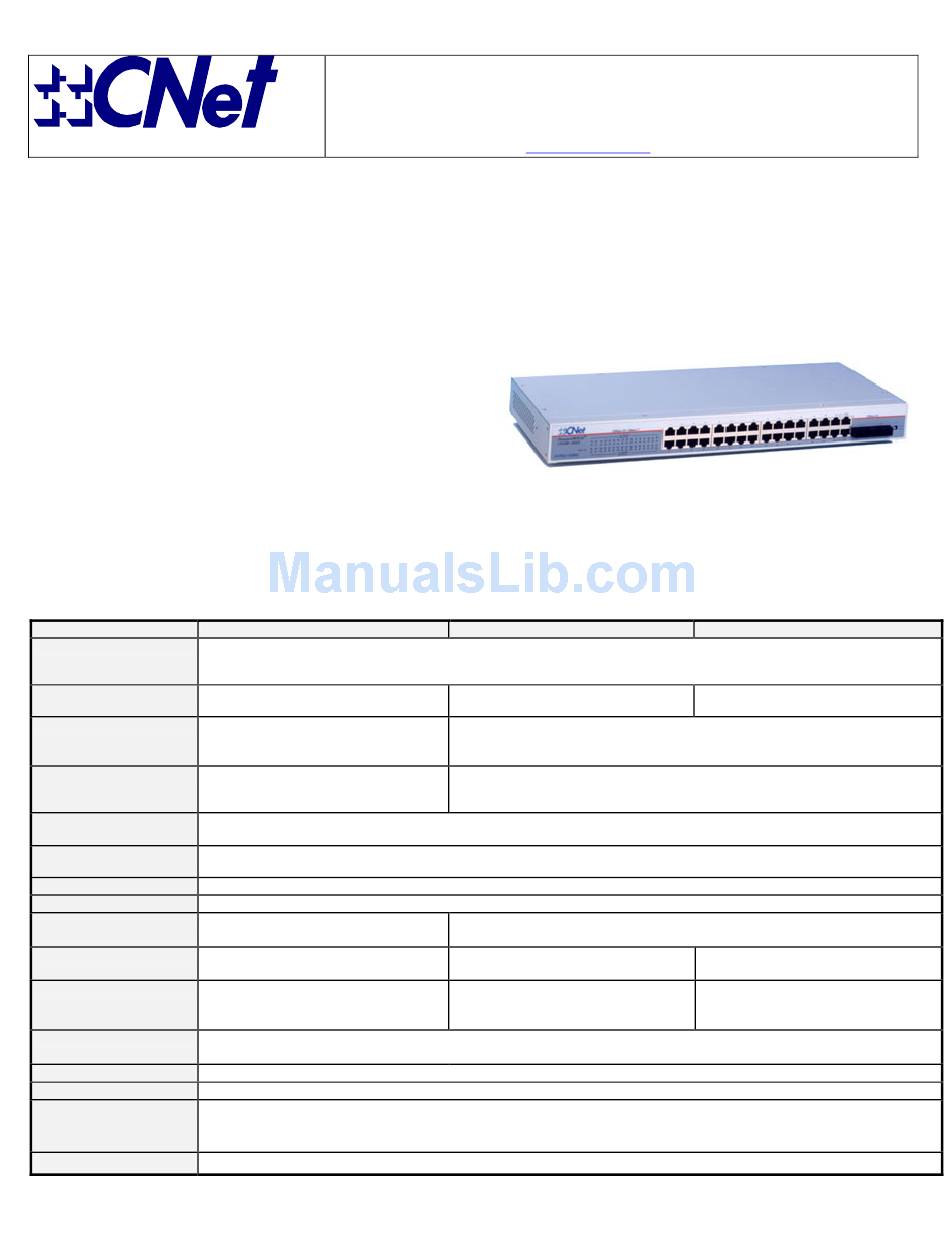

CNET CNSH-3200 Product Specifications

TOTAL NETWORK SOLUTIONS
A major advantage of these Switches is each port provides its own bandwidth. Each port also creates an independent network segment. This
makes shifting available bandwidths or network segments is as easy as changing a cable. The 100/10Mbps dual speed capabilities make the
Switches the perfect Bridge for connecting 100Mbps with 10Mbps segments. Each port is further equipped with a built-in N-Way Auto-
Negotiation function that automatically sets the port to operate at that speed. Each Switch provides one (1) or two (2) Crossover ports for
Uplinking to a Switch or Hub.
All models offer plug-&-play installation with no network configuration required. Front panel LEDs are provided on the front panel of each
model for real time viewing of Switch and network operations. Fiber ports on the CNSH-3201 and CNSH-3202 can transmit data up to two (2)
kilometers.

KEY FEATURES

• Thirty-two (32) independent Bandwidths and network segments
(one per port)
• Two (2) or One (1) 100BASE-FX fiber port (CNSH-3202 or
CNSH-3201 only)
• Store-and-Forward technology with Auto-Negotiation support
for each TP port
• 8 Mbytes Buffer Memory
• Flow control support for Full-Duplex operation (IEEE 802.3x)
and Back-pressure support for Half-Duplex operation
• 1,031 six (6)-byte entries maximum, self-learning MAC
Address Table
• Two (2) Crossover ports for CNSH-3202
• 100/10Mbps segment Bridging capability

PRODUCT SPECIFICATIONS

Models
• 10BASE-T IEEE 802.3
Standards
• 100BASE-TX IEEE 802.3u
• IEEE 802.3x Flow Control for Full-Duplex operation
• Thirty-two (32) 100BASE-TX/10BASE-T
Ports
• 10BASE-T Category 3, 4 or 5 TP
Media Support
• 100BASE-TX Category 5 TP
• 100BASE-TX - 200/100
Bandwidth
• 10BASE-T - 20/10Mbps
Forwarding/Filtering Rate • 148,800 packets/second per port @ 100Mbps, max.
• 14,880 packets/second per port @ 10Mbps, max.
• 11 µsec @100Mbps, minimum
Latency
• 75 µsec @ 10Mbps, minimum
MAC Addresses • 1,031 six (6)-byte entries maximum, self-learning
Buffer Memory • 8 Mbyte
Duplex Modes • TP ports have 100/10Mbps Full/Half-
Crossover • Port 32 has an extra connector that
Switches • One (1) for Power
LED Indicators • One (1) for Power
• One (1) per port for Link / ACT
Power Supply • Internal full range auto-switching
Power Consumption • 36.4 watt max.
Environment
• Operating Temp: 0° ~ 45°C (32° ~ 113°F)
• Storage Temp : -20° ~ 70°C (-4° ~ 158°F)
• Humidity
Dimensions • 442 x 185 x 44 mm (17.40 x 7.28 x 1.73 inches)
Specifications are subject to change without notice

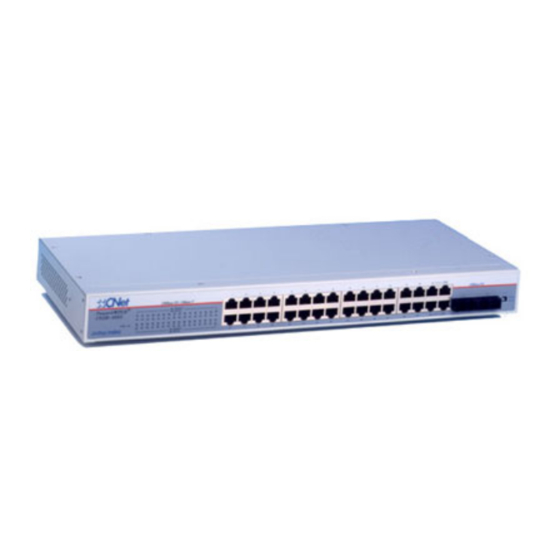

CNSH-3200 – Thirty-two (32) Port 100/10Mbps N-Way Switch
CNSH-3201 – Thirty-two (32) Port 100/10Mbps N-Way Switch w/1 fiber port
CNSH-3202 – Thirty-two (32) Port 100/10Mbps N-Way Switch w/ two (2) fiber ports
CNSH-3200
Duplex Auto-Negotiation function
supports a Crossover function
: 10% ~ 90% non-condensing
www.cnetusa.com
CNSH-3201
• Thirty-one (31) 100BASE-TX/10BASE-T
• One (1) 100BASE-FX -
• 10BASE-T Category 3, 4 or 5 TP
• 100BASE-TX Category 5 TP
• 100BASE-FX 62.5/125 um multimode fiber cable
• 100BASE-TX - 200/100Mbps
• 100BASE-FX - 200/100Mbps
• 10BASE-T - 20/10Mbps
• TP ports have 100/10Mbps Full/Half-Duplex Auto-Negotiation
• Fiber ports set to Half or Forced Full-Duplex mode via a DIP switch
• Port 31 has an extra connector that
supports a Crossover function
• One (1) for Power
• One (1) to set Fiber port to Half- or Full-
Duplex
• One (1) per port for Full-Duplex /Collision
• Input voltage: 100 ~ 240 +/-10% VAC/ 50 ~ 60 Hz
Trademarks & Trade Names belong to their owners
CNSH-3202
• Thirty (30) 100BASE-TX/10BASE-T
• Two (2) 100BASE-FX -
• Ports 15 & 30 each have an extra
connector for Crossover functions
• One (1) for Power
• Two (2) to set Fiber ports to Half- or
Full-Duplex
