GREAT PLAINS 8323 Predelivery Manual

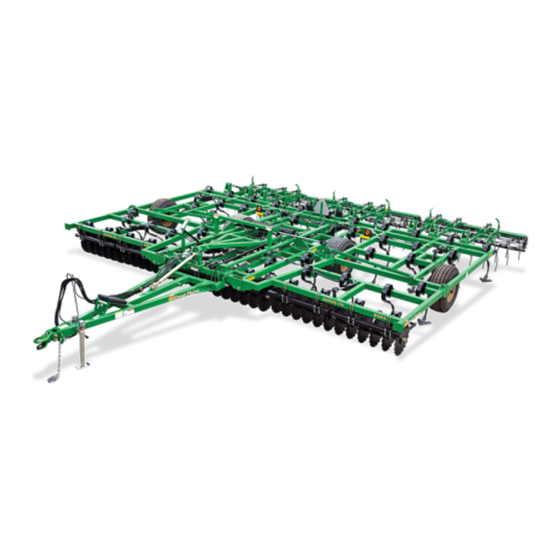

Field cultivator, floating hitch

Hide thumbs Also See for 8323:

Assembly manual (142 pages)

Predelivery manual (126 pages)

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

page of 126

/ 126
Bookmarks

Quick Links

Download this manual

Table of Contents

Pre-Delivery Manual

8539, 8544, 8548, 8551, 8556 & 8560FCF

Read the operator's manual entirely. When you see this symbol, the

subsequent instructions and warnings are serious - follow without

exception. Your life and the lives of others depend on it!

Illustrations may show optional equipment not supplied with standard unit.

ORIGINAL INSTRUCTIONS

Table of Contents

Index

8323, 8328, 8332, 8336,

Field Cultivator, Floating Hitch

Manufacturing, Inc.

www.greatplainsmfg.com

Printed 2021-02-09

Index

41725

560-484Q

Need help?

Do you have a question about the 8323 and is the answer not in the manual?

Questions and answers

Summary of Contents for GREAT PLAINS 8323

Page 1 Table of Contents Index Pre-Delivery Manual 8323, 8328, 8332, 8336, 8539, 8544, 8548, 8551, 8556 & 8560FCF Field Cultivator, Floating Hitch Manufacturing, Inc. www.greatplainsmfg.com Read the operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.
Page 2 Table of Contents Index Table of Contents Index...
Page 3 Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit.
Page 4 8556FCF CH3A Coil Tine w/ Reel Drag Layout ....114 8556FCF CH3A Coil Tine w/ Reel Drag Layout ....115 8560FCF CH3A Coil Tine w/ Reel Drag Layout ....116 8560FCF CH3A Coil Tine w/ Reel Drag Layout ....117 Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 5  Read and understand the “Safety Decals” section of the Operators Manual.  Read all instructions noted on the decals.  Keep decals clean. Replace damaged, faded and illegible decals. Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 6  Lower implement, put tractor in park, turn off engine, and remove the key.  Secure Field Cultivator using blocks and supports provided.  Detach and store Field Cultivator in an area where children normally do not play. Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 7  Wear snug-fitting clothing to avoid entanglement with moving parts.  Watch out for wires, trees, etc., when folding and raising machine. Make sure all persons are clear of working area. Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 8 Description of Unit The 8323-8560FCF Field Cultivator, is a three or five-section seedbed preparation tillage tool. Working width ranges from 23 to 60 feet. The implement is designed for secondary field operations to smooth, level, eliminate weeds and incorporate chemicals.
Page 9 • The Field Cultivator will be shipped with shipping stands Unload Field Cultivator that will not need to be returned to Great Plains. 9. Place these components well out of the maneuvering area • Wings will be connected to center frame and un-folded in needed for unloading the Field Cultivator.
Page 10 21. Carefully remove banding from finishing reels. 22. Locate and identify all componets before assembling. Further Assistance Great Plains Manufacturing, Inc. wants you to be satisfied with your new Field Cultivator. If for any reason you do not understand any part of this manual or are...
Page 11  lock nut. may be tightened to specs, See “Torque Values 33. Bolt Chart” on page 12. 34. Repeat same procedure for rest of shanks. Figure 4 41633 K-Flex Shank Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 12 6- bolt hub assembly and secure with lug nuts  Figure 6 41881 47. Tighten bolts to specs, See “Torque Values Chart” on Gauge Wheel (Jack Style) page 12. Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 13 53. Tighten bolts to specs, See “Torque Values Chart” on page 12.  See “Operator’s Manual” for proper adjustment of gauge wheel assembly. Figure 7 41892 Gauge Wheel (Caster Style) Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 14 59. Route hoses and light harness along hitch and frame with hose clamps and hose wraps, provided.  Be sure hoses and light harness is fastened securely so they don’t drag or get pinched. Figure 8 41883 Rear Hitch Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 15  Double check that all bolts are tightened to specs, See “Torque Values Chart” on page 12.Consult the operating instructions, “Operator’s Manual”, for the first time field adjustments before going to the field. Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 16 Torque tolerance + 0%, -15% of torquing values. Unless otherwise speciﬁed use torque values listed above. Torque Values Chart Wheel Bolt Torque Values 1/2”-20 (75-85ft-lbs) Wheel Bolt Torque Values 9/16”-18 (80-90ft-lbs) Wheel Bolt Torque Values 5/8”-18 (85-100ft-lbs) Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 17 Wing Wheels Numbers Tire Size Tire Size 8323 - 8328 11L–15 8 ply 8332 - 8548 11L–15 8 ply 9.5L-15 8 ply 8551 – 8560 11L–15 12 ply 11L-15 8 ply Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
Page 18 -18 ORB w/jam nut 16-22 12-16  -18 ORB straight 24-33 18-24   -16 JIC 37-53 27-39  -16 ORB w/jam nut 27-41 20-30  -16 ORB straight 37-58 27-43 Great Plains | 560-484Q | 02/09/2021 Table of Contents Index...
