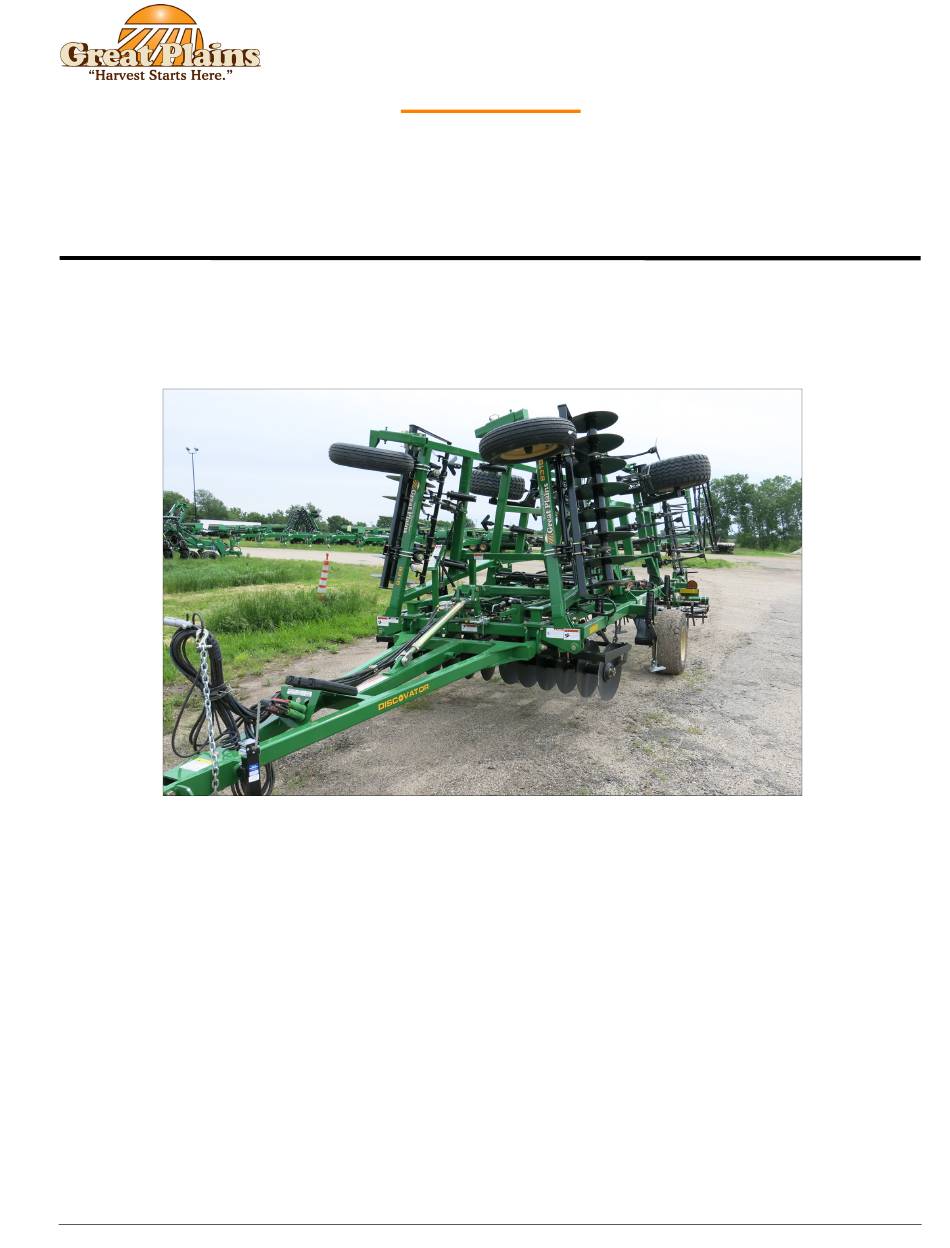

FIELD ADJUSTMENT GUIDE
Tillage
Disc-O-Vator
Date: October 20, 2015
Document #
TLUS200C-0001A
Models Affected:8321DV, 8324DV, 8326DV, 8328DV, 8333DV, 8537DV, 8544DV, 8548DV, 8552DV, 8315DVN,
8318DVN, 8321DVN, 8324DVN
General Information
Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic
inspection of equipment, costly maintenance, time and repair can be avoided. The following information
will assist with recommended servicing and adjustments:
48827
1 of 4
Document
#TLUS200C-0001A
Advertisement
Table of Contents
Related Manuals for GREAT PLAINS 8321DV
Summary of Contents for GREAT PLAINS 8321DV
- Page 1 Date: October 20, 2015 Document # TLUS200C-0001A Models Affected:8321DV, 8324DV, 8326DV, 8328DV, 8333DV, 8537DV, 8544DV, 8548DV, 8552DV, 8315DVN, 8318DVN, 8321DVN, 8324DVN General Information Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic inspection of equipment, costly maintenance, time and repair can be avoided.
- Page 2 Hydraulic Hose Hookup: Great Plains hydraulic hoses have color coded handle grips to help hookup hoses to the tractor outlets. Hoses with the same color use the same remote. Use the following table to assist with hooking up the implement:...
- Page 3 Disc Gang Adjustment: Disc gangs are designed to run 1/2” to 1” shallower than the cultivator sweeps. At this depth, the sweeps are allowed to work in firm ground which improves trash flow. 1) Adjust the depth gauge to read +1/2” to +1”. Do not run the disc or coulter gangs in the RED ZONE.
- Page 4 HD Spike & Reel Settings: On HD spike drags, start with five chain links hanging from the bottom drag arm slot (this is a starting point for the worst conditions). The cleaner the ground, the shorter the pull chain may be pulled. Note: Make sure that the drag is never pulling off of the hang chains.
