GREAT PLAINS 8323 Assembly Manual

GREAT PLAINS 8323 Assembly Manual

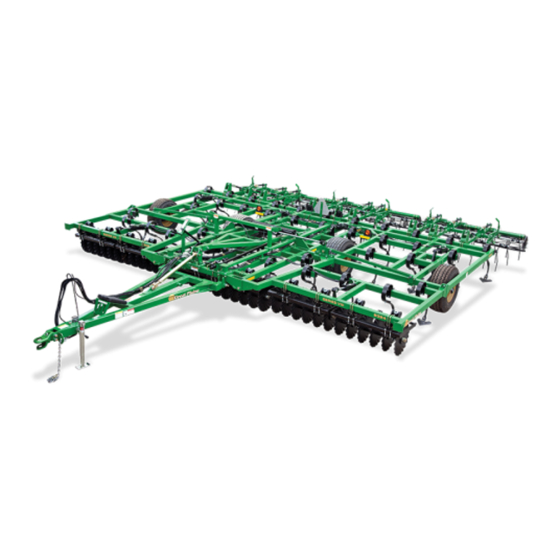

Field cultivator, floating hitch
Hide thumbs Also See for 8323:
Table of Contents

Advertisement

Table of Contents
8539, 8544, 8548, 8551, 8556 & 8560
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2021
Table of Contents
Index
Assembly Manual
8323, 8328, 8332, 8336,
Field Cultivator, Floating Hitch
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2021-02-09
Index
41778
EN
560-484Q-ENG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8323 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GREAT PLAINS 8323

  • Page 1 Table of Contents Index Assembly Manual 8323, 8328, 8332, 8336, 8539, 8544, 8548, 8551, 8556 & 8560 Field Cultivator, Floating Hitch Manufacturing, Inc. www.greatplainsmfg.com Read the operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception.
  • Page 2 Table of Contents Index Table of Contents Index...
  • Page 3: Table Of Contents

    Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit.
  • Page 4 8548FCF CH3A Coil Tine w/ Reel Drag Layout ....127 8551FCF CH3A Coil Tine w/ Reel Drag Layout ....128 8551FCF CH3A Coil Tine w/ Reel Drag Layout ....129 8556FCF CH3A Coil Tine w/ Reel Drag Layout ....130 Great Plains | 560-484Q-ENG | 2021-02-09 Table of Contents Index...
