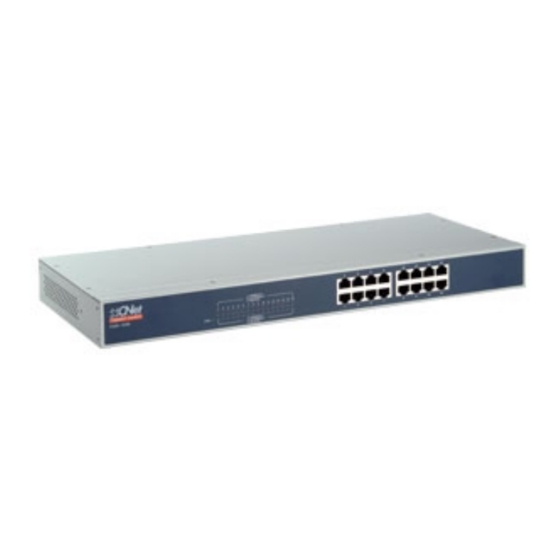

CNET CGS-1600 Specifications

TOTAL NETWORK SOLUTIONS
CNet in continuation of its efforts to strengthen the market transition to Gigabit Ethernet is proud to introduce the
addition of CGS-1600 to its Gigabit Switch product line. CGS-1600, CNet's new Gigabit switch is especially designed
for small and medium businesses to meet their heavy bandwidth demands for graphic and multimedia applications on
the network.

KEY FEATURES

Auto-MDI/MDI-X on All Ports for Simple Setup and Troubleshooting
Flow-control Reduces Re-transmissions in the Networks
Deliver Robust Performance and Build Quality to Ensure Reliable Operation
Auto-negotiation Function for Compatibility among 10/100/1000Mbps
Non-blocking Performance Improves Access to Network Resources

SPECIFICATION

Model
Standards
Ports
Media Support
Bandwidth
Forwarding Rate
Latency
Duplex Modes
LED Indicators
Power Supply
Environment
Certifications
Dimensions
Specifications are subject to change without notice
CGS-1600—16-P
IEEE 802.3: 10 Base-T
IEEE 802.3u: 100 Base-TX
IEEE 802.3ab: 1000 Base-T
IEEE 802.3x: Flow-control support
Sixteen 10/100/1000 Base-T TP Copper Ports
10 Base-T: Category 3, 4 or 5 TP
100 Base-TX/1000 Base-T: Category 5 TP
1000 Base-T 10/20/100/200/2000Mbps
14881 packets/second per port @ 10Mbps maximum
148810 packets/second per port @ 100Mbps maximum
1488100 packets/second per port @ 1000Mbps maximum
75 sec @ 10Mbps minimum
11 sec @100Mbps minimum
2.2 sec @1000Mbps minimum
Support Auto-MDI/MDI-X and Auto-negotiation Functions
One Green LED displays Power status
One Green LED per port displays 1000 Mbps Link/Act status
One Green/Orange LED per port displays 10/100 Mbps Link/Act status
One Green LED per port displays Full-duplex/Collision (Half –duplex) status
Full Range Auto-switching
Input Voltage: 100 ~ 240 +-10% VAC/ 50 ~ 60Hz
Operating Temperature: -20 ~ 70 C (-4 ~ 158 F)
Storage Temperature: -40 ~ 80 C (-40 ~ 176 F)
Humidity: 10% ~ 90% Non-condensing
FCC
CE
442 x 184 x 44mm (17.40 x 7.24 x 1.73inches)
G
ORT IGABIT
www.cnetusa.com
CGS-1600
Trademarks & Trade Names belong to their owners
S
WITCH
