TOTAL NETWORK SOLUTIONS
CNet continues its efforts towards strengthening the market transition to Gigabit Ethernet with the addition of CGS-
2400 to its Gigabit Switch product line. CGS-2400 is especially designed for small and medium businesses to meet
their bandwidth demands for heavy load graphic or multimedia files transmissions.
=
KEY FEATURES
Auto-MDI/MDI-X on All Ports for Simple Setup and Troubleshooting
Flow-control Reduces Re-transmissions in the Networks
Deliver Robust Performance and Build Quality to Ensure Reliable Operation
Auto-negotiation Function for Compatibility among 10/100/1000Mbps
Non-blocking Performance Improves Access to Network Resources
SPECIFICATION
Standards
Ports
Media Support
Bandwidth
Forwarding Rate
Latency
Duplex Modes
LED Indicators
Power Supply
Environment
Certifications
Dimensions
ORDERING INFORMATION
Specifications are subject to change without notice

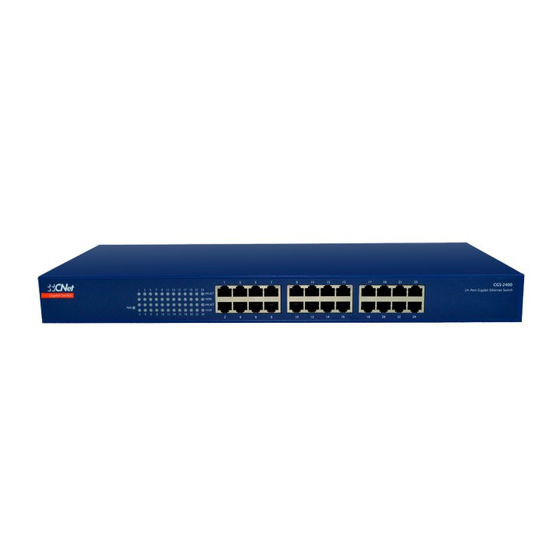

CGS-2400—24-Port Gigabit Switch
IEEE 802.3: 10 Base-T
IEEE 802.3u: 100 Base-TX
IEEE 802.3ab: 1000 Base-T
IEEE 802.3x: Flow-control support
Twenty four 10/100/1000 Base-T TP Copper Ports
10 Base-T: Category 3, 4 or 5 TP
100 Base-TX/1000 Base-T: Category 5 TP
1000 Base-T 10/20/100/200/2000Mbps
14881 packets/second per port @ 10Mbps maximum
148810 packets/second per port @ 100Mbps maximum
1488100 packets/second per port @ 1000Mbps maximum
75 sec @ 10Mbps minimum
11 sec @100Mbps minimum
2.2 sec @1000Mbps minimum
Support Auto-MDI/MDI-X and Auto-negotiation Functions
One Green LED displays Power status
One Green LED per port displays 1000 Mbps Link/Act status
One Green/Orange LED per port displays 10/100 Mbps Link/Act status
One Green LED per port displays Full-duplex/Collision (Half –duplex) status
Full Range Auto-switching
Input Voltage: 100 ~ 240 +-10% VAC/ 50 ~ 60Hz
Operating Temperature: -20 ~ 70 C (-4 ~ 158 F)
Storage Temperature: -40 ~ 80 C (-40 ~ 176 F)
Humidity: 10% ~ 90% Non-condensing
FCC
CE
442 x 184 x 44mm (17.40 x 7.24 x 1.73inches)
www.cnetusa.com
CGS-2400
Trademarks & Trade Names belong to their owners
