- Page 1 Use & Care Guide For best results, a low-sudsing, HE High Efficiency Detergent made for high efficiency washers must be used. Model: 111.2914# Kenmore Top-Loading Automatic Washer # = color number Transform SR Brands Management LLC Hoffman Estates, IL 60179...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT RECORD IMPORTANT SAFETY INSTRUCTIONS......3-5 In the space below, record the date of purchase, model, and serial number of your product. You will find the GROUNDING REQUIREMENTS ........5 model and serial number printed on an identification FEATURES AND BENEFITS plate located inside the washer lid. -
Page 3: Important Safety Instructions
SAFETY MESSAGES There are many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can result in prop- erty damage and/or serious bodily harm or death. - Page 4 IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury appliance from the power supply. Failure to follow to persons when using this appliance, follow basic this warning can cause serious injury, fire, electric precautions, including the following. shock, or death.
-
Page 5: Grounding Requirements
IMPORTANT SAFETY INSTRUCTIONS WARNING: RISK TO CHILDREN • Do not allow children to play on or in the washer. • Keep laundry products out of children's reach. To Close supervision of children is necessary when the prevent personal injury, observe all warnings on washer is used near children. -
Page 6: Features And Benefits

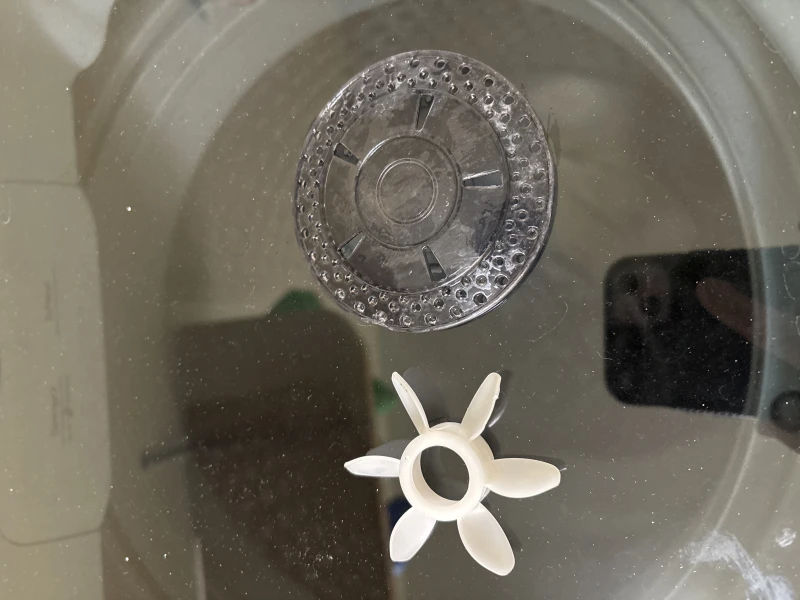

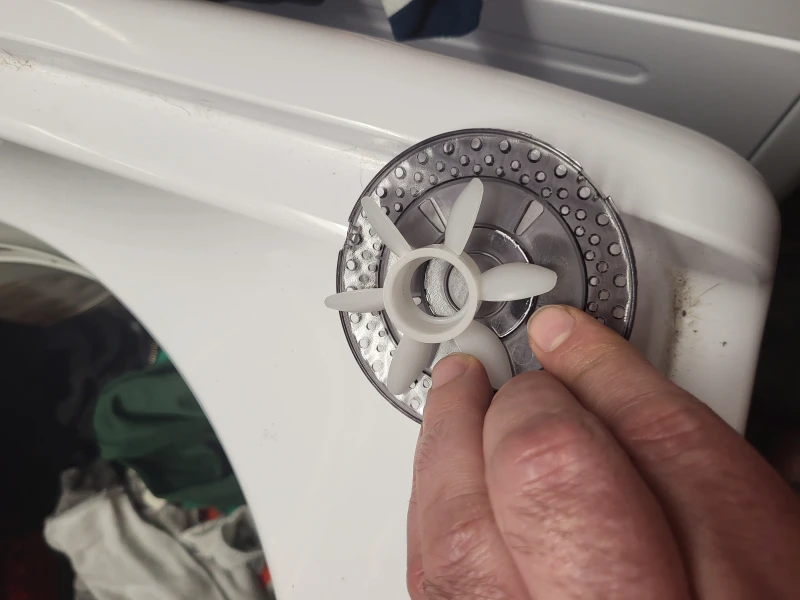

FEATURES AND BENEFITS KEY PARTS AND COMPONENTS LID LOCK The washer lid is locked during operation. The lid can be unlocked by pressing the START/ PAUSE button to stop the washer. LARGE-CAPACITY STAINLESS STEEL TUB The large stainless steel tub offers extreme durability. -
Page 7: Installation Requirements
INSTALLATION REQUIREMENTS KEY DIMENSIONS AND SPECIFICATIONS Description Top-Loading Washer Rated Voltage/Frequency 120VAC, 60Hz Dimensions 27" W x 28 3/8" D x 45 3/4" H (59 1/4" H with lid open) 68.6 cm W x 72.3 cm D x 116 cm H (150.5 cm H with lid open) Net Weight 136.7 lbs. -
Page 8: Unpacking And Removing Shipping Material
INSTRALLATION INSTRUCTIONS UNPACKING AND REMOVING SHIPPING MATERIAL 3. Unfasten the power cord from the back of the washer. 1. After removing the carton shipping material, with TOOLS YOU WILL NEED the aid of an assistant lift the washer off the foam base. -
Page 9: Connecting The Water Lines
INSTALLATION INSTRUCTIONS CONNECTING THE WATER LINES • IMPORTANT: Use new hoses when installing the washer. Do NOT reuse old hoses. • Water supply pressure must be between 7.1 psi and 113.7 psi (49~784 kPa). If the water supply pressure is more than 116 psi, a pressure reducing valve must be installed. -
Page 10: Connecting The Drain Hose
INSTALLATION INSTRUCTIONS CONNECTING THE DRAIN HOSE Laundry Tub Standpipe Wall 4.5" 4.5" 4.5" (114 mm) (114 mm) (114 mm) 1. Attach drain hose to drain port. Squeeze clamp and slide end of drain hose onto drain port and secure with 2. -
Page 11: Leveling The Washer
INSTALLATION INSTRUCTIONS LEVELING THE WASHER Run calibration The tub of your new washer spins at very high For more precise weight detection, run calibration speeds. To minimize vibration, noise, and unwanted when installing the washing machine. movement, the floor must be a level, solid surface. To run calibration, do the following: NOTE: Adjust the leveling feet only as far as 1. -
Page 12: How To Use
HOW TO USE WARNING: To reduce the risk of fire, electric shock, or injury to persons, read and follow this entire Use & Care Guide, including the Important Safety Instructions, before operating this washer. CONTROL PANEL FEATURES C D L Cycle selector Soil level Turn the Cycle Selector to select the desired... -
Page 13: Operating The Washer
HOW TO USE OPERATING THE WASHER SORT LAUNDRY AND LOAD WASHER Sort laundry by fabric type, soil level, color and load size, as needed. Open the door and load the items into the washer. Liquid Fabric Softener Main Wash ADD CLEANING PRODUCT Compartment Powder Detergent Compartment... -
Page 14: Cycle Guide
HOW TO USE CYCLE GUIDE Normal • Run the Clean Washer cycle only when the tub is empty. Any laundry in the tub may be • For washing all normal items, except delicate damaged or contaminated with the cleaning fabrics such as wool or silk product. - Page 15 HOW TO USE CYCLE GUIDE Whites Heavy Duty • For washing white items only • For washing heavily soiled laundry using more powerful wash motions. • For washing bath towel or jeans. Drain & Spin Function To remove water standing in the tub due to a cycle malfunction or power outage, or to wring moisture from wet items that you do not want to wash.
-
Page 16: Sorting Wash Loads
HOW TO USE SORTING WASH LOADS Fabric Care Labels Many articles of clothing include a fabric card label. CAUTION Using the chart below, adjust the cycle and option • Do not load items higher than the top edge of the tub. selections to care for your clothing according to the Failure to follow this caution can result in leakage or manufacturer's recommendations. - Page 17 HOW TO USE Loading the Washer NOTE: Use the Bulky cycle for large or bulky items such as poly-filled jackets, comforters, pillows, etc. These items may not be as absorbent as other laundry items and should be sorted into a separate wash load for optimal results.
-
Page 18: About The Dispensers
HOW TO USE ABOUT THE DISPENSERS The automatic dispenser consists of two compartments which hold: Liquid Bleach • Liquid fabric softener. Compartment • Powdered detergent for main wash. Main Wash Powder Detergent Compartment Liquid Fabric Softener Compartment Liquid Bleach Compartment The bleach dispenser is a separate compartment at the left front of the tub opening. -
Page 19: Detergent And Dispenser Use
HOW TO USE DETERGENT AND DISPENSER USE A Word About Detergents Using the Softener and Detergent Dispenser High-Efficiency (HE) detergents produce fewer suds, To add detergent and fabric softener to the automatic dissolve more efficiently to improve washing and dispenser: rinsing performance, and help to keep the interior of your washer clean. -
Page 20: Care And Cleaning
CARE AND CLEANING WARNING: To reduce the risk of fire, electric shock, or injury to persons, read and follow this entire Use & Care Guide, including the Important Safety Instructions, before operating this washer. • Unplug the washer before cleaning to avoid the risk of electric shock. Failure to follow this warning can cause serious injury, fire electric shock, or death. -
Page 21: Maintenance
CARE AND CLEANING MAINTENANCE Cleaning the Water Inlet Filters If the washer does not fill properly, an error message will show on the display. The inlet valve filter screens could be plugged by hard water scale, sediment in the water supply, or other debris. NOTE: The inlet screens protect the delicate parts of Inlet Filter the inlet valve from being damaged by particles that... -
Page 22: Cleaning The Washer
CARE AND CLEANING CLEANING THE WASHER Proper Use of Detergent Using too much detergent is a common cause of laundry problems. Today's detergents are formulated to be effective without visible sudsing. Be sure to carefully read and follow manufacturer's recommendations for how much detergent to use in your wash. -
Page 23: Troubleshooting Guide
TROUBLESHOOTING GUIDE NORMAL SOUNDS YOU MAY HEAR The following sounds may be heard while the washer is operating They are normal. Clicking: Humming or gurgling: Lid lock relay when the lid locks and unlocks. Drain pump is pumping water from the washer at times during a cycle. - Page 24 TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE (continued) Problem Possible Cause Solutions Excessive sudsing Too much detergent or incorrect HE detergents are formulated specifically for High- detergent. Efficiency washers and contain suds-reducing agents. Only use detergent with the High- Efficency (HE) logo. For detergent quantities refer to the How to Use section.
- Page 25 TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE (continued) Problem Possible Cause Solutions Washer will not Control panel has powered off due to This is normal. Press the POWER button to turn operate inactivity. the washer on. Washer is unplugged. Make sure cord is plugged securely into a working outlet.
- Page 26 TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE (continued) Problem Possible Cause Solutions Washer will not drain water Kinked drain hose. Ensure that the drain hose is not kinked. Drain located higher than 51 in. Make sure that the drain hose is no higher above the floor.
- Page 27 TROUBLESHOOTING GUIDE BEFORE CALLING FOR SERVICE (continued) Error Codes Display unit Symptom Actions for troubleshooting • Is the power plug inserted firmly? • Is the power on? • Did you press the start/pause button? No display No operation • Is it because of black out? •...
-
Page 28: Product Specifications
TROUBLESHOOTING GUIDE PRODUCT SPECIFICATIONS MODEL 111.2914# Rated Voltage/Frequency 120V / 60Hz Rated Power Consumption 750W Capacity 4.5 cu.ft Capacity(Weight of Clothes) 13.2 lbs. / 6.0kg 27" W x 28 3/8" D x 45 3/4" H (59 1/4" H with lid open) External Dimension(W*D*H) 68.6 cm W x 72.3 cm D x 116 cm H (150.5 cm H with lid open) -
Page 29: Warranty
WARRANTY KENMORE LIMITED WARRANTY WITH PROOF OF SALE, the following warranty coverage applies when this appliance is correctly installed, operated and maintained according to all supplied instructions. One Year on Appliance FOR ONE YEAR from the date of sale this appliance is warranted against defects in material or workmanship. - Page 30 Kenmore ® Customer Care Hotline To schedule in-home repair service or order replacement parts Para pedir servicio de reparación a domicilio, y ordenar piezas 1-844-553-6667 www. kenmore. com ®...
