D-Link DFE-530TX+ Quick Install Manual

Quick Install Guide
10/100 Fast Ethernet Desktop PCI Adapter
Thank you for purchasing the DFE-530TX+ Adapter. Follow the easy steps in
this guide to properly set up your adapter. Please verify that all the package
contents listed below are available.

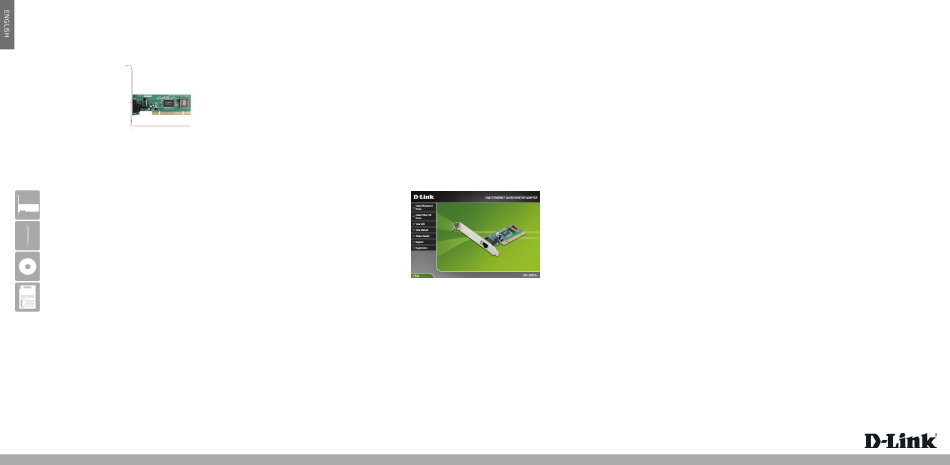

Package Contents
DFE-530TX+ 10/100 Fast Ethernet Desktop PCI Adapter
Low Profile Bracket
CD with drivers, software, and manual
Quick Install Guide
If any of the above items are missing, please contact your reseller.
System Requirements
• A computer with an available PCI slot
• Windows® 8, 7, Vista®, XP, 2000, Linux 2.2.x and above, or Mac OS® 10.2.x and
above
• 64MB of RAM
• 300MHz Processor or faster
• CD-ROM Drive
DFE-530TX+
Installation
Note: Do NOT plug the adapter into your computer before installing the
drivers. Also, write down the serial number and hardware revision (e.g. G2)
before installing the adapter. If you contact technical support, you will need
this information.
Step 1 - Turn on your computer and Insert the D-Link DFE-530TX+ Driver CD into
the CD-ROM drive.
If the CD Autorun function does not automatically start on your computer,
go to Start > Run. In the run command box type D:\autorun.exe (where D:
represents the drive letter of your CD-ROM drive). Drivers for non-Windows
operating systems are located on the D-Link CD.
Step 2 - When the autorun screen appears, click Install Drivers. An Installation
Wizard will guide you through the process, no matter which operating system
you are running. This process will install drivers and software.
Step 3 - Once the installation is complete, click OK to finish.
Step 4 - Install the DFE-530TX+ into your computer.
a. Shut down the computer, unplug its power cord, and
remove the chassis cover. Note that opening the case of your
computer may compromise the warranty of your computer.
Consult the computer manufacturer before opening the case
to ensure that you adhere to warranty guidelines.
b. Insert the contact edge of the DFE-530TX+ card into the
connector of any available PCI slot. Press the card firmly into
the connector such that the card's contacts are fully seated
in the connector.
c. Install the bracket screw that secures the card to the
computer chassis.
d. Replace the computer's chassis cover. Connect an Ethernet
cable from the adapter to your router, switch or Ethernet
device.
e. Plug in the power cable and power on your computer.
Step 5 - Once you boot your computer, Windows® will automatically install the
drivers.
Windows® XP/2000 users: You will receive a bubble stating
that Windows found the DFE-530TX+ adapter.
Windows® 8/7/Vista® users: You will receive a bubble
stating Windows has finished installing the DFE-530TX+
adapter.
Step 6 - Please refer to the user manual on the supplied CD-ROM for more
information on configuring your adapter and advanced features.
Technical Support
Having trouble installing your new product? D-Link's website contains the latest
user documentation and software updates for D-Link products. U.S. and Canadian
customers can contact D-Link Technical Support through our website or by phone.
United States Canada
Telephone: (877) 453-5465 Telephone:
Internet: http://support.dlink.com Internet: http://support.dlink.ca
