D-Link DFE-538TX Quick Installation Manual

10/100mb ethernet pci adapter for macintosh 8.0 or higher

Hide thumbs Also See for DFE-538TX:

Download this manual See also: User Manual, Quick Installation Manual

Contents of Package:

•

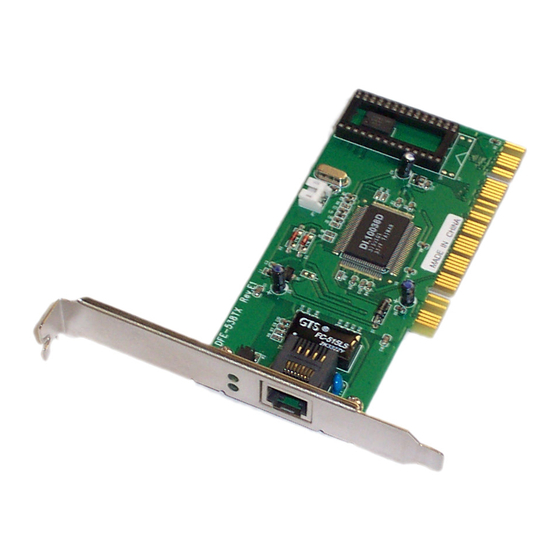

DFE-538TX [Cat. No. 25-3181] 10/100 Fast Ethernet Adapter

•

Quick Install Guide

•

CD-ROM [CD-DFE538TX], which includes driver software

If any of the above items are missing, please contact your reseller.

Requirements:

•

PowerPC-based Macintosh computer with free PCI slot

•

Operating System 8.0 or higher

1. Install the DFE-538TX [Cat. No. 25-3181]

2. Install the Drivers

3. Configure the Network Services

Installing the DFE-538TX into the

computer's PCI slot

•

Turn OFF the computer

•

Insert the DFE-538TX [Cat. No. 25-3181] into an available PCI slot

Do you have a question about the DFE-538TX and is the answer not in the manual?

Page 1: Contents Of Package
1. Install the DFE-538TX [Cat. No. 25-3181] 2. Install the Drivers 3. Configure the Network Services Installing the DFE-538TX into the computer’s PCI slot • Turn OFF the computer • Insert the DFE-538TX [Cat. No. 25-3181] into an available PCI slot...
Page 2 Installing the DFE-538TX Drivers • Turn ON the computer • Insert the CD-ROM [CD-DFE538TX]into the Macintosh’s CD- ROM drive Double click on the CD-ROM icon on the desktop Double-click on the Macintosh folder.
Page 3 Copy folder “DFE-538TX Driver for Mac OS” to desktop and Double-click on the folder “DFE-538TX Driver for MacOS” when it appears on your desktop. Double-click on the “Installer” icon. Click “Install” to continue.
Page 4 Click “OK” to restart the computer. After the computer restarts,the driver is installed Checking Installation of the DFE-538TX Drivers Go to the Apple Menu>Controls Panel>Extensions Manager Scroll down to find DLKRTS. Make sure that the box to the left is checked.
Page 5: Configuring Network Services
Configuring Network Services 1. Open the Apple menu. 2. Go to Control Panels>AppleTalk control panel. 3. Select Ethernet from the Connect via: list box. 4. Do not choose DLKRTS Ethernet. If you do not see it, go back to the beginning of this guide and install the drivers again.
