D-Link DFE-530TX User Manual
Dual-speed 10/100 mbps ethernet pci adapter
Hide thumbs
Also See for DFE-530TX:
- Quick installation manual (41 pages) ,
- User manual (27 pages) ,
- Manual (13 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for D-Link DFE-530TX
Summary of Contents for D-Link DFE-530TX

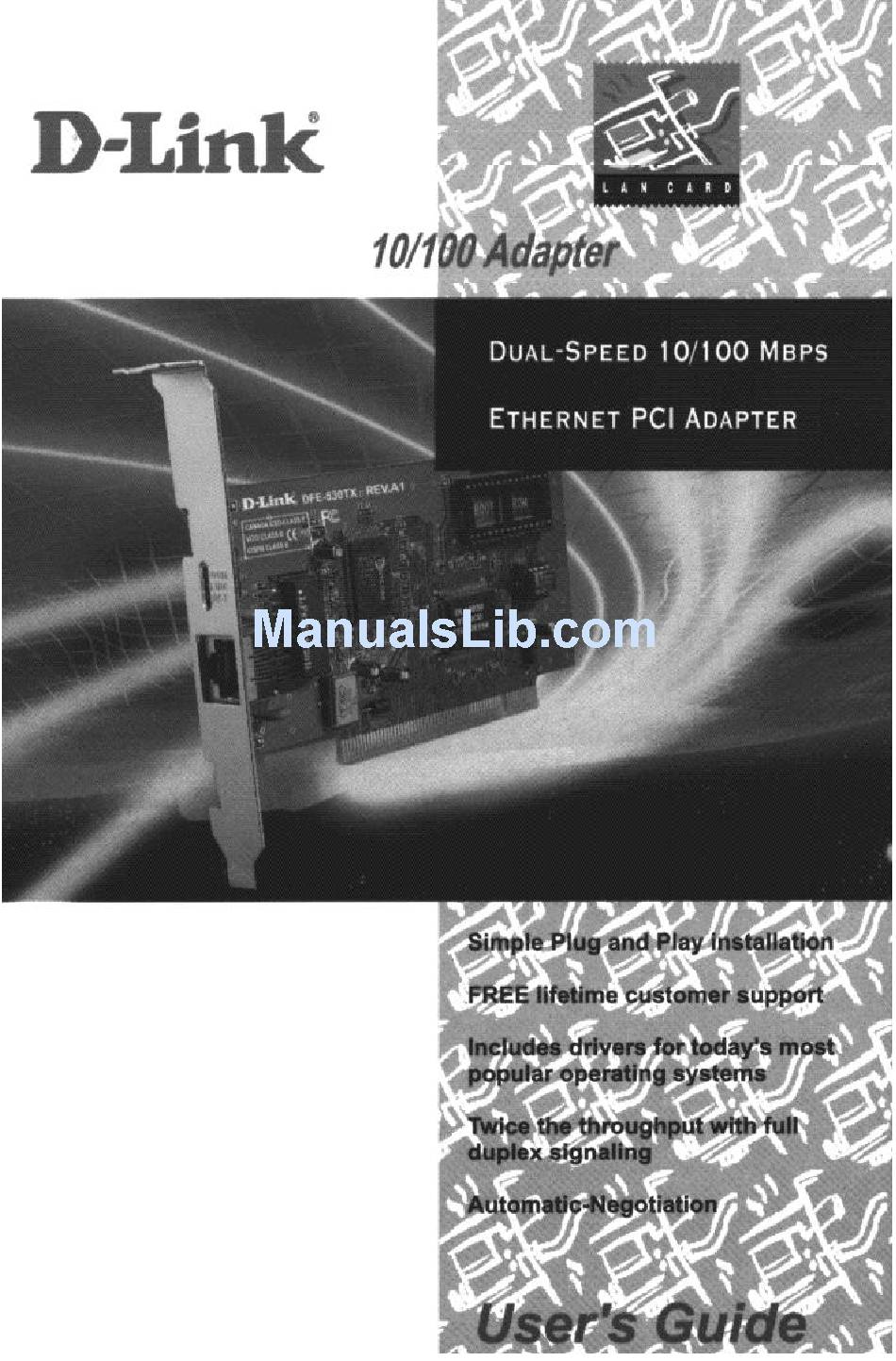

- Page 1 DFE-530TX...
- Page 2 D-Link Model DFE-5307-X Ethernet / Fast Ethernet Adapter for PCI Bus User’s Guide Rev. 01 (February. 1998) 6DFE530TX.01 Printed in China RECYCLABLE...
-
Page 3: Copyright Statement
Copyright Statement No part of this publication used to make any derivative such as translation, transformation, or adaptation without permission from D-Link Corporation / D-Link stipulated by the United States Copyright Act of 1976 FCC Certifications This equipment has been tested and found to comply with the limits for a... -
Page 4: Limited Warranty
Registration Card is tilled out and returned to a D-Link office within ninety (90) days of purchase. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card. Failing such timely registration of... - Page 5 D-Link warrants that its software products will perform in substantial conformance with the applicable product documentation provided by D-Link with such software product, for a period of ninety (90) days from the date of purchase from D-Link or its Authorised Reseller. D-Link warrants the magnetic media, on which D-Link provides its software product, against failure during the same warranty period.
-
Page 6: Limitation Of Liability
The product’s Registration Card, provided at the back of this manual, must be sent to a D-Link office. To obtain an RMA number for warranty service as to a hardware product, or to obtain warranty service as to a software product, contact the D-Link office nearest you. -
Page 7: Table Of Contents
Table of Contents INTRODUCTION..ABOUT FAST ETHERNET..ABOUT AUTO-NEGOTIATION..ABOUT PCI BUS..FEATURES..INSTALLATION ... UNPACK AND INSPECT..INSTALL THE ADAPTER..CONNECT THE NETWORK CABLE ... CONNECTING FOR FAST ETHERNET..9 CONNECTING FOR 1OMBPS SOFTWARE INSTALLATION ... -
Page 8: Introduction
Fast Ethernet adapters for PCI-Bus personal computers. This Introduction chapter will be useful if you are new to Fast Ethernet and other new technology featured by the DFE-530TX. Otherwise, skip ahead to the Installation chapter. About Fast Ethernet Fast Ethernet is a network technology specified by IEEE Standard 802.3u. -
Page 9: About Auto-Negotiation
Full duplex lOOBase-TX transmission and reception, both at lOOMbps, providing service potentially equal to 200Mbps half-duplex service. The DFE-530TX Adapter does not support the lOOBase-T4 subtype. To provide compatibility in traditional 1OMbps Ethernet environments (where, for example, DFE-530TX adapters are installed... - Page 10 DFE-530TX and its supporting hub proceeds automatically. If the hub has auto-negotiation function- ality, then it and the DFE-530TX exchange a series of messages in which each device signals its capabilities and listens for corresponding information about the other. The...
-
Page 11: About Pci Bus
Your DFE-530TX Adapter delivers outstanding perfor- mance by fully exploiting the advanced features of your computer’s PCI bus. DFE-530TX Adapters utilize the Bus Master Mode of the PCI bus, allowing direct transfers of Ethernet packet content between computer memory and the adapter’s controller, thus minimizing network demand... -
Page 12: Features
(waiting for CPU service) during trans- missions and receptions. Features ’ Designed for versatility and performance, the DFE-530TX Adapter provides the following features: Operates in a PCI Bus Master slot of a Pentium/486 computer, independent of CPU speed. - Page 13 DFE-5307X Ethernet/Fast Ethernet Adapter for PCI Bus Drivers’ for all leading Network Operating Systems. ’Check http:/ lwww.dlink.com for newest release of drivers. I n s t a l l a t i o n...
-
Page 14: Installation
Installation of a DFE-530TX Ethernet Adapter requires hardware installation first, then software installation. Unpack and Inspect CAUTION: Under ordinary circumstances, will not be affected by static charge as may be received through your body during handling of the unit. In special circumstances where you may carry... - Page 15 Step 3. If your order includes the Boot ROM option, then install the Boot ROM Chip by plugging the chip into the Boot ROM Socket on the DFE-530TX card. The notched end of the Boot ROM Chip must be aligned...
-
Page 16: Connect The Network Cable
(not a crossover cable), with an RJ-45 plug at each end. Make the network connection by plugging one end of the cable into the RJ-45 jack of the DFE-530TX, other end into a port of the supporting hub. I n s t a l l a t i o n... -
Page 17: Connecting For 1Ombps Ethernet
(not a connector at each end. Make the network connection by plugging one end of the cable into the RJ-45 jack of the DFE-530TX, and the other end into a port of the supporting hub. Software Installation... -
Page 18: Troubleshooting
LIFE-5307X If you experience any problems with the adapter, first verify that the appropriate driver is loaded, that the proper grade of cable is employed for the network connection, and that the supporting hub is functioning properly. Ascertain that the adapter card is fully and firmly seated in the slot connector. - Page 19 DFE-530TX Ethernet/Fast Ethernet Adapter for PCI Bus The DFE-530TX Adapter features three LED indicators to assist in the resolving of network diagnostics: lOMbps/lOOMbps This LED shows steady green (on) when 100Mbps speed is selected. negotiated. LINK Indicator Steady green indicates good linkage between the DFE- 530TX and its supporting hub.
-
Page 20: Specifications
Transceiver interface, EMI Compatibility: FCC Class B VCCI Class B CISPR B Certification CE Certification, Class B Host interface: PCI 2.1 Bus (Bus Master) 1O/1OOMbps Specifications standard for 1OOMbps functionality D-Link DL10030 Davicom DM9101 Ethernet Adapter for PCI Bus baseband... - Page 21 DFE-5307X Ethernet/Fast Ethernet Adapter for PC/ Bus I/O & IRQ base ‘address: system Physical Dimensions: 13.9 cm x 7.3 cm Environment: Storage: -20º to 8OºC, (-4” to 176” F) 0perating:Oº to 55” C, (32” to 131” F) Humidity: 10% to 90% non-condensing Power Consumption: 2W (4OOmA @ 5V) max PCB Layer: 2 layers Software drivers’...
