Human Touch feel better HT-245PS Use & Care Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

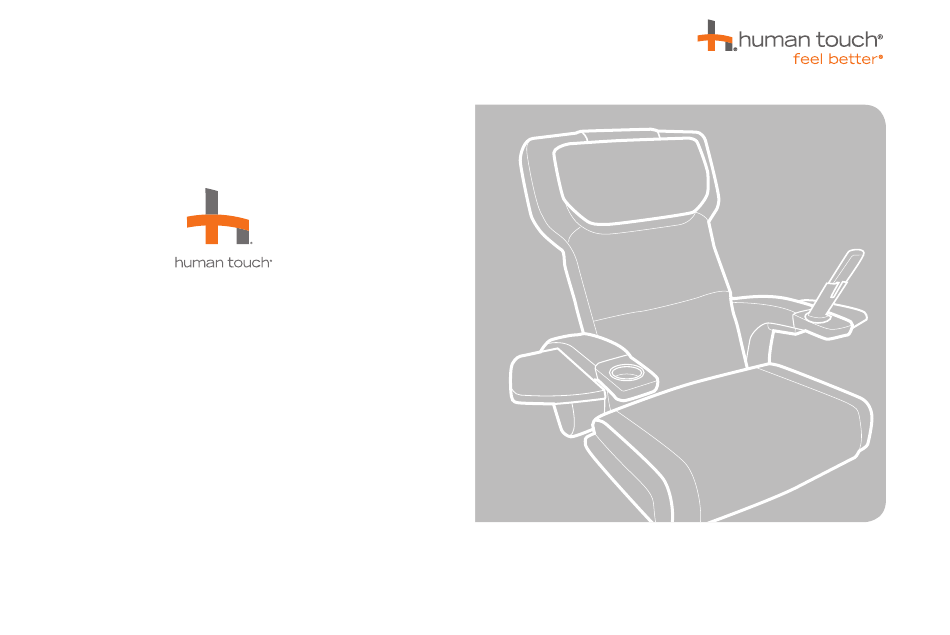

humantouch.com
HT-245PS
use & care
manual
©2011 Human Touch
, LLC. Patents pending and intellectual property rights enforced.
®
No medical claims are warranted or implied by the use of this product.
Human Touch is a trademark of Human Touch
, LLC.
®
H T- 2 4 5 P S - N A - A 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the feel better HT-245PS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Human Touch feel better HT-245PS

Summary of Contents for Human Touch feel better HT-245PS

  • Page 1 , LLC. Patents pending and intellectual property rights enforced. ® No medical claims are warranted or implied by the use of this product. Human Touch is a trademark of Human Touch , LLC. ® H T- 2 4 5 P S - N A - A 0...
  • Page 2 Your Human Touch massage chair is the perfect bridge between state-of-the-art technology and the ancient healing art of massage. It’s a key ingredient for a For decades, Human Touch has been a leader in the field of massage products. We create balanced life.

  • Page 3: Important Safety Instructions

    keep it safe IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Do not attempt to repair this product yourself. This product is designed for personal in-home use. Commercial use will void warranty. Read all instructions before using this appliance.
  • Page 4 Your Human Touch massage chair requires some simple assembly (no tools required). Just attach the backrest pad, seat pad, manicure trays, head pillow and you’re done! ready 3. Attach the backrest pad Place the backrest pad into position, then attach the top flap to backrest using the hook-and-loop fasteners.
  • Page 5 ready 6. Install the controller dock Remove the cup holder from the armrest in which you want to install the controller dock, then place the controller dock into the armrest receptacle. The controller slides easily into Head pillow flap the dock, which rotates 360 degrees for your convenience. 4.
  • Page 6 Your Human Touch massage chair helps your customers feel better, using a wide variety of massage techniques that you control. It’s the perfect way to relax and refresh.
  • Page 7 Now choose a massage technique to suit your mood. Your Human Touch massage chair lets you customize your massage using a wide variety of massage techniques. take control Choose from three stationary massage techniques and a rolling massage, or combine them! Or, simply select one of the auto massage experiences and let the chair take control.

  • Page 8: Specifications

    care and maintenance To keep your product working and looking its best, please follow these simple care guidelines. WARNING: 1. Be sure to disconnect the power cord from the electrical outlet before cleaning. 2. When cleaning the controller or power switch, use a dry cloth only. Never use a damp cloth to clean the controller or power switch.
  • Page 9 troubleshooting guide HT-245PS...
  • Page 10 December 8, 2011 ©2011 Human Touch, LLC. All rights reserved. Please forward any questions or comments regarding this Troubleshooting Guide to documentation@humantouch.com.

  • Page 11: Getting Started

    HT-044PS, HT-045PS, HT-245PS Troubleshooting This Troubleshooting Guide walks you step-by-step through the diagnosis of HT-044PS, HT-045PS, and HT-245PS customer problems. It is important to follow these steps carefully, to ensure that the problem is diagnosed correctly, and therefore the appropriate repair action is taken.
  • Page 12 Power Step 1: Check the power and remote control cables Verify that the power cord connections to the power panel are secure, and that the cord is not damaged. If any of the power panel components is damaged, replace the power panel. Step 2: Check the wall outlet Plug a different device into the AC outlet into which the chair is plugged.
  • Page 14 Human Touch, LLC 3030 Walnut Ave. Long Beach, CA 90807 www.humantouch.com...
  • Page 15 repair instructions HT-245PS...
  • Page 16 Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.

  • Page 17: Removing The Remote Control

    Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
  • Page 18 SERVICE LEVEL: 3 instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair. Tools Required: 5mm Allen wrench, 6 mm Allen wrench, 14mm open wrench, Phillips-head screwdriver, pliers, small hammer, wire cutter or any instrument suitable for cutting zip ties.
  • Page 19 7. Return the wood seat support to its original position (Fig.5). 8. Locate the backrest release lever on the back of the backrest, pull up on it to release the backrest from the chair base, then fold the backrest forward onto the seat (Fig.6). 9.
  • Page 20 15. Using a Phillips-head screwdriver, remove the seven screws that secure the mechanism side panel (Fig.11). 16. Using a Phillips-head screwdriver, remove the eight screws that secure the massage mechanism to the chair (Fig.12). 17. Lift the mechanism out of the chair (Fig.13). 18.
  • Page 21 21. Using a small hammer, push the hinge pin through the side of the backrest (Fig.16). 22. Using a pair of pliers from the inside of the backrest, remove the hinge pin (Fig.17). 23. Repeat steps 19 to 22 to remove the hinge pin on the opposite side of the chair. 24.
  • Page 22 26. Plug in the chair, then power it on. 27. Verify that the backrest is working properly. 28. Replace the chair pads. Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2012 Human Touch , LLC. ®...
  • Page 23 Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair.
  • Page 24 6. Using a Phillips-head screwdriver, remove seven screws from the massage mechanism side panel (Fig.4) . 7. Using a Phillips-head screwdriver, remove eight screws from the massage mechanism (Fig.5) and lift the massage mechanism toward the front chair. 8. Using a wire cutter or any other instrument suitable to cut zip-ties, cut all of the zip-ties that secure the four main PCB harnesses (Fig.6). 9.
  • Page 25 8. Gently raise the backrest to the upright position, until it locks into place. 9. Plug in the chair, power it on, then verify that the chair is now working properly. Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2012 Human Touch , LLC. ®...
  • Page 26 SERVICE LEVEL: 3 instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair. Tools Required: Phillips-head screwdriver, wire cutters or any instrument suitable for cutting zip ties, new zip ties (2).
  • Page 27 5. Pull gently upward on the backrest to return it to an upright position. 6. Plug in the chair, power it on, then verify that the massage mechanism is working properly. Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2012 Human Touch , LLC. ®...

  • Page 28: Replacing The Backrest Actuator

    SERVICE LEVEL: 3 instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair. Tools Required: Phillips-head screwdriver, small flat-head screwdriver, wire cutters or any other instrument suitable for cutting zip ties, new zip ties (2).
  • Page 29 Slide actuator Lift the seat support to expose the slide actuator (Fig.5). Using a Phillips-head screwdriver, remove the two screws from the connector junction box (Fig.6). Seat support Remove the junction box cover, then disconnect the backrest actuator connector (Fig.7). Use a small flat-head screwdriver to remove the “C”...
  • Page 30 9. Fold the backrest backward into a reclined postion. 10. Plug in the chair, power it on, then verify that the slide actuator is working properly Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2012 Human Touch , LLC. ®...

  • Page 31: Replacing The Armrest

    SERVICE LEVEL: 2 instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair. Tools Required: 5mm Allen wrench, 14mm open wrench and 6mm Allen wrench.
  • Page 32 4. Gently fold the backrest upward to an upright position. 5. Raise and lower the armrest to ensure that it is functioning properly. Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2012 Human Touch , LLC. ®...
  • Page 33 Therefore, Human Touch requires that all product repairs are performed using only factory-new parts and in accordance with these repair SERVICE LEVEL: 2 instructions. Failure to adhere to these instructions voids the product warranty and releases Human Touch from all liability for injury or product damage resulting from the repair. Tools Required: Phillips-head screwdriver, small flat-head screwdriver.
  • Page 34 6. Using a small flat-head screwdriver, remove the “C” clip and pin from the rear of the slide actuator (Fig.5). 7. Life the left-hand armrest to access the front end of the slide actuator, then use a small flat-head screwdriver to remove the “C” clip and pin (Fig.6). 8.
  • Page 35 6. Fold the seat support down into position, then replace the seat cushion. 7. Plug in the chair, power it on, then verify that the slide actuator is working properly. Please send any questions or comments regarding these instructions to: documentation@humantouch.com © 2011 Human Touch , LLC. ®...
