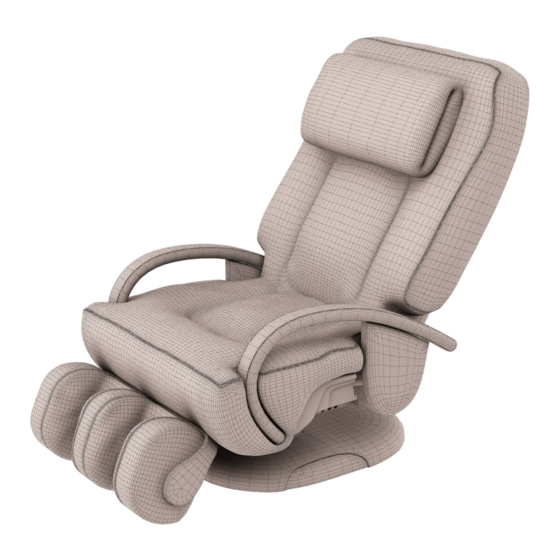

Human Touch HT-270 Quick Start Manual

To ensure that Human Touch products are repaired in a manner that is fully consistent with the practices used during the manufacturing process, Human Touch requires that all
®
product repairs are performed using only factory-new parts and in accordance with these product repair instructions.
Tools Required: 5/32" (4mm) Allen key " (4mm) Allen key " (4mm) Allen key, Phillips-head screwdriver (4mm) Allen key
NOTE: SAVE ALL SCREWS FOR USE DURING REASSEMBLY.

REMOVING THE BACKREST COVER

1. Use the remote control to raise the backrest to a fully upright position.
2. Power off the chair and unplug it.
3. Using a Phillips-head screwdriver, remove the two screws that secure the remote control bracket
to the backrest cover (Fig.1).
4. Pull the remote control cables through the backrest cover, then disconnect the cables.
5. Using a 5/32" (4mm) " " (4mm) Allen key, remove the four backrest cover screws. (Fig.2).
6. Tip the backrest cover backward then lay it carefully
on the floor behind the chair.
7. Disconnect the three connectors (Fig.3).
8. Remove the backrest cover.
HT-270
, Phillips-head screwdriver

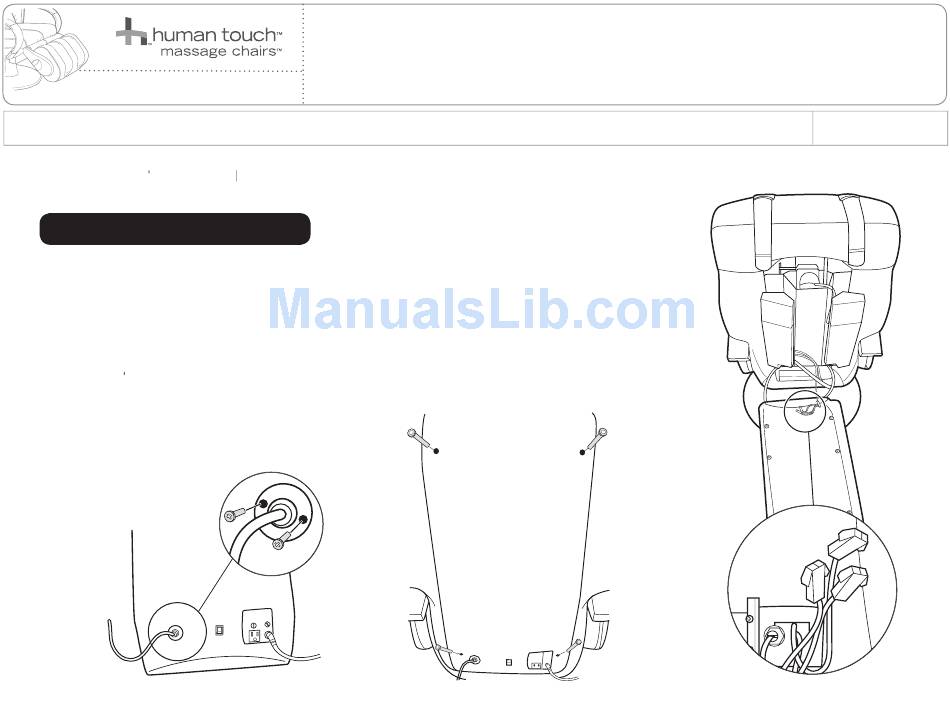

(Fig.1)

REPLACING THE BACKREST COVER

(Fig.2)
06/01/08
SERVICE LEVEL: 2
(Fig.3)
1
