Step Stringer Fitting Instructions

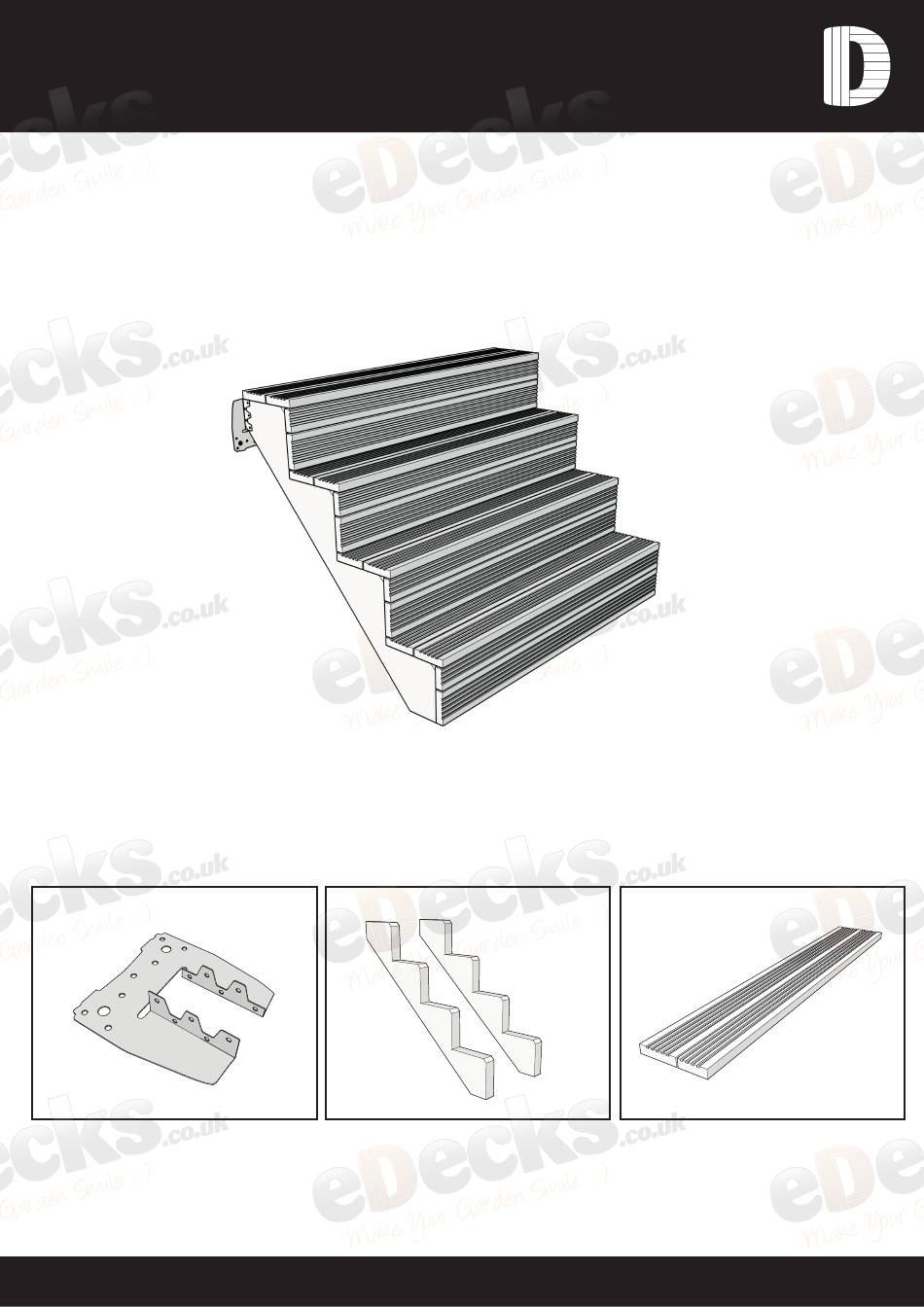

Kit Contents
This is an example of finished step kit,
please note these instructions are relevant
for all our step stringer kits
YOUR KIT WILL CONTAIN THE FOLLOWING ITEMS
TRUSS CLIPS & FIXINGS
Don't forget to check your work with a level as you go!
All images are for illustration only, Please see individual item listings for actual item specifications
www.eDecks.co.uk
STRINGERS
DECKING BOARDS
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for eDecks Step Stringer
Summary of Contents for eDecks Step Stringer
- Page 1 Step Stringer Fitting Instructions Kit Contents This is an example of finished step kit, please note these instructions are relevant for all our step stringer kits YOUR KIT WILL CONTAIN THE FOLLOWING ITEMS TRUSS CLIPS & FIXINGS STRINGERS DECKING BOARDS Don’t forget to check your work with a level as you go!
- Page 2 Step Stringer Fitting Instructions Step 1 SET OUT YOUR STRINGERS First make sure the ground is flat and level, then measure and place your stringers at the desired width for your steps, please note the STEP maximum width we recommended is 590mm additional stringers APPROX 8.5”...
- Page 3 Step 2 FIX STRINGERS INTO POSITION USING TRUSS CLIPS Secure the truss clips to your supporting surface and the step stringer by using the twist nails into the 17 holes on the truss clips and 2 spax screws as shown in diagram.
- Page 4 Step Stringer Fitting Instructions Step 3 SECURE THE 2 BOTTOM BOARDS TO THE STRINGERS Start by securing the lowest board to the base of the stringers, use 4 screws - 2 at each end of the board to secure the board in place.
- Page 5 Step Stringer Fitting Instructions Step 4 SECURE THE FIRST 2 STEP BOARDS TO THE STRINGERS Next position and secure the lowest step boards, start at the front so that the deck board overhangs the stringer slightly and covers the edge of the ripped down board fitted in previous step, the edge of this board should be flush with the riser boards below, secure using 2...
- Page 6 Step Stringer Fitting Instructions Step 5 SECURE THE REMAINING BOARDS TO THE STRINGERS Repeat the previous 2 steps for the remainder of the boards until all the steps have been completed. Don’t forget to check your work with a level as you go! Page 6 of 7 All images are for illustration only, Please see individual item listings for actual item specifications...
- Page 7 Step Stringer Fitting Instructions Finish Once all the boards are fitted to the stringers your kit should look like the diagram below. SIDE VIEW Don’t forget to check your work with a level as you go! Page 7 of 7 All images are for illustration only, Please see individual item listings for actual item specifications...
