eDecks Parliament Pergola Fitting Instructions Manual

Parliament Pergola Fitting Instructions
Contents

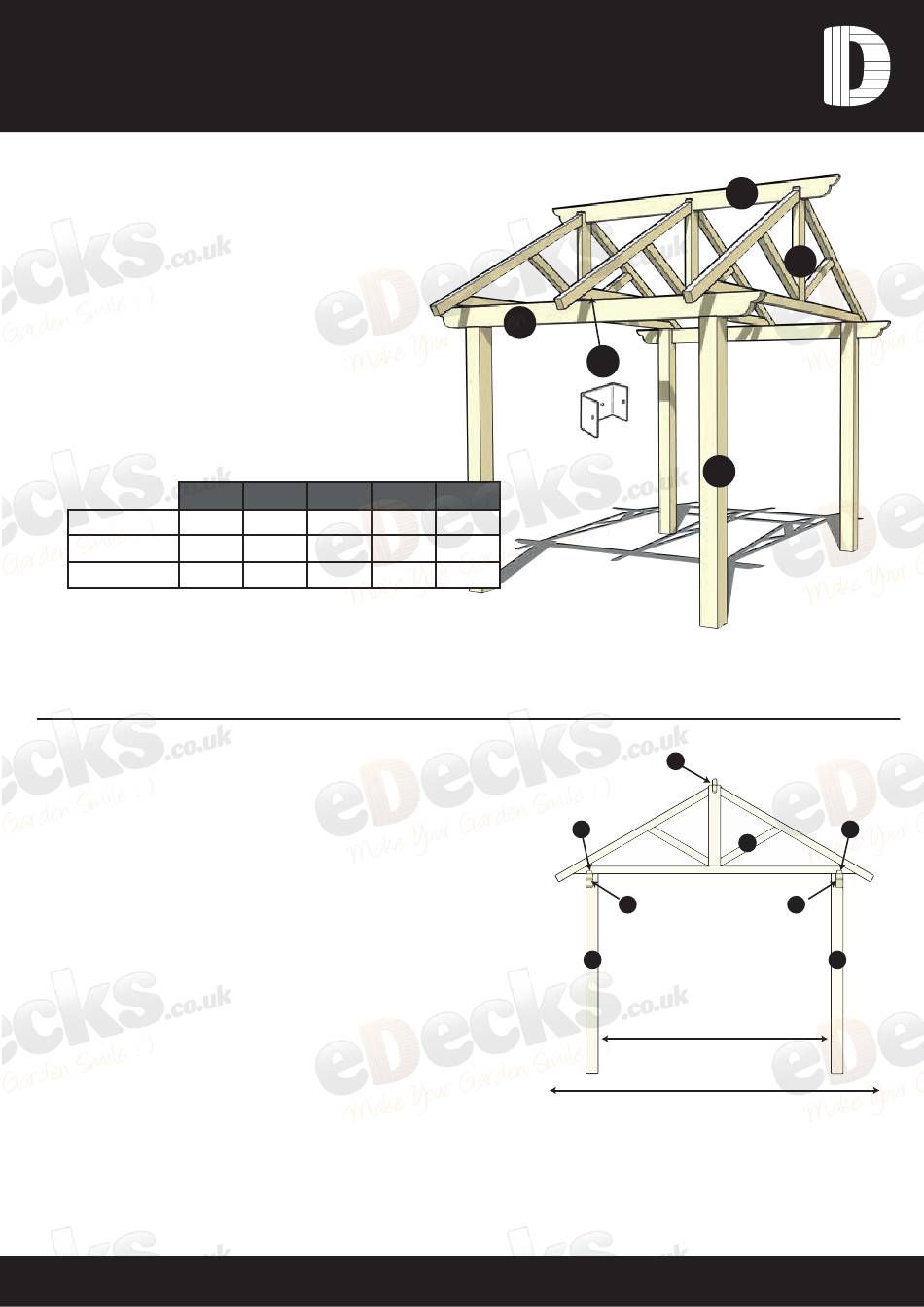

PARTS INCLUDED IN YOUR KIT
PLEASE NOTE THESE INSTRUCTIONS ARE FOR
ALL OUR KIT SIZES
A - Pergola Posts -125 x 125
B - Side Rafters - 145mm x 73mm Profiled both ends
C - Top Rafter -145mm x 44mm Profiled both ends
D - Roof Trusses
E - Galvanised Pergola Clips
KIT SIZE A
2.7M x 2.7M
4
2.7M x 3.6M 4
2.7M x 4.2M
6
Your kit will also contain your chosen option for securing the posts into or on the the ground, more information can be
found on page 4 of this guide. Your kit will also contain all the screws required for fitting your Parliament Pergola.
STEP 1
PREPARING THE SITE
& SETTING OUT THE POSTS
Consider the location carefully before proceeding.
Where will the sun be at the time of day you use it?
What access is required?
Determine the footprint required for the pergola
proposed. Ensure the area is clear and mark out
the positions for the posts.
Opposite and on the following page is a front and side views showing
our recommended measurements for setting out your walkway.
For the width we advise setting the posts to the cross section of the
trusses as shown in the diagram but this can be at your preference just
so long as the posts are set out equally and square.
DON'T FORGET TO CHECK YOUR WORK WITH A LEVEL AS YOU GO!
All images are for illustration only, Please see individual item listings for actual item specifications
B C D
2 1 3
2 1 4
2 1 5
www.eDecks.co.uk
B
E
E
6
8
10
E
B
A
C
D
A
C
D
B
A
FRONT VIEW
INNER WIDTH 2700
OVERALL WIDTH 3100
Page 1 of 11
E
