Queen Anne Fitting Instructions

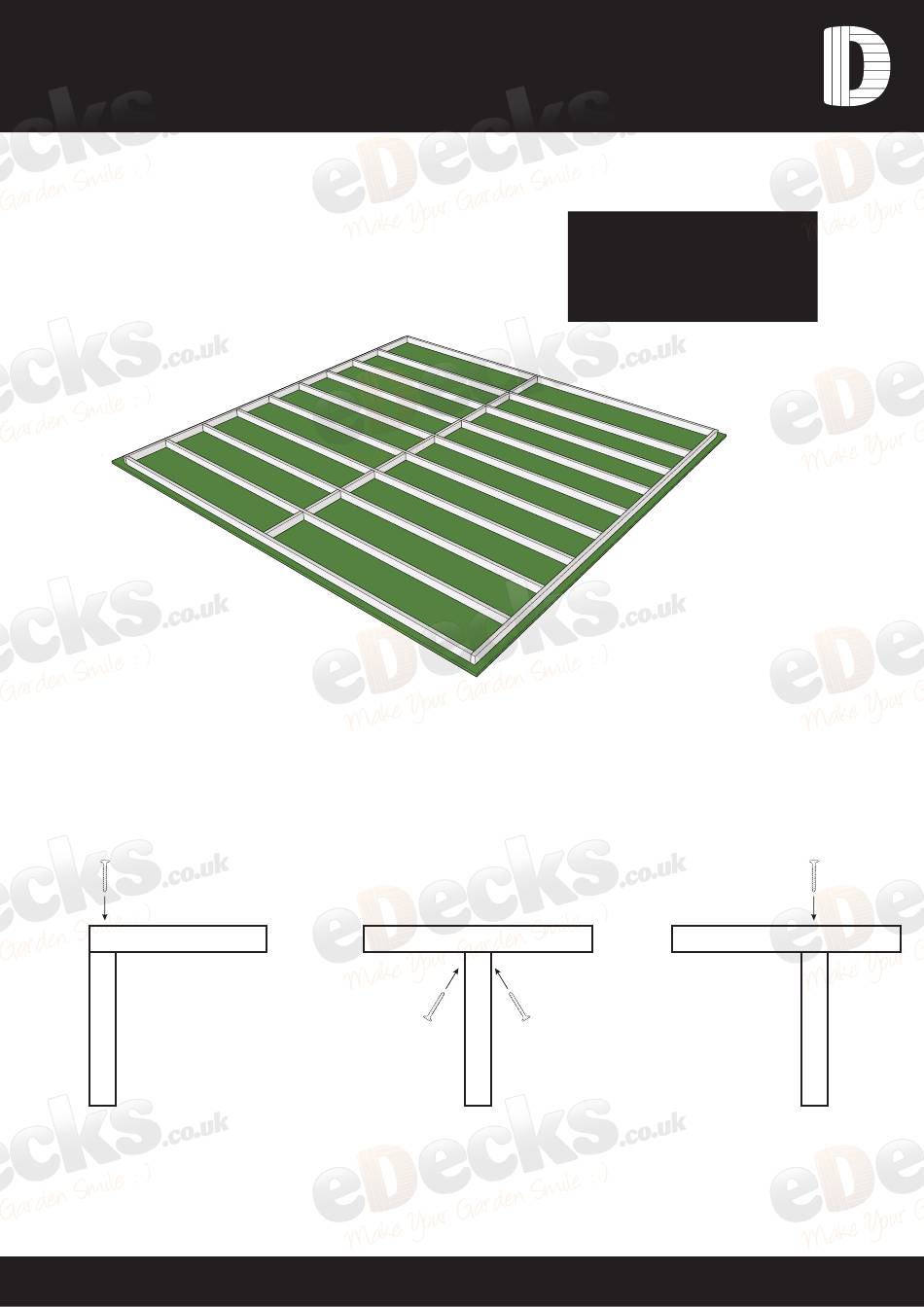

Step 1
LAY YOUR FRAME
Lay out your decking frame in your chosen location on the ground
Using the decking joists provided in the kit build the perimiter first then evenly spread the remaining
decking joists inside as shown in the example above.
Use the joist screws provided in your fixing kit to secure the timbers as per method below.
METHOD FOR SCREWING JOISTS
X2 SCREWS
CORNER FASTENING
JOIST
Please make sure the frame fits the requirements for your chosen kit.
Don't forget to check your work with a level as you go!
All images are for illustration only, Please see individual item listings for actual item specifications
www.eDecks.co.uk
FRAME TO BE LAID ONTO
PAVING SLABS, OR ONTO
ANGLE SCREW
JOIST
JOISTS TOP VIEW
GRASS OR SOIL
This may require
some cutting to fit your size
requirements
X2 SCREWS
STRAIGHT FASTENING
JOIST
Page 1 of 13
Advertisement
Related Manuals for eDecks Queen Anne
Summary of Contents for eDecks Queen Anne
- Page 1 Queen Anne Fitting Instructions Step 1 FRAME TO BE LAID ONTO LAY YOUR FRAME PAVING SLABS, OR ONTO Lay out your decking frame in your chosen location on the ground GRASS OR SOIL This may require some cutting to fit your size requirements Using the decking joists provided in the kit build the perimiter first then evenly spread the remaining...
- Page 2 Queen Anne Fitting Instructions Step 2 RAISING THE FRAME A. Arrange the 600mm deck raisers in position as shown in diagram A FRONT B. Each strutt will need to be set 200mm down into a concrete base leaving 400mm of each strutt exposed...
- Page 3 Queen Anne Fitting Instructions Step 3 FITTING THE PERGOLA POSTS & NEWELS You are supplied with pergola posts and newels. Accounting for the post sitting flush with the bottom of the base please select how high you would like the pergola posts, please cut accordingly .
- Page 4 Queen Anne Fitting Instructions Step 4 FITTING THE STRINGER STEPS FRONT Your step stringers must be set at a maximum of 600mm apart Use the 50mm truss clips included with your kit to attach the step stringers to the decking frame Screw into the front of your deck joist Don’t forget to check your work with a level as you go!
- Page 5 Queen Anne Fitting Instructions Step 5 INSTALL DECKING BOARDS Decking boards should fit exactly to the frame, working in the opposite direction to the joist work, when laying the boards make sure you leave a 5mm gap between 5mm gap each board to allow room for expansion.
- Page 6 Queen Anne Fitting Instructions Step 6 INSTALL DECKING BOARD STEPS Run the boards for the steps in the opposite direction to the boards for the deck, some cutting down the length of these boards will be required to work around the step and riser of the 4 stringers installed in step 4.
- Page 7 Queen Anne Fitting Instructions Step 7 INSTALL FASCIA BOARDS Cutting will be required for the fascia boards surrounding the steps. FRONT Don’t forget to check your work with a level as you go! Page 7 of 13 All images are for illustration only, Please see individual item listings for actual item specifications...
- Page 8 Queen Anne Fitting Instructions Step 8 INSTALL SUPPORT RAFTERS First secure the 3 supporting rafters to the posts. Secure Secure FRONT Don’t forget to check your work with a level as you go! Page 8 of 13 All images are for illustration only, Please see individual item listings for actual item specifications...
- Page 9 Queen Anne Fitting Instructions Step 9 INSTALL RAFTERS Space the remainder of the rafters across the top of the support rafters FRONT Using the Pergola Clips Provided with your kit to secure Don’t forget to check your work with a level as you go! Page 9 of 13 All images are for illustration only, Please see individual item listings for actual item specifications...
- Page 10 Queen Anne Fitting Instructions Step 10 INSTALL DIAGONAL CROSS SUPPORTS Attach the 6 supports as shown in the diagram below Don’t forget to check your work with a level as you go! Page 10 of 13 All images are for illustration only, Please see individual item listings for actual item specifications...
- Page 11 Queen Anne Fitting Instructions Step 11 INSTALL THE HANDRAILS Pre-Building the spindles and handrails is the next step. Accurately measure between pergola posts and cut the hand and base rails accordingly, there should be a 125mm gap between each spindle...
- Page 12 Queen Anne Fitting Instructions Step 11 Cont’d INSTALL THE HANDRAILS 4 screws per bracket Once your handrail sections are complete - using angle brackets please proceed to install to the kit Once this is complete - Sit back and enjoy! Page 12 of 13 All images are for illustration only, Please see individual item listings for actual item specifications...
- Page 13 Queen Anne Fitting Instructions Step 12 FINISH! Once this is complete - Sit back and enjoy! Page 13 of 13 All images are for illustration only, Please see individual item listings for actual item specifications www.eDecks.co.uk...
