Trevi 128 Assembly Instructions Manual

Round pool
Table of Contents

Advertisement

Available languages

Available languages

Dear Customer
Congratulations! You have purchased a pool of superior quality and durability. To achieve the best possible results,
follow the instructions carefully. Failure to follow the installation procedures may result in damage to your pool or
property and void your warranty. We recommend that you make a preliminary study of the instruction booklet to
familiarize yourself with the different parts of your pool. Make sure that you understand each step thoroughly before
you begin assembling.
WARNING: Be sure you have read and understand the "Safety Information" sheets
before you begin your pool installation.
WARNING: For your safety, your pool is not designed for diving and/or jumping head first.
1
When selecting a site for your pool, take into account city by-
laws regarding fences and utilities laws pertaining to electrical
cables, as well as the landscaping which you are planning once
the pool is installed.
TURF
REMOVAL DIAMETER
Please do not dive. Diving may result in permanent injury or death.
SITE PREPARATION
WALL
DIAMETER
ASSEMBLY INSTRUCTIONS
MODEL 128-130-178-180
We wish you a most pleasant and refreshing summer.
Drive a stake into the ground at the center of the site. Using a meas-
uring tape, draw a circle 15 cm to 20 cm (6" to 8") longer in radius
than the pool, depending on the width of the uprights (See Illustra-
tion 1.1).
Remove all grass from the area which you have just outlined.
Make sure to order the required quantity of sand and stone dust
(See Chart).

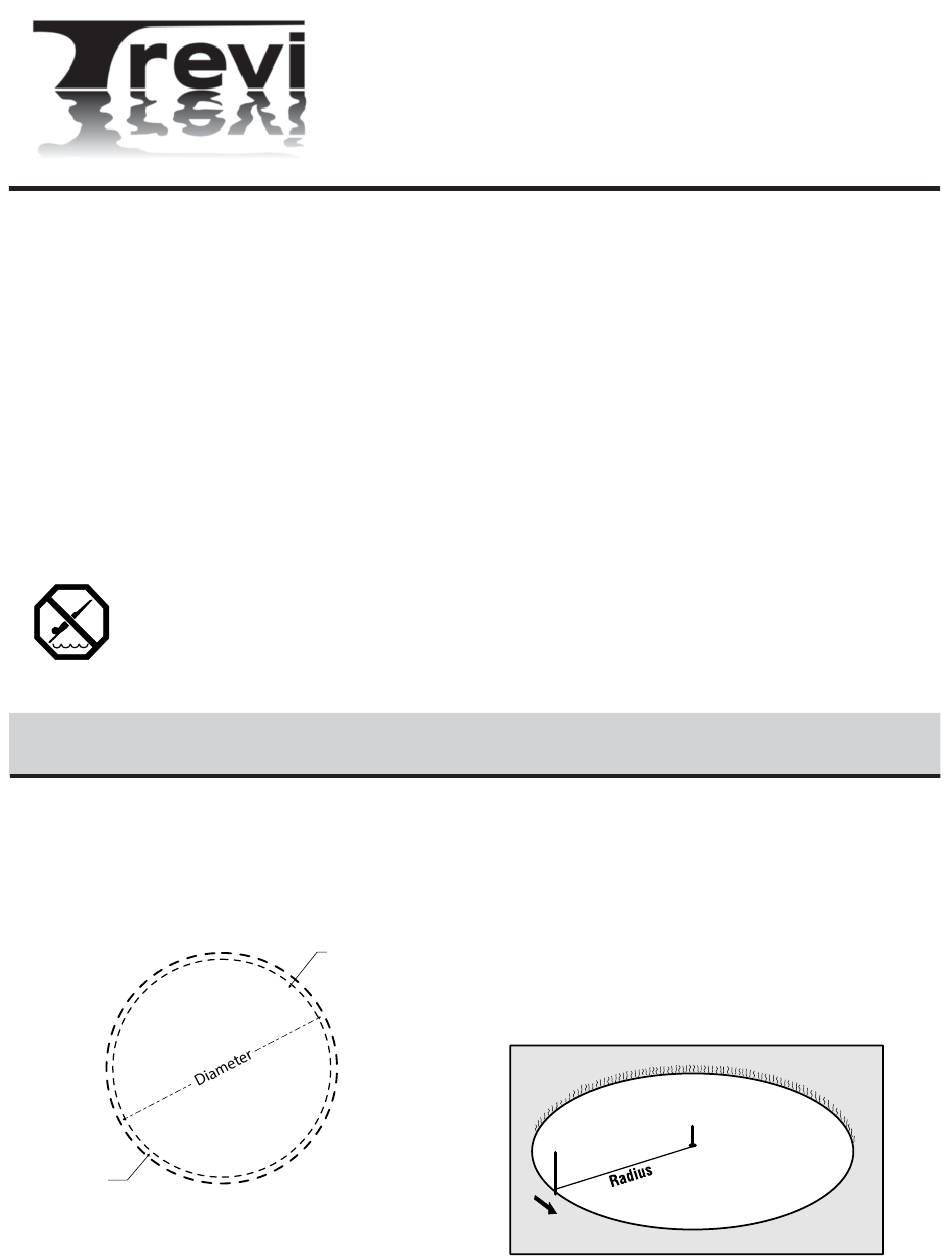

Illustration 1.1
40306_V3_2021-01-23
ROUND POOL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Trevi 128

  • Page 1 40306_V3_2021-01-23 ASSEMBLY INSTRUCTIONS ROUND POOL MODEL 128-130-178-180 Dear Customer Congratulations! You have purchased a pool of superior quality and durability. To achieve the best possible results, follow the instructions carefully. Failure to follow the installation procedures may result in damage to your pool or property and void your warranty.
  • Page 2 SITE PREPARATION (continued) Chart 3,05 m (10’) 1,72 m (5’8”) 3,05 m (11’6”) 9,14 m (30’) 4.57 m (15’ 8") 9.14 m (31’ 4") 2 1/2 Tons 2 Tons * If you use only sand, add stone dust tonnage to sand. SITE LEVELLING Level the edge of the circle, from the turf removal line up to 30 cm Optional...
  • Page 3 BOTTOM DRAIN ASSEMBLY (if applicable) Dig a hole 30 cm (12") wide by approximately 25 cm (10") deep in the center of the circumference. From the center hole to the projected location of the pool motor, dig a 15 cm (6") wide trench. Place the removed soil aside to be used later to cover the hose.
  • Page 4: Wall Installation

    WALL INSTALLATION Add sand. Begin inserting the wall into the bottom wall tracks in the middle of Before uncoiling the wall, make sure the pre-punched holes for the a joiner plate. At first, the wall is kept in place with one or two stakes skimmer and pump return are at the top and facing the planned lo- and strings (or extra persons).
  • Page 5 WALL INSTALLATION (continued) Chart 3,05 m (10’) 9,60 m (31’ 6") 9,14 m (30’) 28,72 m (94’ 3") SAND BASE FINISHING You can now spread approximately 10 cm (4") of compacting sand all around the inside base of the wall in order to protect the liner WALL from the cutting edges of the bottom wall tracks and the stone dust 30 cm (12")
  • Page 6 VINYL LINER INSTALLATION (continued) RESIN TOP STEEL TRACK TOP TRACK U-BEAD LINER WALL Start the vacuum cleaner to allow the liner to adhere to the wall and Lift up a section of the liner over the top of the wall leaving a 10 cm check for excess tension at the bottom or for wrinkles.
  • Page 7 UPRIGHT POST TOP PLATE INSTALLATION Put the top plate on the upper side of the upright, and secure with PLATE two (2) screws “Z” on each side. SCREW ‘’Z’’ UPRIGHT TOP SEAT INSTALLATION Be sure to have a vertical (plumb) upright before fixing the top seat. SCREW ‘’Z’’...
  • Page 8 SEAT CAP INSTALLATION Hook the base of the lens previously attached to the round section Then place the seat cap on the inside edge of the seats and snap it cap extension in the slot on the front of the upright. Secure the cap to the top of the cap extension.
  • Page 9: Parts List

    FILTRATION SYSTEM ASSEMBLY Assemble skimmer, inlet, drain, filter, pumps, hoses according to separate manufacturer’s instructions. Note: See 'Safety Information" Manual. PARTS LIST TOP SEAT UPRIGHT 52’’ TOP PLATE SEAT CAP BOTTOM PLATE BOTTOM TRACK TOP TRACK PLASTIC COUPLER (SOLD SEPARATELY) POOL WALL (Finish lenght, inch) BOLT &NUT FOR 52’’...
  • Page 10: Safety Information

    SAFETY AND FUN GO TOGETHER! SAFETY INFORMATION Read this before installing your above-ground pool. 12 775, Brault Street, Mirabel, Quebec, Canada J7J 0C4 Phone: 1 800 44-TREVI (1 800 448-7384) Fax: 1 866 777-0167...
  • Page 11: General Information

    If you need more stickers or if some are missing, you can ABILITY SHOULD THIS STEP BE OMITTED. order these at info@trevi.ca or by calling 1 800 44TREVI Before installing your pool, you should check local regulations such...
  • Page 12 USAGE SAFETY INFORMATION...
  • Page 13: Instructions D'assemblage

    40306_V3_2021-01-23 INSTRUCTIONS D’ASSEMBLAGE PISCINES RONDES MODÈLE 128-130-178-180 PRÉPARATION DE L’EMPLACEMENT Choisissez l'emplacement idéal pour votre piscine en tenant Plantez un pieu au centre de l'emplacement et, à l'aide d'un ruban à compte des lois municipales sur la distance des clôtures, celles mesurer, tracez un cercle dont le rayon sera de 15 cm à...
  • Page 14 PRÉPARATION DE L’EMPLACEMENT (suite) Tableau * Si vous n’utilisez que du sable, additionnez le tonnage de la poussière de roche à celui du sable. NIVELLEMENT DU TERRAIN Vous devez ensuite niveler le pourtour du cercle à partir de la limite Facultatif de déterrement jusqu'à...
  • Page 15 INSTALLATION DU DRAIN DE FOND (optionnel) Creusez un trou de 30 cm (12") de largeur par environ 25 cm (10") de profondeur en plein centre de la circonférence. Creusez une tranchée d'environ 15 cm (6") de largeur à partir du trou central jusqu'à...
  • Page 16 INSTALLATION DU MUR D’ACIER Déversez le sable. En commencant au centre d'une plaque, insérez le mur d’acier dans Avant de dérouler le mur d’acier, assurez-vous que les orifices la rainure inférieure. Maintenez tout d'abord le mur en place à l'aide prévus pour l'écumoire et le retour d'eau se trouvent bien au haut d'une ou deux barres de soutien ou avec l'aide d'autres personnes.
  • Page 17 INSTALLATION DU MUR D’ACIER (suite) Tableau LONGUEUR RÉELLE DU MUR D’ACIER 3,05 m (10’) 9,60 m (31’ 6") 9,14 m (30’) 28,72 m (94’ 3") FINITION DU FOND Étendez maintenant environ 10 cm (4") de sable à compactage au bas du mur intérieur de façon à former un remblai destiné à protéger MUR D'ACIER la toile des extrémités coupantes des rainures inférieures et de la 30 cm (12")
  • Page 18 INSTALLATION DE LA TOILE DE VINYLE (SUITE) Accrochez la toile sur le sommet du mur et installez la rainure du haut par dessus la toile. RAINURE DU RAINURE DU HAUT HAUT EN EN RÉSINE MÉTAL TOILE AVEC JONC D’ACCROCHAGE (U-BEAD) D'ACIER D'ACIER Amenez la toile par-dessus le sommet du mur en laissant excéder...
  • Page 19 INSTALLATION DE LA PLAQUE DU HAUT PLAQUE Déposez les plaques du haut sur les parties supérieures des DU HAUT poteaux. Maintenez-les en place à l'aide de (2) vis “Z” de chaque coté de la plaque. VIS ‘’Z’’ POTEAU INSTALLATION DES SIÈGES Assurez vous de vérifier la verticalité...
  • Page 20 INSTALLATION DU COUVRE-JOINT Accrochez la base de la lentille de l’extension du couvre-joint rond Accrochez ensuite le couvre-joint sur le rebord intérieur des sièges dans la fente sur le devant du poteau et le haut de l’extension du et l’enclencher sur l’extension du couvre-joint rond. couvre-joint sur la bordure extérieur du siège.
  • Page 21: Liste Des Pièces

    MONTAGE DU SYSTÈME DE FILTRATION Assembler l’écumoire, le drain de fond, le retour d’eau et le système de filtration selon les instructions d’assemblage des manufacturiers. Note : Voir les “Informations de sécurité”. LISTE DES PIÈCES SIÈGE POTEAU 52’’ PLAQUE DU HAUT COUVRE-JOINT DE SIÈGE PLAQUE DU BAS RAINURE DU BAS...
  • Page 22: Consignes De Sécurité

    ET AVANT TOUT PAR LA SÉCURITÉ CONSIGNES DE SÉCURITÉ Veuillez lire ceci avant de procéder à l’installation de votre piscine hors terre. 12 775, rue Brault, Mirabel, Québec, Canada J7J 0C4 Téléphone : 1 800 44-TREVI (1 800 448-7384) Télécopieur : 1 866 777-0167...
  • Page 23: Renseignements Généraux

    Si vous désirez obtenir des autocollants addition- triques sont nécessaires. Il se peut que les règlements de votre lo- nels, vous pouvez en commander à l’adresse INFO@TREVI.CA ou calité exigent que votre piscine soit installée selon certaines marges au 1 800 44TREVI.
  • Page 24 CONSIGNES DE SÉCURITÉ LORS DE L’UTILISATION DE LA PISCINE...
