VESA MOUNTING

The OMI6800B Series offer VESA mounting as an option. VESA 75 x 75mm or VESA 100 x 100mm
threaded inserts, depending on your display size, are located on the rear of the unit. Use the M4 threaded

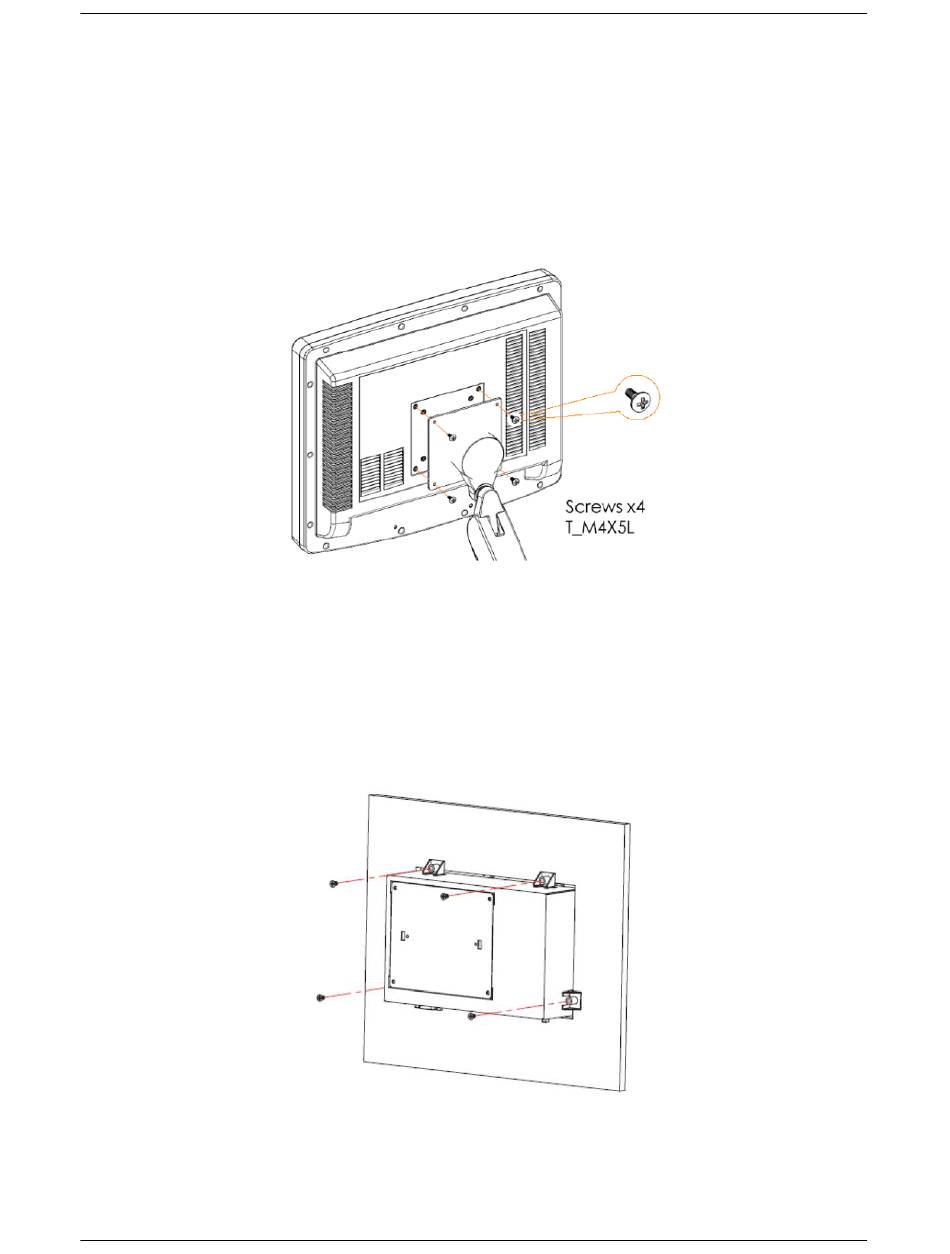

mounting screws included with the VESA mounting hardware to mount the OMI6800B as illustrated in the
figure below.
Use VESA mounting hardware suitable for your intended application; Maple Systems is not responsible
for damage to unit, mounting surface, or to other components, caused by improper mounting.

PANEL MOUNTING

In addition to VESA mounting, your OMI6800B Series can be mounted in a panel using the mounting
holes located on the sides and top of the unit. Use the included clamps to fasten your OMI6800B Series
unit to a panel, cut out to the proper dimensions on the datasheet corresponding to your display size.
Tighten the nuts no more than 5.1 inch/lbs. to ensure an adequate seal. Excessive torque may negate
NEMA or IP rating, or cause damage to the unit or panel.
Maple Systems is not responsible for damage to unit, mounting surface, or to other components, caused
by improper mounting.
Note: The image above is a representative image of the panel mounting process; your specific OMI6800B
Series unit may differ in appearance, but mounting is functionally similar.
