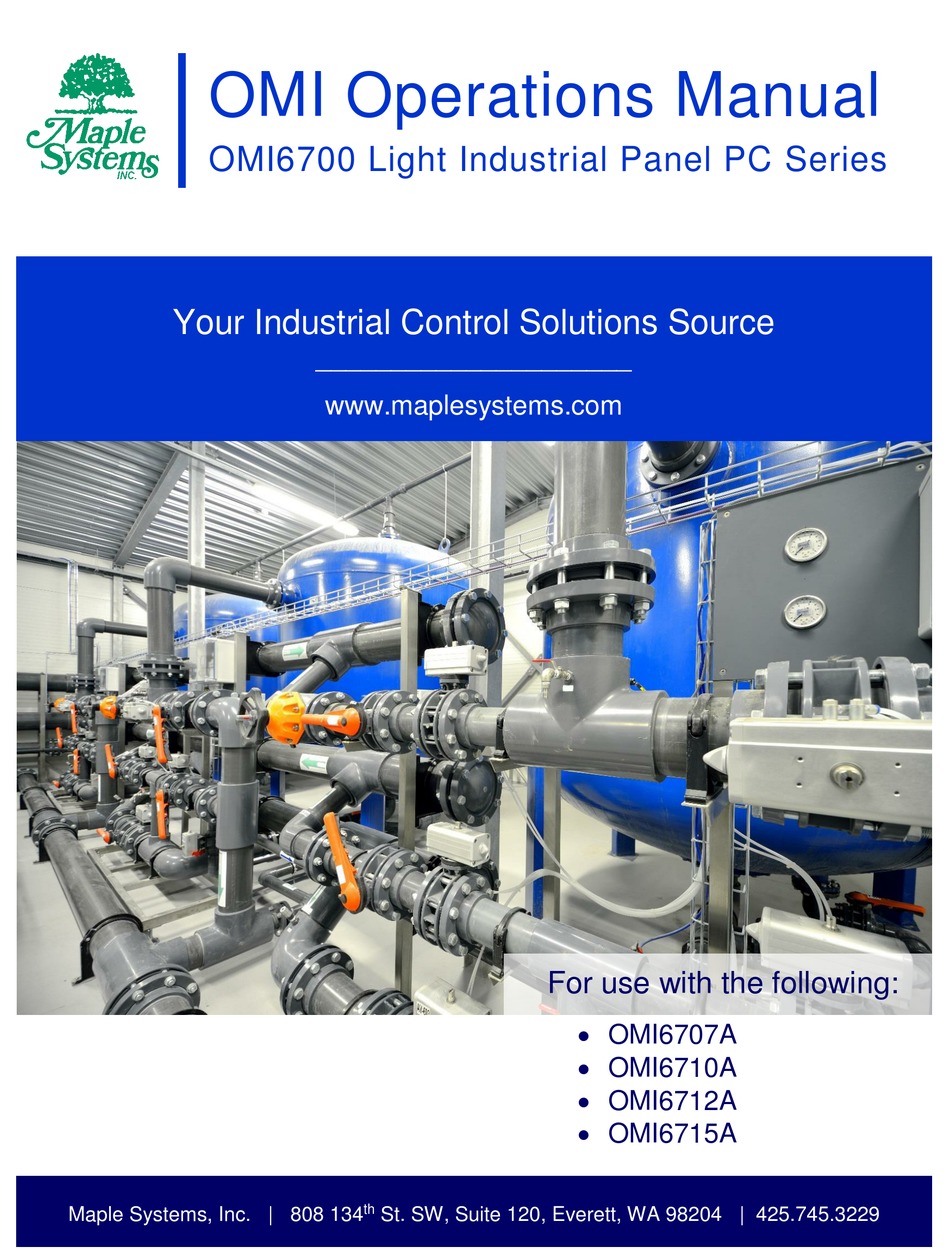

OMI Operations Manual
OMI6700 Light Industrial Panel PC Series
Your Industrial Control Solutions Source
Maple Systems, Inc. | 808 134
_____________________
www.maplesystems.com
th
St. SW, Suite 120, Everett, WA 98204 | 425.745.3229
For use with the following:
OMI6707A
OMI6710A
OMI6712A
OMI6715A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maple Systems OMI6700 Series
Summary of Contents for Maple Systems OMI6700 Series
- Page 1 OMI6700 Light Industrial Panel PC Series Your Industrial Control Solutions Source _____________________ www.maplesystems.com For use with the following: OMI6707A OMI6710A OMI6712A OMI6715A Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229...
-
Page 2: Table Of Contents
OMI Operations Manual: OMI6700 Series TABLE OF CONTENTS TABLE OF CONTENTS ......................2 COPYRIGHT NOTICE ....................... 3 WARRANTY ..........................3 TECHNICAL SUPPORT ......................3 UNPACKING THE UNIT ......................4 SAFETY PRECAUTIONS ......................5 DIMENSIONS AND SPECIFICATIONS ..................6 OMI6707A Dimensions ......................6 OMI6707A Specifications ....................... -
Page 3: Copyright Notice
OMI Operations Manual: OMI6700 Series COPYRIGHT NOTICE This manual is a publication of Maple Systems, Inc., and is provided for use by its customers only. The contents of the manual are copyrighted by Maple Systems, Inc.; reproduction in whole or in part, for use other than in support of Maple Systems equipment, is prohibited without the specific written permission of Maple Systems. -
Page 4: Unpacking The Unit
Carefully unpack the OMI6700. Check all material in the container against the packing list. Maple Systems will not accept responsibility for shortages against the packing list unless notified within 30 days. The equipment and accessories were inspected and tested by Maple Systems before shipment. -
Page 5: Safety Precautions
OMI Operations Manual: OMI6700 Series SAFETY PRECAUTIONS Please observe the following precautions when installing the OMI6700 Series Open HMIs. Failure to comply with these restrictions could result in loss of life, serious personal injury, or equipment damage. Warning: Disconnect this equipment from any power before cleaning. Do not use liquid or spray detergents for cleaning. -
Page 6: Dimensions And Specifications
OMI Operations Manual: OMI6700 Series DIMENSIONS AND SPECIFICATIONS The following section contains the Dimensions and Specifications for the OMI6700 series Light Industrial Panel PCs. OMI6707A Dimensions Top View Front View Side View 7.95” 0.24 1.30 [6.0] [33.0] [202.0] Rear View... -
Page 7: Omi6707A Specifications
OMI Operations Manual: OMI6700 Series OMI6707A Specifications Intel Atom Cedar View N2600 1.6 GHz Dual Core processor System System Chipset Intel NM10 System Memory Onboard DDR3 2 GB 800 MHz USB 2.0 type A x 2 COM1: RS-232/422/485 DE-9P (default RS-232) -
Page 8: Omi6710A Dimensions
OMI Operations Manual: OMI6700 Series OMI6710A Dimensions Top View Front View Side View 11.22 0.28 1.65 [285.0] [7.0] [41.9] Rear View Cutout Dimensions IMPORTANT Dimensions shown are estimates, and may not work with your mounting scheme. We recommend measuring your actual cutout dimensions for a proper fit. -
Page 9: Omi6710A Specifications
OMI Operations Manual: OMI6700 Series OMI6710A Specifications Intel Atom Cedar View N2600 1.6 GHz Dual Core processor System System Chipset Intel NM10 System Memory Onboard DDR3 2 GB 800 MHz USB 2.0 type A x 2 COM1: RS-232/422/485 DE-9P (default RS-232) -
Page 10: Omi6712A Dimensions
OMI Operations Manual: OMI6700 Series OMI6712A Dimensions Top View Front View Side View 0.33 1.70 12.56 [319.0] [8.4] [43.3] Rear View Cutout Dimensions IMPORTANT Dimensions shown are estimates, and may not work with your mounting scheme. We recommend measuring your actual cutout dimensions for a proper fit. -
Page 11: Omi6712A Specifications
OMI Operations Manual: OMI6700 Series OMI6712A Specifications Intel Atom Cedar View N2600 1.6 GHz Dual Core processor System System Chipset Intel NM10 System Memory Onboard DDR3 2 GB 800 MHz USB 2.0 type A x 2 COM1: RS-232/422/485 DE-9P (default RS-232) -
Page 12: Omi6715A Dimensions
OMI Operations Manual: OMI6700 Series OMI6715A Dimensions Top View Front View Side View 16.14 0.33 1.82 [410.0] [8.4] [46.3] Rear View Cutout Dimensions IMPORTANT Dimensions shown are estimates, and may not work with your mounting scheme. We recommend measuring your actual cutout dimensions for a proper fit. -
Page 13: Omi6715A Specifications
OMI Operations Manual: OMI6700 Series OMI6715A Specifications Intel Atom Cedar View N2600 1.6 GHz Dual Core processor System Intel NM10 System Chipset System Memory Onboard DDR3 2 GB 800 MHz USB 2.0 type A x 2 COM1: RS-232/422/485 DE-9P (default RS-232) -
Page 14: Overview Of Omi6700 Series
OMI Operations Manual: OMI6700 Series OVERVIEW OF OMI6700 SERIES The OMI6700 Series is available in 7”, 10.1”, 12.1”, and 15” screen sizes. The OMI6700 is fanless and compact with a flat panel touch screen, and is powered by the Intel Atom N2600 1.6 GHz dual-core processor with built-in 2GB DDR3 800MHz. - Page 15 OMI Operations Manual: OMI6700 Series Rear View of OMI6707 Rear View of OMI6710 OMI Operations Manual: OMI6700 Series...
- Page 16 OMI Operations Manual: OMI6700 Series Rear View of OMI6712 Rear View of OMI6715 OMI Operations Manual: OMI6700 Series...
-
Page 17: I/O Ports
OMI Operations Manual: OMI6700 Series I/O PORTS COM1 and COM2: Connector Type: DE9P male serial ports. COM1* COM2 Pin # (RS-232 Default) (RS422) (RS485) (RS232) 422_RX+ 422_RX- 422_TX- 485- 422_TX+ 485+ * Refer to “Setting COM1 Function” to set the communication mode. -
Page 18: Usb
OMI Operations Manual: OMI6700 Series USB: OMI6700 models have 2 ea USB 2.0 type A port. Note: USB 2.0 allows data transfers up to 480 Mb/s, full-speed, and low-speed signaling. The current limit is 1.5A LAN1 and LAN2: Standard 10/100/1000M RJ-45 Ethernet ports, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of the network. -
Page 19: Setting Com1 Function
OMI Operations Manual: OMI6700 Series SETTING COM1 FUNCTION 1. Using a #1 Phillips screwdriver, remove the 2 Phillips screws indicated in the figure. 2. Remove the storage cover by lifting it out of the unit. 3. Using a #1 Phillips screwdriver, remove the 1 screw retaining the storage bracket. - Page 20 OMI Operations Manual: OMI6700 Series 8. Enter the BIOS Setup Utility to select the desired communication mode by pressing [Delete] key during POST. The Main menu containing the system summary information will appear. 9. Set the “UART Mode Selection” to the...
- Page 21 OMI Operations Manual: OMI6700 Series SD Card installation 1. Using a #1 Phillips screwdriver, remove the 2 Phillips screws indicated in the figure. 2. Remove the storage cover by lifting it out of the unit. 3. Using a #1 Phillips screwdriver, remove Not applicable the 1 screw retaining the storage bracket.
-
Page 22: Vesa Mounting
OMI Operations Manual: OMI6700 Series VESA MOUNTING The OMI6700 series is designed to be VESA mounted. Use the screws included with the VESA mounting hardware to mount the OMI6700 as illustrated in the figure below. PANEL MOUNTING The OMI is also designed to be mounted in a panel using the mounting holes located on the sides and top of the unit. -
Page 23: Operating System Options
Windows 7 image. It is the standard operating system supplied with the OMI6700 series HMIs. Most applications that are built for Windows 7 Pro will run on Windows Embedded Standard Windows 7 Pro is the same operating system that would be installed on a typical PC. -
Page 24: Installation Of Drivers
OMI Operations Manual: OMI6700 Series INSTALLATION OF DRIVERS This section only applies to the OMI6700 models with Windows 7 Pro operating system. The OMI6700 models ship with the operating system and the following drivers preinstalled: Intel chipset driver Audio driver ... - Page 25 OMI Operations Manual: OMI6700 Series 2. Read the license agreement. Click “Yes” to accept all of the terms of the license agreement. 3. Click “Next” to continue. 4. Click “Next”. OMI Operations Manual: OMI6700 Series...
-
Page 26: Vga Driver
OMI Operations Manual: OMI6700 Series 5. Select “Yes, I want to restart this computer now.” Click “Finish”. VGA Driver 1. Open the following file: Drivers\Graphic\Win7_1089.exe. Click “Next”. 2. Read license agreement and Click “Yes”. OMI Operations Manual: OMI6700 Series... - Page 27 OMI Operations Manual: OMI6700 Series 3. Click “Next”. 4. Click “Next”. 5. Select “Yes, I want to restart this computer now.” Click “Finish”. OMI Operations Manual: OMI6700 Series...
-
Page 28: Lan Driver
OMI Operations Manual: OMI6700 Series LAN Driver Note: Due to the small screen size of the OMI6707, part of the window that allows you to make your selection with a mouse or touch is hidden. Attach a USB keyboard and press enter for each step to select the default selection (Next, Install and Finish) as shown in the illustrations below. -
Page 29: Audio Driver
OMI Operations Manual: OMI6700 Series 3. Click “Finish” to exist the wizard. Audio Driver 1. Open the following file: Drivers\Audio\ Vista_Win7_R268.exe Click “Next” to continue. 2. Select “Yes, I want to restart this computer now.” Click “Finish”. OMI Operations Manual: OMI6700 Series... -
Page 30: Touch Screen Driver
OMI Operations Manual: OMI6700 Series Touch Screen Driver 1. Open the following file: Drivers\Touch Driver\PenMount Windows Universal Driver V2.4.0.306(WHQL)\Setup.exe Click “Next” to continue. 2. Read license agreement. Click “I Agree”. 3. Choose the folder in which to install PenMount Windows Universal Driver. - Page 31 OMI Operations Manual: OMI6700 Series 4. Click “Yes”. 5. Click “Finish” to complete installation. OMI Operations Manual: OMI6700 Series...
-
Page 32: Touch Screen
OMI Operations Manual: OMI6700 Series TOUCH SCREEN The OMI6700 Series includes an analog resistive touch screen. An application is pre- loaded onto your OMI6700 Series which allows you to calibrate and change the settings of the touch screen. Touch Screen Calibration The touch screen may need to be recalibrated from time-to-time. -
Page 33: Touch Screen Settings
OMI Operations Manual: OMI6700 Series 3. For Standard Calibration: Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. -
Page 34: Touch Screen Edge Compensation
OMI Operations Manual: OMI6700 Series 2. Beep Mode: Enable Beep Sound – turns beep function on and off Beep on Pen Down – beep occurs when pen comes down Beep on Pen Up – beep occurs when pen is lifted up ... - Page 35 OMI Operations Manual: OMI6700 Series Your Industrial Control Solutions Source _____________________ www.maplesystems.com 1010-1034 Rev. 04 Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229 OMI Operations Manual: OMI6700 Series...
