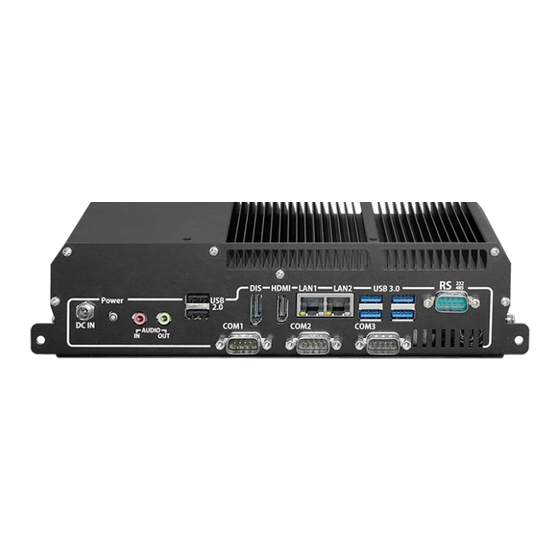

Industrial Panel PC
-
Operations Manual
PC1000 Series
Your Industrial Control Solutions Source
Maple Systems, Inc. | 808 134
_____________________
www.maplesystems.com
th
St. SW, Suite 120, Everett, WA 98204 | 425.745.3229
For use with the following:
• PC1200 Series Panel PC
• PC1300 Series Panel PC
Advertisement
Table of Contents
Related Manuals for Maple Systems PC1000 Series
Summary of Contents for Maple Systems PC1000 Series
- Page 1 Operations Manual PC1000 Series Your Industrial Control Solutions Source _____________________ www.maplesystems.com For use with the following: • PC1200 Series Panel PC • PC1300 Series Panel PC Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229...
-
Page 2: Table Of Contents
Panel PC Operations Manual: PC1000 Series TABLE OF CONTENTS TABLE OF CONTENTS..................2 COPYRIGHT NOTICE ..................3 WARRANTY ....................3 TECHNICAL SUPPORT ..................3 UNPACKING THE UNIT ..................3 SAFETY PRECAUTIONS ..................4 OVERVIEW OF PC1000 SERIES ................5 PANEL PC MOUNTING OPTIONS..............6 PANEL MOUNTING .................. -
Page 3: Copyright Notice
Panel PC Operations Manual: PC1000 Series COPYRIGHT NOTICE This manual is a publication of Maple Systems, Inc., and is provided for use by its customers only. The contents of the manual are copyrighted by Maple Systems, Inc.; reproduction in whole or in part, for use other than in support of Maple Systems equipment is prohibited without the specific written permission of Maple Systems. -
Page 4: Safety Precautions
Panel PC Operations Manual: PC1000 Series SAFETY PRECAUTIONS Please observe the following precautions when installing the PC1000 Series. Failure to comply with these restrictions could result in loss of life, serious personal injury, or equipment damage. Warning: Disconnect this equipment from any power before cleaning. Do not use liquid or spray detergents for cleaning. -
Page 5: Overview Of Pc1000 Series
Panel PC Operations Manual: PC1000 Series OVERVIEW OF PC1000 SERIES PC1000 Series Panel PC units are industrial, heavy duty fanless PCs available in two sub-categories: PC1200 Series and PC1300 Series. Display sizes range from 10.4 ~ 21.5”. All PC1000 Panel PCs feature Projected Capacitive Touch Screens, which allow for a more natural, intuitive user touch experience compared to traditional analog-resistive touch screen terminals. -
Page 6: Panel Pc Mounting Options
Note: 10.4” Monitor Panel Mounting example shown. Actual Product differs from picture. VESA MOUNTING In addition to panel mounting, the PC1000 Series Panel PCs offer VESA 100 mounting as an option. VESA 100 x 100 mm threaded inserts are located on the rear of the unit. Use M4 threaded mounting screws to attach your VESA mounting bracket (not provided by Maple Systems) to the Panel PC. -
Page 7: Specifications And Dimensions - Pc1200 Series
Microsoft Windows© 10 IoT Enterprise Embedded 2019 LTSC 64-bit (EPKEA) Microsoft Windows Options Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) System Specifications subject to change without notice. Notes * Additional SSD options available; contact Maple Systems for details Panel PC Operations Manual: PC1000 Series... - Page 8 Panel PC Operations Manual: PC1000 Series PC1210 DIMENSIONS Solid State Drive Bay USB 3.0 Host Ports VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector HDMI ® Output Illuminated Power Button COM Port DE9P (RS232/RS422/RS485 Configurable) 3.5mm Audio Ports (Mic-In / Line Out) Thumb-Screw Mounting USB 2.0 Host Ports...
- Page 9 Panel PC Operations Manual: PC1000 Series PC1212 DIMENSIONS Solid State Drive Bay USB 3.0 Host Ports VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector HDMI ® Output Illuminated Power Button COM Port DE9P (RS232/RS422/RS485 Configurable) 3.5mm Audio Ports (Mic-In / Line Out) Thumb-Screw Mounting USB 2.0 Host Ports...
- Page 10 Panel PC Operations Manual: PC1000 Series PC1215 DIMENSIONS Solid State Drive Bay USB 3.0 Host Ports VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector HDMI ® Output Illuminated Power Button COM Port DE9P (RS232/RS422/RS485 Configurable) 3.5mm Audio Ports (Mic-In / Line Out) Thumb-Screw Mounting USB 2.0 Host Ports...
- Page 11 Panel PC Operations Manual: PC1000 Series PC1221 DIMENSIONS Solid State Drive Bay USB 3.0 Host Ports VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector HDMI ® Output Illuminated Power Button COM Port DE9P (RS232/RS422/RS485 Configurable) 3.5mm Audio Ports (Mic-In / Line Out) Thumb-Screw Mounting USB 2.0 Host Ports...
-
Page 12: Specifications And Dimensions - Pc1300 Series
Microsoft Windows© 10 IoT Enterprise Embedded 2019 LTSC 64-bit (EPKEA) Microsoft Windows Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) System Options Specifications subject to change without notice. Notes * Additional SSD options available; contact Maple Systems for details Panel PC Operations Manual: PC1000 Series... - Page 13 Panel PC Operations Manual: PC1000 Series PC1310 DIMENSIONS Solid State Drive Bay HDMI ® Output VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector COM Ports DE9P (RS232) Illuminated Power Button USB 3.0 Host Ports 3.5mm Audio Ports (Mic-In / Line Out) COM Port DE9P (RS232/RS422/RS485 Configurable) USB 2.0 Host Ports...
- Page 14 Panel PC Operations Manual: PC1000 Series PC1312 DIMENSIONS Solid State Drive Bay HDMI ® Output VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector COM Ports DE9P (RS232) Illuminated Power Button USB 3.0 Host Ports 3.5mm Audio Ports (Mic-In / Line Out) COM Port DE9P (RS232/RS422/RS485 Configurable) USB 2.0 Host Ports...
- Page 15 Panel PC Operations Manual: PC1000 Series PC1315 DIMENSIONS Solid State Drive Bay HDMI ® Output VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector COM Ports DE9P (RS232) Illuminated Power Button USB 3.0 Host Ports 3.5mm Audio Ports (Mic-In / Line Out) COM Port DE9P (RS232/RS422/RS485 Configurable) USB 2.0 Host Ports...
- Page 16 Panel PC Operations Manual: PC1000 Series PC1321 DIMENSIONS Solid State Drive Bay HDMI ® Output VESA 100 x 100 mounting Gigabit Ethernet Ports DC Input Power Connector COM Ports DE9P (RS232) Illuminated Power Button USB 3.0 Host Ports 3.5mm Audio Ports (Mic-In / Line Out) COM Port DE9P (RS232/RS422/RS485 Configurable) USB 2.0 Host Ports...
-
Page 17: I/O Ports
Connector Type: DisplayPort Interface Connector Socket USB 3.0 All PC1000 Series models have 4 x USB 3.0 Type A Host Ports Note: USB 3.0 allows data transfers up to 5Gb/s, full-speed, and low-speed signaling. The total current output limit is 1.8A per Stacked Hub (0.9A per individual port) USB 2.0... -
Page 18: Lan1 And Lan2
Panel PC Operations Manual: PC1000 Series LAN1 AND LAN2: Connector Type: Standard 10/100/1000M RJ-45 Ethernet ports AUDIO-OUT Connector Type: 3.5mm audio jack output AUDIO-IN Connector Type: 3.5mm audio jack input COM1-COM4: (COM4 only on PC1300 Series) Connector Type: DE9P Male Serial Ports... -
Page 19: Bios Configuration Options
Warning: Selecting the “Restore Defaults” option in the BIOS menu will yield your PC1000 Series unusable and it will need to be returned to Maple Systems for repair. Your PC is optimized for your configuration. As such, the “Restore Defaults” BIOS option should not be selected under any circumstances. -
Page 20: Setting Com1 Function
Panel PC Operations Manual: PC1000 Series SETTING COM1 FUNCTION The PC1000 COM1 Serial Port is configured by default as RS232, but can be configured for RS422 (4-wire) or RS485 (2-wire) operation if so desired. COM1 port configuration is managed through the BIOS;... -
Page 21: Automatically Startup When Power Is Applied (Pc1300 Series)
Panel PC Operations Manual: PC1000 Series AUTOMATICALLY STARTUP WHEN POWER IS APPLIED (PC1300 SERIES) When a Panel PC unit is panel-mounted, the power button becomes inaccessible. There is an option in the PC1300 Series BIOS that allows for the unit to be powered up when DC power is applied. -
Page 22: Installation Of Drivers
Panel PC Operations Manual: PC1000 Series INSTALLATION OF DRIVERS Your PC1000 Series Panel PC comes with all necessary drivers pre-installed. As such, driver installation is not normally needed. However, there may be times when a driver requires re- installation. Use the Support DVD that came with your Panel PC to install all non-Windows Operating System Drivers. -
Page 23: Operating System Options
Media Player WONDERWARE / INDUSOFT WEBSTUDIO All of the PC1000 Series PCs are compatible with Wonderware / Indusoft Web Studio. The choice of operating system will determine the target platform and runtime license required as shown in the chart below:... - Page 24 Your Industrial Control Solutions Source _____________________ www.maplesystems.com 1010-1080 rev 00 Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229...
