THE BOLD LOOK OF KOHLER K-856-AH Roughing-In Manual

Bath whirlpool with spa package
Hide thumbs Also See for K-856-AH:
1
2
3
4

Advertisement

Available languages

Available languages

Quick Links

Download this manual
Roughing-In Guide
Bath Whirlpool
with Spa Package
K-856-AH
M product numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de M corresponden a México (Ej.
K-12345M)
USA: 1-800-4-KOHLER
Français, page 3
Canada: 1-800-964-5590
México: 001-877-680-1310
Español, página 4
kohler.com
1023267-1-D
©2008 Kohler Co.

Advertisement

loading
Need help?

Need help?

Do you have a question about the K-856-AH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for THE BOLD LOOK OF KOHLER K-856-AH

Summary of Contents for THE BOLD LOOK OF KOHLER K-856-AH

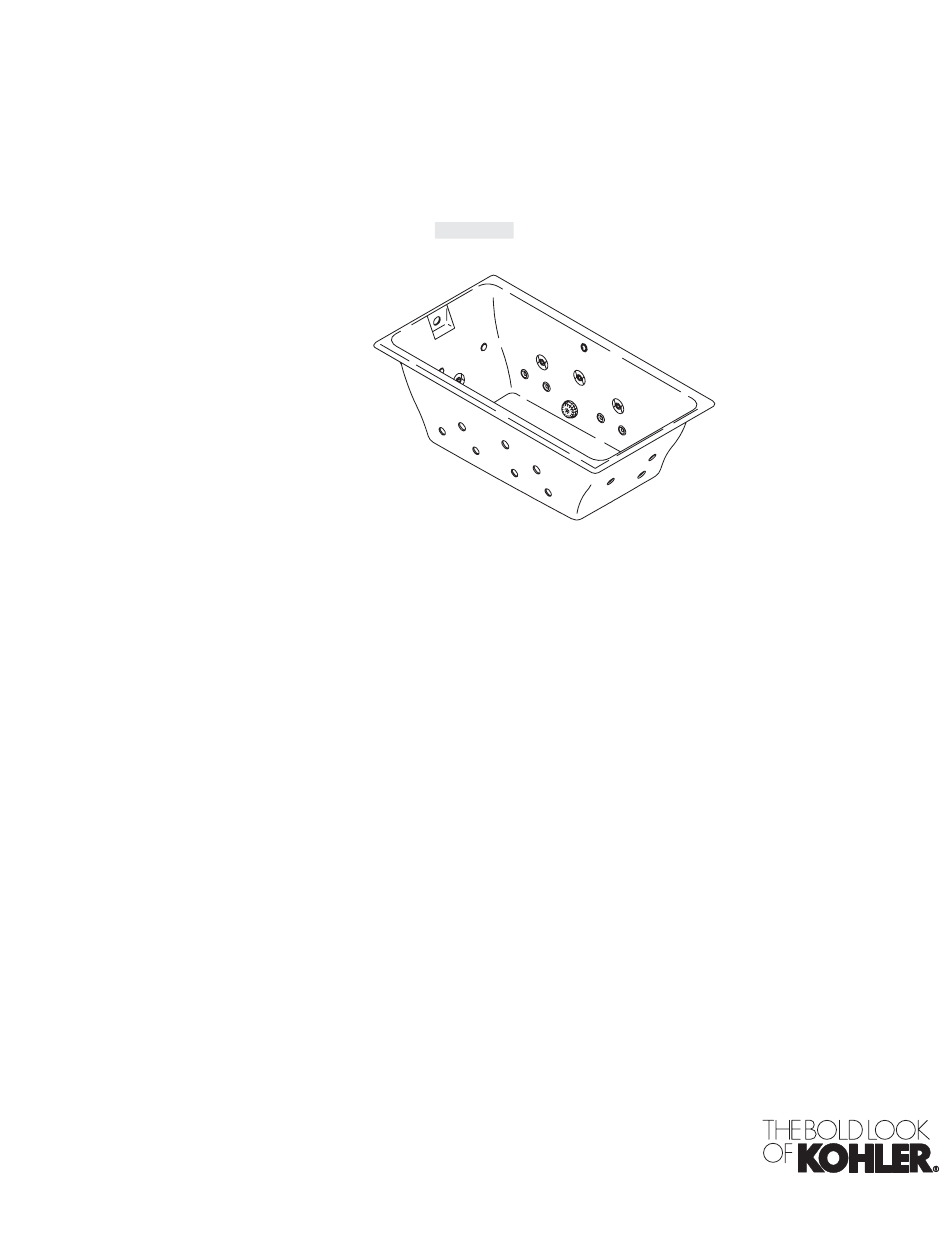

  • Page 1 Roughing-In Guide Bath Whirlpool with Spa Package K-856-AH M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) USA: 1-800-4-KOHLER Français, page 3 Canada: 1-800-964-5590 México: 001-877-680-1310 Español, página 4 kohler.com...
  • Page 2 No change in measurements with drain K-856-AH shown. (K-7147-AF or K-7147M-AF) 18" (45.7 cm) NOTE: Pump/piping protrudes beyond rim. 1-1/2" (3.8 cm) Max Pump/Control Access 15-7/8" (40.3 cm) 34" (86.4 cm) W x 15" (38.1 cm) H Min 66" (167.6 cm) 36"...
  • Page 3 Guide de raccordement Baignoire à hydromassage avec système Spa Aucune modification des mesures n'est K-856-AH nécessaire avec la vidange représentée. (K-7147-AF or K-7147M-AF) Découpe de la retombée 65-1/2" 18" (166,4 cm) x 35-1/2" (90,2 cm) (45,7 cm) Remarque : la pompe/le tuyau dépassent du bord.
  • Page 4 Diagrama de instalación Bañera de hidromasaje con sistema de spa No es necesario cambiar las medidas con el K-856-AH desagüe ilustrado. (K-7147-AF o K-7147M-AF) 18" (45,7 cm) NOTA: La bomba/tubos sobresalen del reborde. 1-1/2" (3,8 cm) máx Acceso a la bomba/control 34"...
