- Page 1 DHR Series and AR Series Starch Pasting Cell Getting Started Guide Revision E Issued November 2013...
- Page 2 TA Instruments may have patents, patent applications, trademarks, copyrights, or other intellectual prop- erty covering subject matter in this document. Except as expressly provided in written license agreement from TA Instruments, the furnishing of this document does not give you any license to these patents, trade- marks, copyrights, or other intellectual property.
-
Page 3: Introduction
Introduction Important: TA Instruments Manual Supplement Please click the TA Manual Supplement link to access the following important information supplemental to this Getting Started Guide: • TA Instruments Trademarks • TA Instruments Patents • Other Trademarks • TA Instruments End-User License Agreement •... -
Page 4: Notes, Cautions, And Warnings
Notes, Cautions, and Warnings This manual uses NOTES, CAUTIONS, and WARNINGS to emphasize important and critical instructions. In the body of the manual these may be found in the shaded box on the outside of the page. NOTE: A NOTE highlights important information about equipment or procedures. CAUTION: A CAUTION emphasizes a procedure that may damage equipment or cause loss of data if not followed correctly. -
Page 5: Electromagnetic Compatibility Standards
Electromagnetic Compatibility Standards For Australia and New Zealand AS/NZS CISPR11:2004 Limits and methods of measurement of electronic disturbance characteristics of industrial, scientific and medical (ISM) radio frequency equipment. For Canada ICES-001 Issue 4 June 2006 Interference-Causing Equipment Standard: Industrial, Scientific, and Medical Radio Frequency Generators. -
Page 6: Safety
Safety Do not attempt to service this cell, as it contains no user-serviceable components. Required Equipment While operating this accessory, you must wear eye protection that either meets or exceeds ANSI Z87.1 standards. Additionally, wear protective clothing that has been approved for protection against the materials under test and the test temperatures. -
Page 7: Table Of Contents
Important: TA Instruments Manual Supplement ........ -
Page 8: Chapter 1: Introducing The Starch Pasting Cell (Spc)

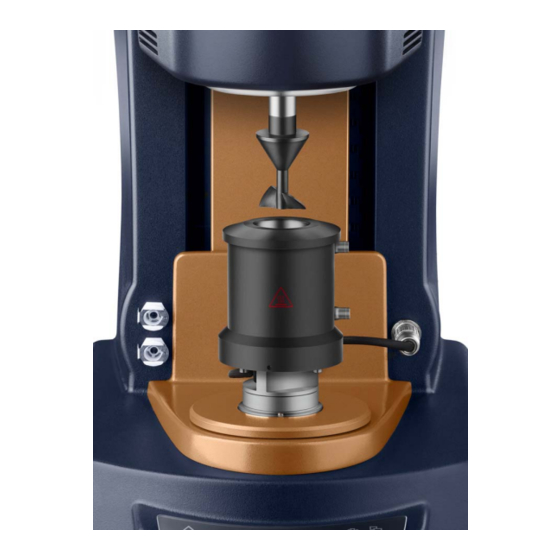

Chapter 1: Introducing the Starch Pasting Cell (SPC) Overview This manual is intended as an addendum to the DHR and AR-G2/AR 2000ex/AR 1500ex Rheometer Getting Started Guides. The Smart Swap™ Starch Pasting Cell (SPC) is designed to measure the viscosity of starch using methods currently in use in the starch industry. -
Page 9: System Components
System Components The SPC consists of four components: • The jacket, which is mounted on the instrument base • The cup, which is removable and inserts into the jacket • The cap, which screws onto the jacket to hold the cup in place •... -
Page 10: Temperature Control
Temperature Control Heating is accomplished through the electrical elements placed within the jacket, concentrically to the cup. The sample is cooled using water carried in a helical conduit in close proximity to the cup outer walls. The cooling water flow is controlled through the Cooling Control Unit (CCU), which is placed upstream of the cup. -
Page 11: Chapter 2: Installing And Setting Up The Spc System
Chapter 2: Installing and Setting Up the SPC System Follow the instructions in this chapter to install and set up the SPC system. Installing the Starch Pasting Cell Follow the instructions below to properly install the SPC on the rheometer. The SPC is a standard Smart Swap™... -
Page 12: Assembling The Starch Cell
Raise the instrument head. Insert the cup into the jacket, as shown below. Figure 6 Inserting the cup into the jacket (DHR Series shown). Screw the cap onto the jacket, as shown below. Figure 7 Fitting the cap onto the jacket (DHR Series shown). -
Page 13: Attaching The Impeller
Attaching the Impeller Install the impeller on the rheometer in the same manner you would any standard geometry. Setting the Geometry Details For information regarding setting up the SPC geometry in TRIOS software, see TRIOS Help topic Creating the Starch Pasting Cell Geometry in TRIOS. DHR/AR Series Starch Pasting Cell Getting Started Guide Page 13... -
Page 14: Connecting The Cooling Control Unit (Ccu)
Connecting the Cooling Control Unit (CCU) The flow of the cooling water and purge air is controlled through a CCU, shown below. This unit may be free standing, or wall mounted using the clearance holes on top of the unit. Figure 8 Cooling Control Unit (CCU). -
Page 15: Setting The Cooling Water Parameters
Connect the GAS/LIQUID outlet port to the upper port on the Starch Cell jacket, using the 4-mm outer diameter tubing with the 4-mm to 6-mm adapter provided. Using the 4-mm outer diameter tubing connect the lower port on the Starch Cell jacket to the drain, if the mains water is the supply, or to the return, if a fluid circulator is used. -
Page 16: Chapter 3: Spc Use And Maintenance
Chapter 3: SPC Use and Maintenance Running an SPC Procedure Perform the following steps to load your sample, run the experiment, then remove the sample: Raise the instrument head to the full back off distance. Remove the Starch Cell cap and cup from the jacket. See Chapter 3 for information, if needed. -
Page 17: Maintaining The Spc
See TRIOS software Online Help for details. Rotational Mapping Rotational mapping is used on the TA Instruments' AR Series Rheometers to ensure optimal performance for very sensitive samples. It should not normally be necessary with the Starch Cell, but may be used if very precise data are required at low angular velocities. -
Page 18: Index
Index cautions 4 connecting 14 CCU cooling water parameters 15 impeller attaching 13 instrument symbols 6 license agreement 3 notes 4 patents 3 Regulatory Compliance 4 safety 6 instrument symbols 6 Safety Standards 4 assembling 12 components 9 installing 11 maintenance 17 overview 8 DHR/AR Series Starch Pasting Cell Getting Started Guide... - Page 19 16 setting up geometry 13 temperature control 10 starch testing of 8 TA Instruments offices 3 temperature control 10 trademarks 3 warnings 4 DHR/AR Series Starch Pasting Cell Getting Started Guide Page 19...
