Summary of Contents for Mecmesin 172100
-
Page 3: Table Of Contents

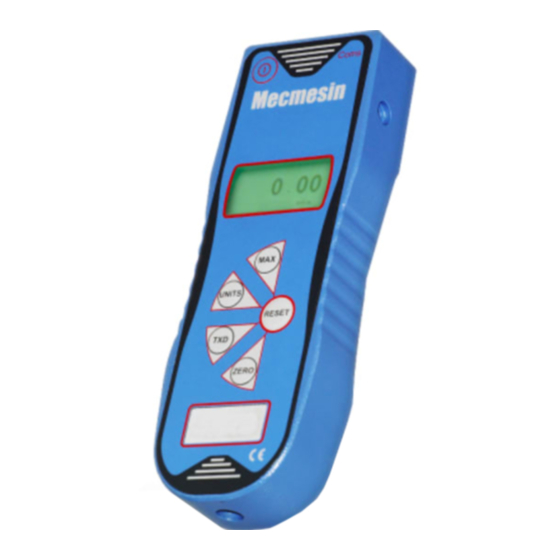

Gauge (BFG) instrument. With correct use and regular re-calibration it will give many years of accurate and reliable service. The Mecmesin BFG is a member of a series of highly versatile display units. By using the latest integrated circuit technology it has been... -
Page 4: Powering The Gauge
Immerse in water Solder anything to the battery terminals Reverse individual cell polarity Use alternative chargers other than those supplied by Mecmesin Use replacement parts other than those supplied by Mecmesin Never dispose of batteries with ‘normal’ refuse. Contact your local Environmental Authority to determine the location of your appropriate disposal facility. -
Page 5: Using The Gauge
Never fit any accessory without first sitting an extension rod. Mounting to a test stand On the rear of the gauge there are two M5 threaded holes, which can be used for mounting the gauge to a Mecmesin test stand. Each Mecmesin test stand is supplied with a dedicated ‘dovetailed mounting bracket’... - Page 6 Should the instrument have sustained a catastrophic overload, the symbol ‘OL’ will be permanently displayed and the instrument must be returned to Mecmesin or an approved Mecmesin distributor for repair. Forces greater than 120% of full-scale will produce an OL symbol which will remain on the display all the time the overload is present.
- Page 7 Zeroing the Gauge During the operation of the gauge it is often necessary to zero the display – e.g. when you wish to tare out the weight of a grip, so it does not become part of the measured reading. Press and release the ZERO key. The display will blink momentarily as the zero operation is carried out.
- Page 8 Max Compression Press the MAX key again and the display will show the maximum compressive force identified by the symbol. Fig. 3b Symbol for compression "Normal" mode Press the MAX key again and the display will show the current load applied to the loadcell in either direction, maintaining a “running”...
- Page 9 Data Output The BFG has RS232, Mitutoyo and analogue output signals. It is possible to transmit the displayed reading to peripheral devices (e.g. PC, printer) by pressing and releasing the TXD key. Displayed readings can also be requested individually from a BFG uses 9600 Baud 8 data PC via the RS232 interface by sending a "?"...
-
Page 10: Optional Settings
Optional Settings through Dual Function keys Auto-off To conserve battery power, it is possible to activate an Auto- off function so that the gauge powers down after 5 minutes since the last key press or remote request or load change greater than 2% of full scale. - Page 11 An overload is registered when the load exceeds120% of the rated capacity. Removing recorded overloads can only be undertaken by Mecmesin or an approved Mecmesin distributor. Page 9...
-
Page 12: Dimensions
Dimensions (in millimetres) Front view Side view CHARGER SOCKET OPTIONAL DOVETAIL BRACKET FOR MOUNTING ON TEST STANDS MAXIMUM SIZE SCREWS = M5X10 SOCKET CAP HEAD SCREW INTERNAL LOADCELL STUD MALE THREAD EXTENSION ROD MALE THREAD = 10/32UNF D-TYPE FEMALE = M6 (10N - 1000N) (10-1000N MODELS) COMMUNICATION CONNECTOR 22.5... -
Page 13: Bfg Specification Table
±1V approx. for full scale tension/compression If you have any feedback regarding Mecmesin, its products and services, which you would like to share with us, please contact us at f f e e e e d d b b a a c c k k @ @ m m e e c c m m e e s s i i n n . . c c o o m m... - Page 14 MultiTest The MultiTest 1 is a budget-priced, potentiometer- controlled test stand with 1000 newton capacity. When used with a Mecmesin force gauge and appropriate fixtures this system is ideal for relatively straightforward testing applications; the force gauge captures maximum tensile and compressive loads.
- Page 15 However, a Vortex- will enable complete control of the test procedure, analysis and reporting by using a new torque version of Mecmesin’s powerful, flexible and user-friendly Emperor software. Interface Cables BFG to RS232 9-way for PC, dataloggers - part no: 351-054...
- Page 16 Newton House Spring Copse Business Park Slinfold West Sussex RH13 0SZ England General Enquiries: +44 (0) 1403 799979 +44 (0) 1403 799975 Service & Calibration +44 (0) 1403 799920 +44 (0) 1403 799925 www.mecmesin.com info@mecmesin.com...
