Summary of Contents for Mecmesin CAPTEST

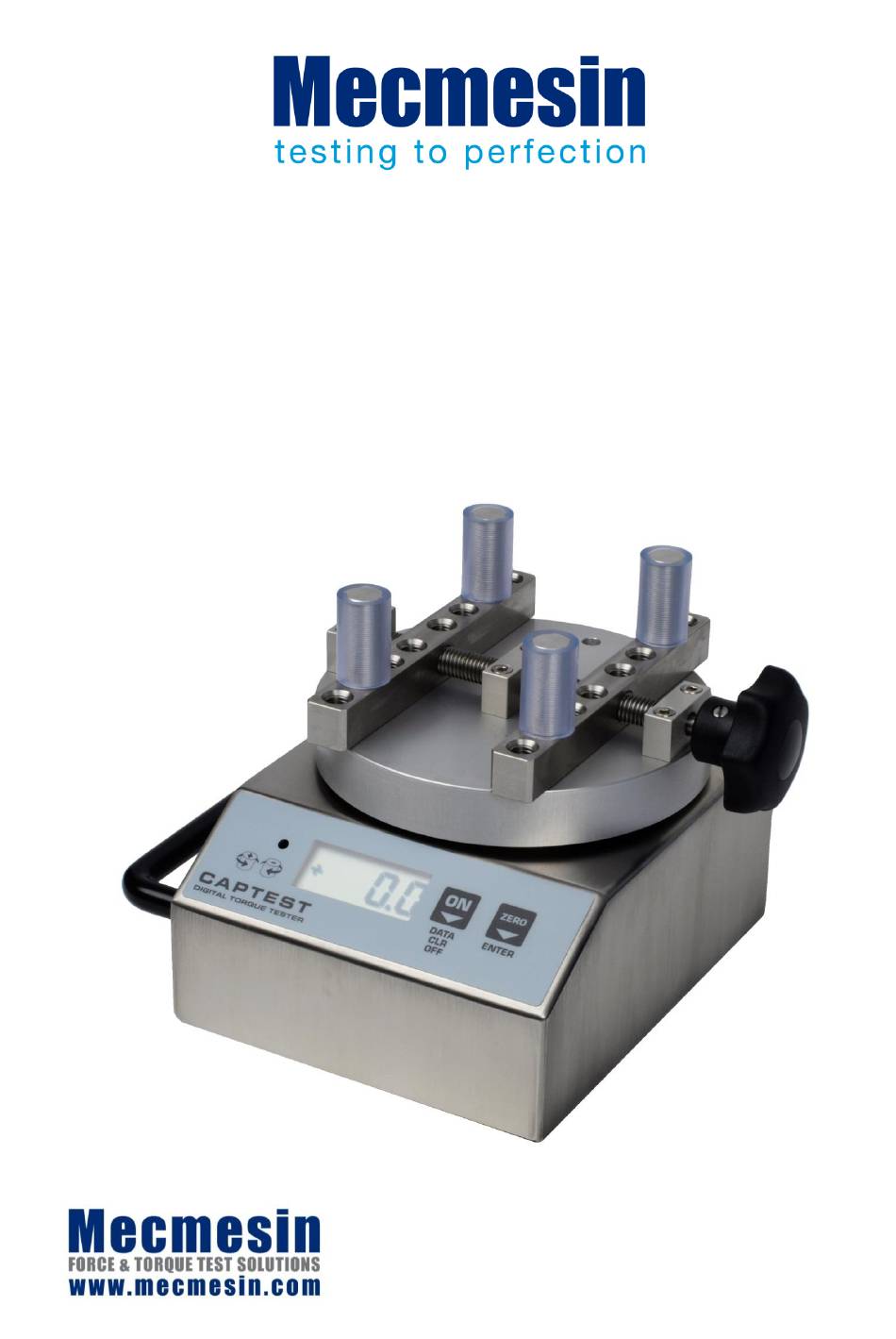

- Page 1 C A P T E S T DIGITAL TORQUE TESTER Operator Manual and Technical Data 431-434-02 May 2019...
- Page 2 Company, Germany. ‘Mitutoyo’ and ‘DIGIMATIC’ are registered trademarks of Mitutoyo Company, Japan. ‘EPSON’ is a registered trademark of EPSON America Inc. 2019 © Mecmesin Ltd, supplied with Mecmesin test systems and not for redistribution Part no. 431-434-02 ii Mecmesin...
-
Page 3: Table Of Contents
Contents The CAPTEST Digital Torque Tester General Operating Instructions Before using Battery management Interfaces Overload Maintenance, cleaning, repair Calibration Safety issues Waste disposal Using your CAPTEST Switch on Test: opening a closure Test: closing a closure Clear the current reading... - Page 4 Mecmesin CAPTEST Operator Manual...
-
Page 5: The Captest Digital Torque Tester
The CAPTEST Digital Torque Tester CAPTEST is used to measure and record the torque required for the opening and closing of screw-caps. CAPTEST stores up to 240 readings. The stored data can be sent to the display or to a data printer (e.g. EPSON P40) connected to the serial RS232 port. - Page 6 2 Mecmesin CAPTEST Operator Manual...
-
Page 7: General Operating Instructions
When the maximum operating time is reached, the symbol ‘BAT’ is displayed. Please charge your CAPTEST as soon as possible as described above. If you continue using the device without loading, it will switch off automatically shortly afterwards in order to prevent the battery from low-level discharge. -
Page 8: Overload
CAPTEST are switched off before connecting. RS-232 protocol: 9600 baud, 8 bit, 1 stop-bit, no parity, no handshake Overload CAPTEST is overload-protected by a mechanical end stop. This protection prevents the internal sensor from being damaged. -
Page 9: Safety Issues
‘~’. Now you can apply a well-known torque and check the reading. Safety issues CAPTEST works with low-level voltages. In normal use there is no risk of electric shock. The splashproof housing normally prevents fluids from penetrating, but it should not be exposed to jets of water or immersed, or the electronics may be damaged. -
Page 10: Using Your Captest
Using your CAPTEST Instructions can also be found on the underside of the instrument. Switch on Device is ready for testing Test: opening a closure Peak value of applied anticlockwise torque Test: closing a closure Peak value of applied clockwise torque... -
Page 11: Print The Current Reading
Blank display, device is off If the tester is not operated for a period of 2 minutes, the tester automatically switches off. Return to test mode Operation is resumed Press to cancel switching off. Mecmesin 7 CAPTEST Operator Manual... -
Page 12: Using A Mitutoyo Mini-Processor
CAPTEST and the DP-1 VR, so it is not necessary to transmit complete CAPTEST data to DP-1 VR at the end of a batch for the purpose of later analysis. 8 Mecmesin... -
Page 13: Switching Off
Note: If you do not want to print CAPTEST data each time it is sent, but only to have statistical analysis data at the end of a test batch, disable printing using the [Printer] key. CAPTEST data will still be stored. -
Page 14: Technical Data
2000 m temperature 5 to 40°C max. rel. humidity: 80% up to 31°C, by linear decrease to 50% at 40°C Dimensions width 180 mm, height 150 mm, depth 170 mm Weight 2.3 kg 10 Mecmesin CAPTEST Operator Manual... -
Page 15: Configuring Captest Settings
Configuring CAPTEST Settings Settings for the CAPTEST are available from the configuration menu, and are not intended for the regular user to access. Please note the following: The settings you make are not visible from the display (e.g. there is no indication of units) ... - Page 16 ~ 2 sec < 1 sec Measurement threshold for peak value recognition 0.14 N.m (1.2 lbf.in) 0.07 N.m (0.6 lbf.in) Auto-off function Au0 off Au1 on Minus sign in the data output S– shows hidden 12 Mecmesin CAPTEST Operator Manual...
-
Page 17: Ce Declaration Of Conformity
EN 61000-6-1-2-3-4:2007 in accordance to the directive 2006/95/EC (electromagnetic compatibility) EN 61010-6-1 Safety requirements for electrical equipment for measurement in accordance to the directive 73/23/EEC (low voltage directive) Freiburg, 17.10.2007 ....................... Mecmesin 13 CAPTEST Operator Manual... - Page 20 Mecmesin : a world leader in affordable force and torque testing solutions Since 1977, Mecmesin has assisted thousands of companies achieve enhanced quality control in design and production. The Mecmesin brand represents excellence in accuracy, build, service, and value. In production centres and research labs worldwide, designers, engineers, operators, and quality managers endorse Mecmesin force and torque testing systems for their high performance across countless applications.
